IS215VCMIH2BB 总线主控制器板  I/O 板之间的通信

【产品详情】

IS215VCMIH2B是通用电气制造的Mark VI系统的电路板组件。 MKVI是GE以“Speedtronic”名称发布的最终蒸汽和气体管理系统之一。该生产线专注于使用良好的设计和多个备份来创建可靠的管理系统，从而提高相关涡轮机的效率。

IS215VCMIH2B用作 VME 总线主控制器板。该板设计用于连接控制器和 I/O 板之间的通信。IS215VCMIH2B还管理机架内板和相关端子板的 ID。VCMI板有两个主要版本（VCMIH1/VCMIH2）。

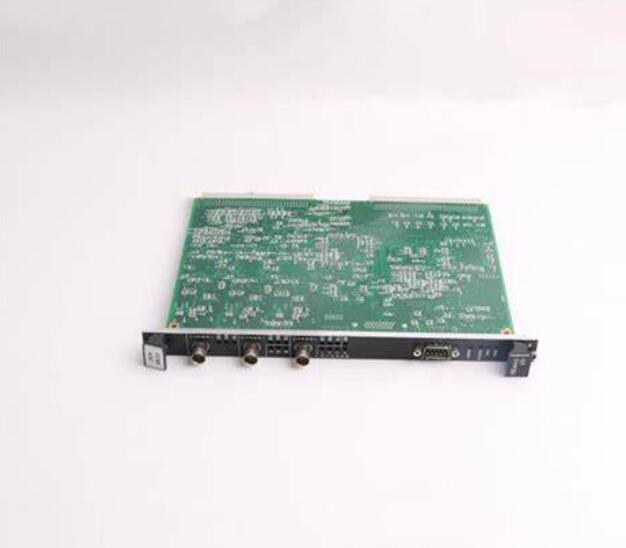

IS215VCMIH2B在其前面板上有四个端口连接。这包括一个串行端口和三个 IONet 连接器。每个 IONet 连接器上方都放置了三个 LED 指示灯。这些标记为“TX”、“RX”和“CD”。该板还具有标有运行/失败/状态的 LED 指示灯（位于按钮复位开关上方）和四个标有 1、2、4 和 8 的 LED。面板使用螺钉连接到主板。

IS215VCMIH2B是一个 6U 高的 VME 板，宽 .0787 英寸。它具有德州仪器的32位数字信号处理器和32位传输配置SRAM，256k x 32。该板有两个背板，一个 12 针垂直公连接器 （p5，） 和几个由导电点制成的连接器。该板使用集成电路、电阻器、电容器和二极管。前缘附近有三个变压器。该板有几个变压器和四十多个电感磁珠。

IS215VCMIH2BB 总线主控制器板  I/O 板之间的通信

【英文介绍】

The IS215VCMIH2B is a circuit board component for the Mark VI system manufactured by General Electric. MKVI is one of the final steam and gas management systems released by GE under the name Speedtronic. The line focuses on using good design and multiple backups to create a reliable management system that improves the efficiency of the associated turbines.

IS215VCMIH2B is used as the VME bus master controller board. The board is designed to connect the communication between the controller and the I/O board. The IS215VCMIH2B also manages the ID of the rack inner board and associated terminal board. There are two main versions of the VCMI board (VCMIH1/VCMIH2).

The IS215VCMIH2B has four ports connected on its front panel. This includes a serial port and three IONet connectors. Three LED indicators are placed above each IONet connector. These are labeled "TX," "RX," and "CD." The board also has LED indicators labeled Run/Fail/status (located above the button reset switch) and four leds labeled 1, 2, 4, and 8. The panel is attached to the motherboard using screws.

The IS215VCMIH2B is a 6U high VME board with a width of.0787 inches. It features Texas Instruments' 32-bit digital signal processor and 32-bit transmission configuration SRAM, 256k x 32. The board has two backplanes, a 12-pin vertical male connector (p5,) and several connectors made of conductive points. The board uses integrated circuits, resistors, capacitors and diodes. There are three transformers near the leading edge. The board has several transformers and more than forty inductive magnetic beads.

IS215VCMIH2BB 总线主控制器板  I/O 板之间的通信
