IC800SSI216 GE 伺服电机控制器 180-250VAC 3 相输入

IC800SSI216RD2设计用于特定系列的电机。这包括MTR-3S45-H、MTR-3S46H、MTR-3S63-G、MTR-3S65-G、MTR-3S67-G、MTR-3T45-1、MTR-3T54-H和MTR-3T55-H。这些电机的连续失速扭矩范围为32至150.3英寸-磅,额定转速范围为1,400至5,300转/分。具体信息请参考GE数据表。

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

IC800SSI216 GE  伺服电机控制器 180-250VAC 3 相输入




【产品详情】

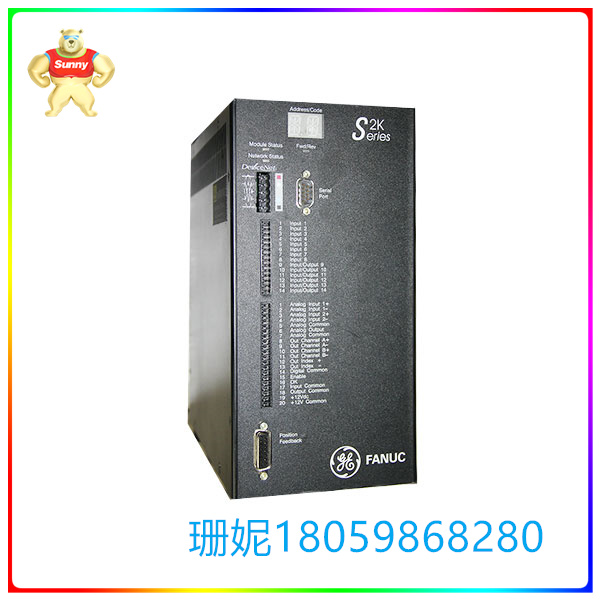

IC800SSI216RD2是阿格FANUC VersaMotion伺服电机控制器。该控制器是一个180-250 VAC设备,具有三相输入。它支持DeviceNet编程。控制器具有位置反馈、一个串行端口以及八个离散输入和输出。设备的前面板还显示模块状态、网络状态、地址/代码和正向/反向。双字符LED显示屏允许使用助记显示进行实时诊断更新,如“OK”、“OV”(电机过电压,)LE(对于失去使能,)等等。


IC800SSI216RD2设计用于特定系列的电机。这包括MTR-3S45-H、MTR-3S46H、MTR-3S63-G、MTR-3S65-G、MTR-3S67-G、MTR-3T45-1、MTR-3T54-H和MTR-3T55-H。这些电机的连续失速扭矩范围为32至150.3英寸-磅,额定转速范围为1,400至5,300转/分。具体信息请参考GE数据表。


十多年前,通用电气发那科公司将Whedco Inc .的IMJ型号并入S2K系列。如果您要更换其中一个控制器,请注意IC800SSI216RD2兼容一把IMJ 31GD-2d伺服电机控制器,带DeviceNet的16A解析器反馈。


IC800SSI216RD2的工作温度为0至50摄氏度。它的储存和运输温度为-40至80摄氏度,湿度为5%至95%不冷凝。散热器方向必须垂直。请注意,该装置的额定工作深度为3300英尺;在咨询通用电气公司之前,不得进行更高海拔的操作。该模块的安装设计为在所有侧面留有3英寸的间隙,以便有效冷却。






IC800SSI216 GE  伺服电机控制器 180-250VAC 3 相输入



英文介绍



The IC800SSI216RD2 is an AgFANuc VersaMotion servo motor controller. The controller is a 180-250 VAC device with three-phase inputs. It supports DeviceNet programming. The controller has position feedback, a serial port, and eight discrete inputs and outputs. The front panel of the device also displays module status, network status, address/code, and forward/reverse. The two-character LED display allows for real-time diagnostic updates using mnemonic displays such as "OK", "OV" (motor overvoltage,)LE(for loss of enablement,) and more.


The IC800SSI216RD2 is designed for use in a specific series of motors. This includes MTR-3S45-H, MTR-3S46H, MTR-3S63-G, MTR-3S65-G, MTR-3S67-G, MTR-3T45-1, MTR-3T54-H, and MTR-3T55-H. These motors have a continuous stall torque range of 32 to 150.3 inch-pounds and a rated speed range of 1,400 to 5,300 RPM. For details, see the GE data table.


More than a decade ago, GE Fanuc incorporated Whedco Inc. 's IMJ model into the S2K family. If you are replacing one of these controllers, note that the IC800SSI216RD2 is compatible with an IMJ 31GD-2d servo motor controller with DeviceNet's 16A parser feedback.


The IC800SSI216RD2 operates from 0 to 50 degrees Celsius. It is stored and transported at temperatures of -40 to 80 degrees Celsius and humidity of 5% to 95% non-condensing. The radiator must be vertically oriented. Note that the unit is rated to operate at a depth of 3,300 feet; Operations at higher altitudes should not be carried out without consulting GE. The module is mounted with a 3-inch clearance on all sides for effective cooling.
