IC800SSI107RD2-CE 控制器 支持即时模式操作

【产品详情】

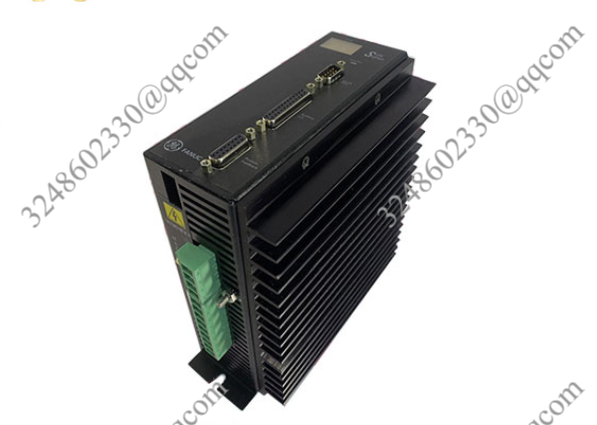

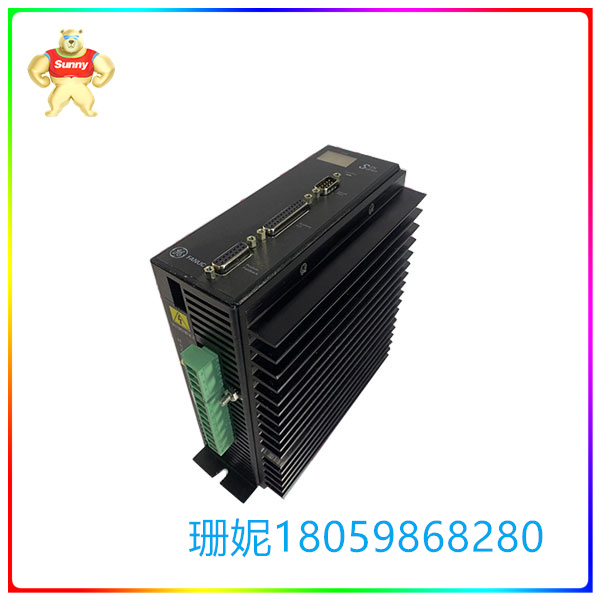

IC800SSI107RD2-CE是由GE Fanuc Automation制造的VersaMotion S2K控制器。该控制器是一个 4.3 安培和 115/230 VAC 设备，具有旋转变压器反馈和 DeviceNet 编程功能。该装置具有离散输入和输出、位置反馈、急停电路、无刷伺服电机、VAC 输入、串行端口、辅助 I/O 和 DIP 开关位置。

字符串变量简化了与第三方人机界面的界面。IC800SSI107RD2-CE支持即时模式操作，其中外部主机可以加载寄存器或发出实时执行的命令（通过串行或网络端口）。该控制器具有实时操作系统和全面的编程语言，最多可同时执行四个程序、一个运动任务和一个通信任务。任何程序都可以启动和停止任何其他程序，并且所有程序都可以利用公共运动块。由于控制器软件的配置和编程向导，缩短了工程时间并简化了集成。

控制器具有一个简单的诊断系统，显示在前面板上的 2 个字符的 LED 上。所有 LED 状态显示代码都列在运动解决方案手册中。多个故障以循环方式显示。S2K系列可以在单个型号内控制广泛的扭矩范围。该控制器具有更小的封装尺寸和广泛的处理能力，适用于要求苛刻的应用。控制器上有 2 个模拟输入和一个模拟输出，并配有一个网络连接。有关 S2K 控制器的更多信息，请参阅手册

IC800SSI107RD2-CE 控制器 支持即时模式操作

【英文介绍】

The IC800SSI107RD2-CE is a VersaMotion S2K controller manufactured by GE Fanuc Automation. The controller is a 4.3 amp and 115/230 VAC device with rotary transformer feedback and DeviceNet programming capabilities. The unit has discrete input and output, position feedback, emergency outage circuit, brushless servo motor, VAC input, serial port, auxiliary I/O and DIP switch position.

String variables simplify the interface with third-party HMI. The IC800SSI107RD2-CE supports just-in-time mode operation, where an external host can load registers or issue commands that execute in real time (via serial or network ports). With a real-time operating system and comprehensive programming language, the controller can execute up to four programs, one motion task and one communication task simultaneously. Any program can start and stop any other program, and all programs can take advantage of common motion blocks. Reduced engineering time and simplified integration thanks to the configuration and programming wizard of the controller software.

The controller has a simple diagnostic system that is displayed on a 2-character LED on the front panel. All LED status codes are listed in the Motion Solutions manual. Multiple faults are displayed in a cyclic manner. The S2K series can control a wide torque range in a single model. The controller features a smaller package size and a wide range of processing capabilities for demanding applications. The controller has two analog inputs and one analog output and is equipped with a network connection. For more information about the S2K controller, see the manual

IC800SSI107RD2-CE 控制器 支持即时模式操作
