IC695GCG001 通信网关 提供以太网连接
【产品详情】

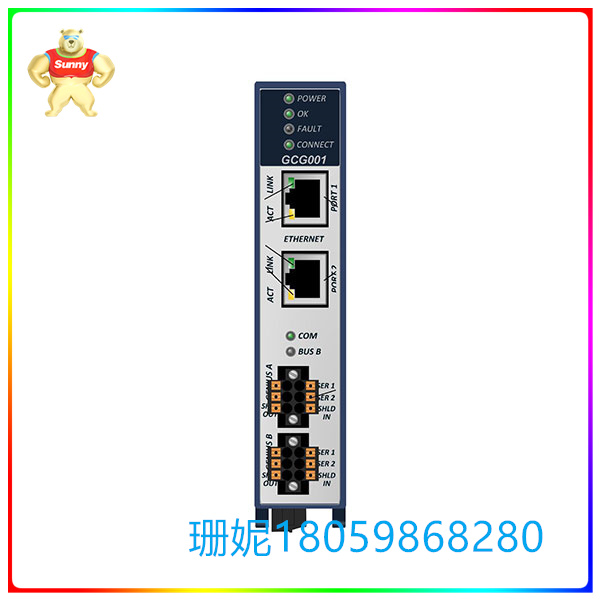

IC695GCG001是一个天才通信网关。该模块是 PACSystem RX3i 的一部分,主要用于为任何传统的现有 Genius 总线系统提供以太网连接。该模块用于保留利用Genius总线的传统模块的功能,并将设备安全地迁移到现代控制系统,而无需完全退役。
IC695GCG001提供两 (2) 个支持 PROFINET 的 RJ45 通信接口和两 (2) 个 Genius 通信接口。来自现有 I/O 系统的 Genius 总线适配器端接到IC695GCG001的 Genius 端口。然后,PROFINET接口虚拟连接或桥接PROFINET网络和连接的Genius功能模块之间的连接。该模块充当 2 种协议之间的网关,支持多达 31 个 Genius 块或设备,并允许 2048 字节的 I/O 数据,特别是 1024 个输入数据和 1024 个输出数据。该模块支持标准和扩展的Genius总线速度,特别是153.6 kbps。
IC695GCG001支持的协议是RTC – 实时循环协议,1 类和 2 类(不同步);RTA – 实时非循环协议;DCP – 发现和配置协议;CL-RPC – 无连接远程过程调用;LLDP – 链路层发现协议;MRP – 媒体冗余协议;SNMP – 简单的网络管理协议。它还支持子集协议,包括UDP,IP,ARP和ICMP (Ping)。此外,此模块支持 VLAN 和优先级标记。
IC695GCG001具有可配置的 I/O 更新或生产速率。可用的软件可配置时间设置为 2ms、4ms、8ms、16ms、32ms、128ms、256ms 或 512ms。该模块的最大电流消耗为 24 VDC;0.19 A,工作温度为 0°C 至 60°C,IC695GCG001
模块是 GE Fanuc RX3i PacSystems 通信网关模块。IC695GCG001模块支持GE Profinet I/O控制器和Genius I/O设备在Genius串行总线上的接口。IC695GCG001模块扫描连接的 Genius I/O 设备,检索输入数据并发送输出数据。然后,IC695GCG001模块通过以太网链路与Profinet I/O控制器交换I/O数据。IC695GCG001模块可以在任何特定的Genius I/O总线上管理多达31个Genius I/O设备。IC695GCG001模块还可以作为I/O设备运行,允许RX3i Profinet控制器控制。在这种情况下,IC695GCG001模块能够控制PLC。IC695GCG001模块仅与GE Profinet I/O控制器兼容。IC695GCG001模块可以在冗余配置中设置。
IC45GCG695模块上提供了两个带有 RJ-001 接口的以太网端口。该模块支持星形和线性网络拓扑。IC695GCG001模块支持以太网媒体冗余协议 (MRP)。IC695GCG001模块通常安装在面板安装中。还提供用于 RX3i 扩展插槽的可选安装套件。该模块需要一个外部 24 伏直流电源,并消耗 0.2 安培的电流。IC695GCG001模块支持热插拔。但是,热插拔需要断开外部电源。建议的环境工作温度范围为 0 至 60 摄氏度。模块上支持SD卡,可用于2种应用,包括以太网配置数据的备份和加载新的模块固件。IC695GCG001模块支持一条 Genius 总线,模块前面板上标有串行 1、串行 2、屏蔽输入和屏蔽输出端口。
IC695GCG001 通信网关 提供以太网连接
【英文介绍】
IC695GCG001 is a genius communication gateway. This module is part of PACSystem RX3i and is primarily used to provide Ethernet connectivity to any legacy existing Genius bus system. This module is used to preserve the functionality of legacy modules utilizing the Genius bus and to safely migrate devices to modern control systems without the need for complete decommissioning.
The IC695GCG001 provides two (2) RJ45 communication interfaces supporting PROFINET and two (2) Genius communication interfaces. The Genius bus adapter from the existing I/O system is connected to the Genius port of the IC695GCG001. The PROFINET interface then virtually connects or Bridges the connection between the PROFINET network and the connected Genius functional module. The module acts as a gateway between 2 protocols, supports up to 31 Genius blocks or devices, and allows 2048 bytes of I/O data, specifically 1024 input data and 1024 output data. The module supports standard and extended Genius bus speeds, specifically 153.6 kbps.
The protocols supported by IC695GCG001 are RTC - Real-time Loop Protocol, Class 1 and Class 2 (asynchronous); RTA - real-time acyclic protocol; DCP - Discover and configure protocols; CL-RPC - Connectionless remote procedure call; LLDP - Link layer discovery protocol. MRP - Media Redundancy Protocol; SNMP - Simple network management protocol. It also supports subset protocols, including UDP, IP, ARP, and ICMP (Ping). In addition, this module supports VLAN and priority tags.
The IC695GCG001 has configurable I/O updates or production rates. The available software can be configured for 2ms, 4ms, 8ms, 16ms, 32ms, 128ms, 256ms or 512ms. The maximum current consumption of the module is 24 VDC; 0.19A, operating temperature 0°C to 60°C, IC695GCG001
The module is GE Fanuc RX3i PacSystems communication gateway module. The IC695GCG001 module supports the interface between GE Profinet I/O controllers and Genius I/O devices on the Genius serial bus. The IC695GCG001 module scans connected Genius I/O devices, retrieves input data and sends output data. The IC695GCG001 module then exchanges I/O data with the Profinet I/O controller over an Ethernet link. The IC695GCG001 module can manage up to 31 Genius I/O devices on any specific Genius I/O bus. The IC695GCG001 module can also operate as an I/O device, allowing the RX3i Profinet controller to control. In this case, the IC695GCG001 module is able to control the PLC. The IC695GCG001 module is only compatible with GE Profinet I/O controllers. The IC695GCG001 module can be set up in a redundant configuration.
Two Ethernet ports with RJ-001 interfaces are provided on the IC45GCG695 module. The module supports star and linear network topologies. The IC695GCG001 module supports Ethernet Media Redundancy Protocol (MRP). The IC695GCG001 module is typically installed in a panel mount. An optional installation kit for the RX3i expansion slot is also available. The module requires an external 24 volt DC power supply and consumes 0.2 amps of current. The IC695GCG001 module supports hot swap. However, hot swap requires that the external power supply be disconnected. The recommended ambient operating temperature range is 0 to 60 degrees Celsius. SD cards are supported on the module and can be used for 2 applications, including backup of Ethernet configuration data and loading new module firmware. The IC695GCG001 module supports a Genius bus, and the front panel of the module is marked with serial 1, Serial 2, masked input and masked output ports.
IC695GCG001 通信网关 提供以太网连接
