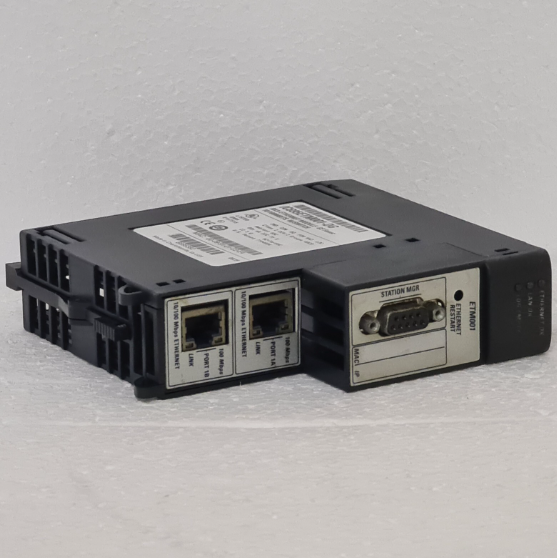

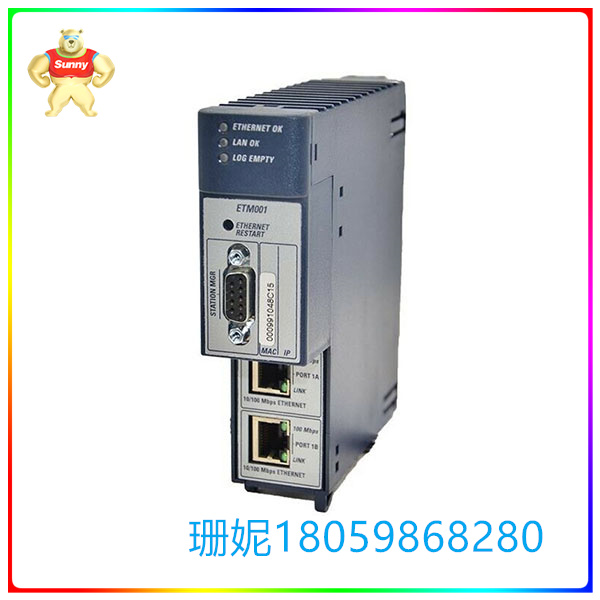

IC695ETM001 GE 以太网接口模块 RS-232串行端口
【产品详情】
产品描述
IC695ETM001是GE Fanuc RX3i系列的以太网接口模块。以太网接口模块将 PACSystems RX3i 连接到以太网网络。它使RX3i控制器能够与其他PACSystems设备以及90系列和VersaMax控制器进行通信。在IC695ETM001的网站页面上查看本机的规格。
技术规格
处理速度:
200兆赫
插槽数量: 1(单插槽)
巴士速度: 10/100 姆波特
通信端口: 2 个 RJ-45 端口
协议支持: SRT, Modbus TCP, Ethernet Global Data (EGD)
串行端口: RS-232 站长
GE Fanuc生产IC695ETM001以太网接口模块,作为RX3i PACSystems系列的一部分。该单元旨在使 RX3i PACSystems 系列中的控制器能够通过以太网与 VersaMax、90-30 系列和其他控制器连接。它具有以太网接口,可以以 10/100 Mbps 的速度运行,并且可以检测连接电缆的速度和类型。一对长达 100 米的双绞线用于以 10 Mbps 的速度连接网络节点。 此外,长度为 5 米的 100 类双绞线电缆用于以 100 Mbps 的速度连接网络节点。IC695ETM001以太网接口具有一个以太网端口,支持使用全双工和半双工节点。此外,直通和交叉以太网电缆都可用于网络连接。此以太网接口模块支持 1 个 MAC 地址和 1 个 IP 地址。它带有一个嵌入式以太网交换机,可实现以太网节点的菊花链。
GE Fanuc RX3i PACSystems IC695ETM001以太网接口模块的另一个显着特点是RS-232串行端口。IC695ETM001接口模块支持1200 bps至115,200 bps的数据速率。它具有集成的站管理器功能,可通过以太网和串行连接访问,并且还提供监控访问。工作站管理器功能提供的服务包括用于控制和轮询工作站的命令、密码安全性以及对监控日志、配置参数和统计信息的访问。建议使用 Allen-Bradley IC695ETM001 以太网接口模块,用于通过 SNTP 协议同步 EGD 交换的时间戳。
IC695ETM001 GE 以太网接口模块 RS-232串行端口
【英文介绍】
Product description
The IC695ETM001 is an Ethernet interface module of GE Fanuc RX3i series. The Ethernet interface module connects PACSystems RX3i to the Ethernet network. It enables the RX3i controller to communicate with other PACSystems devices as well as the 90 Series and VersaMax controllers. Check the specifications of the unit on the IC695ETM001 website page.
Technical specification
Processing speed:
200 megahertz
Number of slots: 1 (single slot)
Bus speed: 10/100 mbaud
Communication port: Two RJ-45 ports
Protocol support: SRT, Modbus TCP, Ethernet Global Data (EGD)
Serial port: RS-232 webmaster
GE Fanuc manufactures the IC695ETM001 Ethernet interface module as part of the RX3i PACSystems family. The unit is designed to enable controllers in the RX3i PACSystems family to connect to VersaMax, the 90-30 series, and other controllers over Ethernet. It has an Ethernet interface, can run at 10/100 Mbps, and can detect the speed and type of connecting cable. A pair of twisted pairs up to 100 meters long is used to connect network nodes at 10 Mbps. In addition, Category 100 twisted pair cables with a length of 5 meters are used to connect network nodes at speeds of 100 Mbps. The IC695ETM001 Ethernet interface has an Ethernet port that supports the use of full-duplex and half-duplex nodes. In addition, both direct and cross Ethernet cables are available for network connectivity. The Ethernet interface module supports one MAC address and one IP address. It comes with an embedded Ethernet switch that daisies Ethernet nodes.
Another notable feature of the GE Fanuc RX3i PACSystems IC695ETM001 Ethernet interface module is the RS-232 serial port. The IC695ETM001 interface module supports data rates from 1200 bps to 115,200 bps. It has integrated station manager capabilities, is accessible via Ethernet and serial connections, and also provides monitoring access. Services provided by the workstation manager feature include commands for controlling and polling workstations, password security, and access to monitoring logs, configuration parameters, and statistics. You are advised to use the Allen-Bradley IC695ETM001 Ethernet interface module, which is used to synchronize the time stamps of EGD exchanges over the SNTP protocol.
IC695ETM001 GE 以太网接口模块 RS-232串行端口
