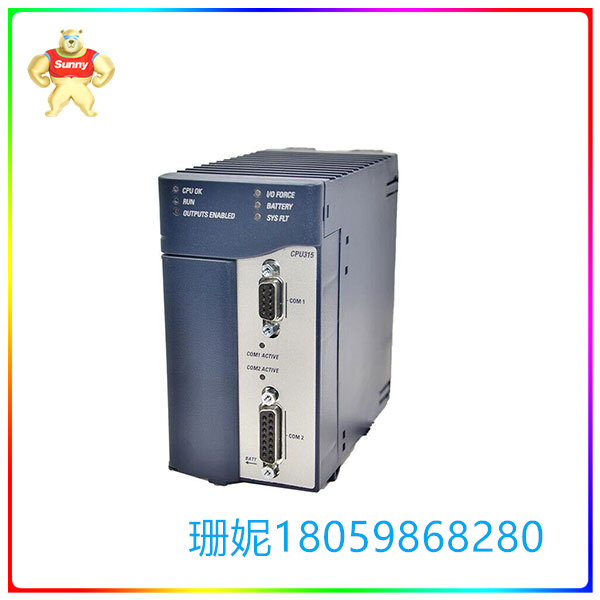

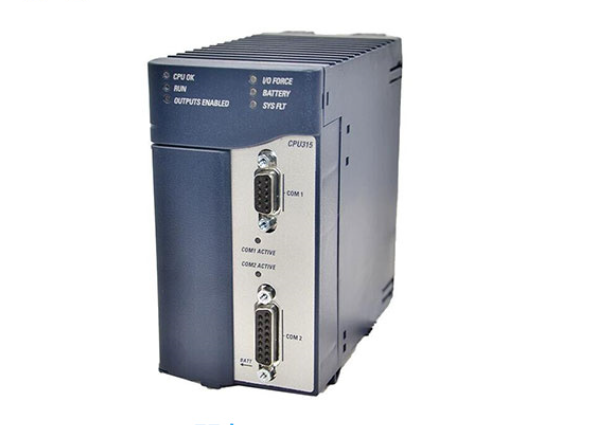

IC695CPU315 GE CPU 模块上提供两个集成串行端口

【产品详情】

GE Fanuc IC695CPU315 CPU是RX3i PacSystems 1.0 Gigahertz Celeron M CPU，具有20 MB的用户内存。可随CPU一起订购的配件包括IC695ACC302智能辅助电池、IC693ACC302普通辅助电池和IC690RBT001充电电池。只有 GEIP 批准的辅助电池组才能与 CPU 模块一起使用。除了电池备份RAM外，该模块还包括20 MB的NVRAM。IC695CPU315 CPU 为离散 I/O 保留 32 KB 内存，为模拟 I/O 保留 32 KB 内存。最多支持 512 个程序块，每个程序块的大小为 128 KB。CPU 模块支持高速串行和 RX3i PCU 总线。IC695CPU315 CPU 符合 PCI 标准版本 2.2。

IC695CPU315 CPU 模块上提供两个集成串行端口。一个端口支持 RS-232 通信，另一个端口支持 RS-485 通信。支持三种串行协议，包括串行 I/O、Modbus RTU 从站和 SNP 协议。模块在 5 伏直流时的标称电流消耗为 1.2 安培，在 3.3 伏直流时为 1 安培。工作温度范围为 32 至 140 华氏度。内部时钟的额定峰值漂移为每天 2 秒。最大内部定时精度为0.01%。IC695CPU315 CPU 支持自动定位的符号变量，允许使用任意数量的用户内存。IC695CPU315 CPU 支持大多数 GE 系列 90-30 模块和扩展机架。CPU 固件可现场升级。IC695CPU315 CPU 符合欧盟 RoHS 指令 2002/95/EC 和相关豁免。IC695CPU315 CPU 的应用程序包括对应用程序进程和机器的实时控制。

IC695CPU315 GE CPU 模块上提供两个集成串行端口

【英文介绍】

The GE Fanuc IC695CPU315 CPU is an RX3i PacSystems 1.0 Gigahertz Celeron M CPU with 20 MB of user memory. Accessories that can be ordered with the CPU include the IC695ACC302 intelligent auxiliary battery, IC693ACC302 ordinary auxiliary battery, and IC690RBT001 rechargeable battery. Only GEIP-approved auxiliary battery packs can be used with CPU modules. In addition to battery backup RAM, the module also includes 20 MB of NVRAM. The IC695CPU315 CPU reserves 32 KB of memory for discrete I/O and 32 KB of memory for analog I/O. Up to 512 blocks are supported, each 128 KB in size. The CPU module supports high-speed serial and RX3i PCU bus. The IC695CPU315 CPU complies with PCI version 2.2.

The IC695CPU315 CPU module provides two integrated serial ports. One port supports RS-232 communication and the other supports RS-485 communication. Three serial protocols are supported, including serial I/O, Modbus RTU slave, and SNP. The nominal current consumption of the module is 1.2 amps at 5 volts DC and 1 amp at 3.3 volts DC. Operating temperature range is 32 to 140 degrees Fahrenheit. The internal clock has a rated peak shift of 2 seconds per day. The maximum internal timing accuracy is 0.01%. The IC695CPU315 CPU supports automatically positioned symbolic variables, allowing any amount of user memory to be used. The IC695CPU315 CPU supports most GE series 90-30 modules and expansion racks. CPU firmware can be upgraded onsite. The IC695CPU315 CPU complies with EU RoHS Directive 2002/95/EC and related exemptions. The application of the IC695CPU315 CPU includes real-time control of application processes and machines.

IC695CPU315 GE CPU 模块上提供两个集成串行端口
