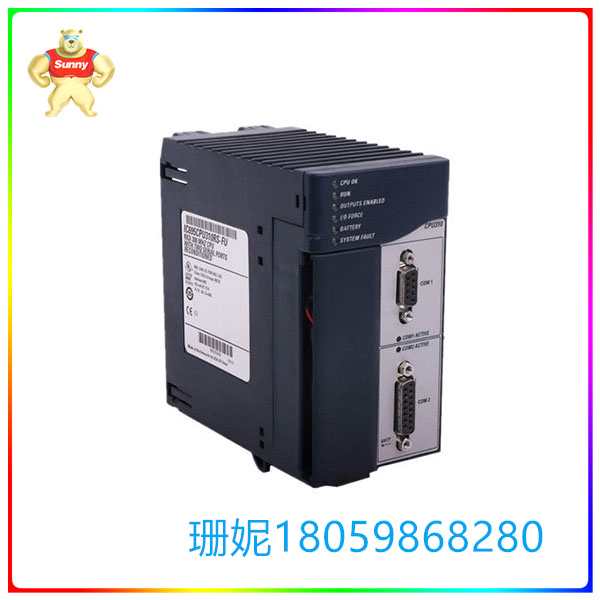

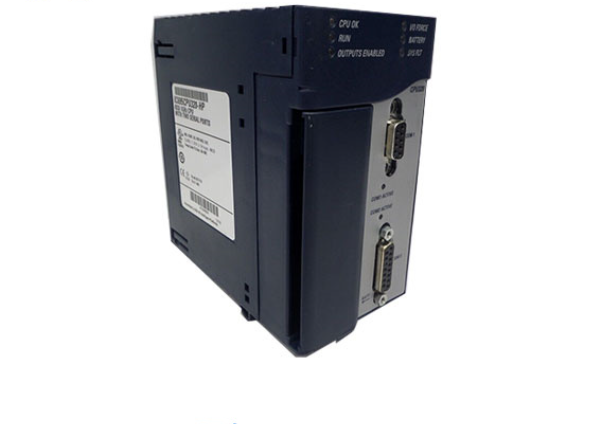

IC695CPU310 中央处理器 RX3i CPU310 处理器
【产品详情】
IC695CPU310是GE Fanuc RX300i系列的3 MHz中央处理器。该IC695CPU310具有英特尔赛扬(奔腾III)微处理器,具有10 MB的RAM和10 MB的闪存。它还具有一对用于RS-232和RS-485通信的嵌入式串行端口。两个端口都朝向机箱前方,便于访问。 该IC695CPU310支持三种不同的串行协议(Modbus RTU Slave,SNP和Serial I / O),所有这些协议都与可编程逻辑控制器配合使用,以构建PLC提供信息的方式:IC695CPU310使用SNP从机协议与HMI(人机界面)设备进行通信。
机箱正面的八个 LED 可让您一目了然地查看系统状态,以便您判断 CPU、电池和通信通道是否按预期工作。产品文档会提醒您 LED 颜色和状态的含义,但 CPU 遵循广泛接受的惯例:闪烁或红灯表示系统故障,而稳定的绿色表示正常运行。
双背板总线架构支持 RX3i PCI 和 GE Fanuc 系列 90-30 型串行总线使用。CPU 本身最多支持 512 个程序块,每个程序块的最大大小为 128 KB。您可以使用梯形图、结构化文本或功能块图编程语言对其进行编程。您也可以用 C 语言对其进行编程。
RX3i CPU 由编程软件编程和配置,以执行机器、过程和物料搬运系统的实时控制。
IC695CPU310模块是GE Fanuc Automation制造的CPU模块,是RX3i PACSystems产品线的一部分。它支持安装在 16 插槽或 12 插槽 RX3i 通用背板上。该模块在 1.25 伏直流电压下以 3.3 安培的额定电流运行,在 1 伏直流电下以 5 安培的电流工作。它的工作温度范围为 0 至 60 摄氏度,并配有容量高达 10 MB 的电池备份 RAM 和 10 MB 的非易失性闪存。GE Fanuc IC695CPU310 CPU模块支持浮点数据格式,典型执行速度为0.195毫秒/1000条布尔指令。本机配有内部日间时钟,每天最多漂移 2 秒。经过的时钟的内部定时精度最高为 0.01%。
GE Fanuc IC695CPU310 CPU模块支持RS-232 / RS-485接口,并且还支持串行I / O,Modbus RTU从站和SNP串行通信协议。它与GE系列90-30串行背板和RX3i PCI背板非常匹配和使用。IC695CPU310 CPU 模块经过精心设计,因此在电气上符合 PCI 2.2 标准。它最多支持 512 个程序块,最大块大小为 128 KB。该模块支持梯形图、结构化文本和功能块图格式等格式的编程。此外,它还具有系统固件,允许升级以启用高级功能。
IC695CPU310 中央处理器 RX3i CPU310 处理器
【英文介绍】
The IC695CPU310 is a 3 MHz CPU from the GE Fanuc RX300i series. The IC695CPU310 has an Intel Celeron (Pentium III) microprocessor with 10 MB of RAM and 10 MB of flash memory. It also has a pair of embedded serial ports for RS-232 and RS-485 communication. The two ports face the front of the chassis for easy access. The IC695CPU310 supports three different Serial protocols (Modbus RTU Slave, SNP, and Serial I/O), all of which are used in conjunction with programmable logic controllers to build the way the PLC provides information: The IC695CPU310 uses the SNP slave protocol to communicate with HMI (Human Machine Interface) devices.
Eight leds on the front of the case allow you to see the status of the system at a glance so you can tell if the CPU, battery, and communication channels are working as expected. The product documentation will remind you of the meaning of the LED color and status, but the CPU follows widely accepted conventions: a blinking or red light indicates system failure, while a steady green indicates normal operation.
The dual backplane bus architecture supports RX3i PCI and GE Fanuc series Type 90-30 serial buses. The CPU itself supports up to 512 blocks, each with a maximum size of 128 KB. You can program it using ladder diagram, structured text, or functional block diagram programming languages. You can also program it in C.
The RX3i CPU is programmed and configured by programming software to perform real-time control of machines, processes, and material handling systems.
The IC695CPU310 module is a CPU module manufactured by GE Fanuc Automation as part of the RX3i PACSystems product line. It supports installation on a 16-slot or 12-slot RX3i universal backplane. The module operates at a rated current of 3.3 amps at 1.25 volts DC and 5 amps at 1 volt DC. It operates in a temperature range of 0 to 60 degrees Celsius and comes with up to 10 MB of battery backup RAM and 10 MB of non-volatile flash memory. The GE Fanuc IC695CPU310 CPU module supports floating-point data formats with a typical execution speed of 0.195 ms /1000 Boolean instructions. The unit is equipped with an internal day clock that shifts up to 2 seconds per day. The internal timing accuracy of the passing clock is up to 0.01%.
The GE Fanuc IC695CPU310 CPU module supports RS-232 / RS-485 interfaces and also supports serial I/O, Modbus RTU slave station and SNP serial communication protocols. It matches and works well with the GE Series 90-30 serial backplane and the RX3i PCI backplane. The IC695CPU310 CPU module has been carefully designed so that it is electrically PCI 2.2 compliant. It supports up to 512 blocks with a maximum block size of 128 KB. The module supports the programming of ladder diagram, structured text and function block diagram format. In addition, it has system firmware that allows upgrades to enable advanced features.
