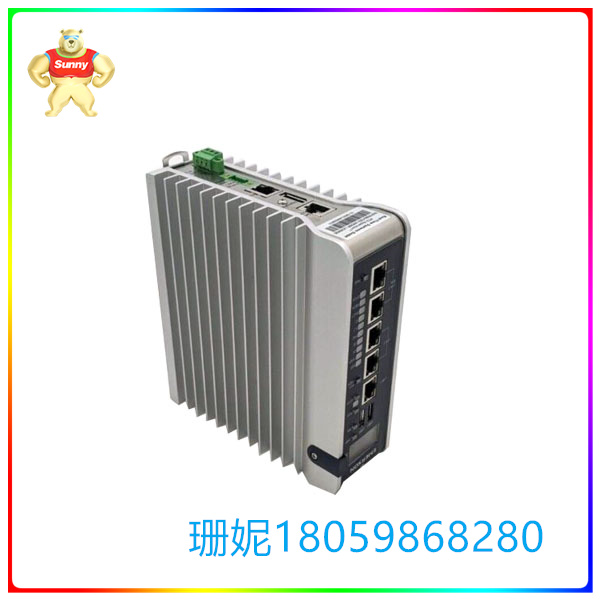

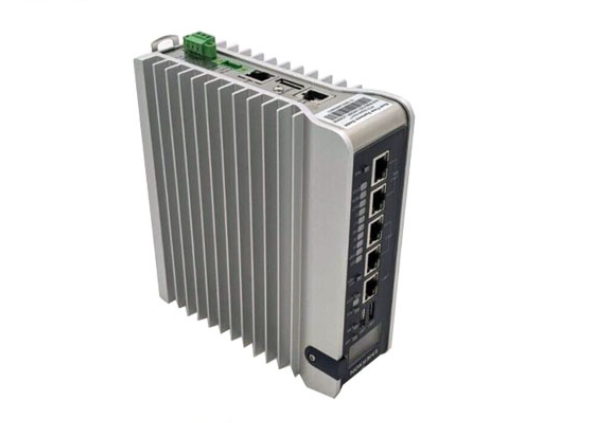

IC695CPE400 RX3i CPE400 处理器 GE

【产品详情】

处理速度： 1.2千兆赫

中央处理器内存： 64 兆字节

浮点： 是的

以太网接口： 2 （RJ-45）

串行协议： SRTP， Modbus TCP， EGD， PROFINET， MRP

输入功率： 20 瓦

该IC695CPE400是GE Fanuc PACSystems RX3i系列的紧凑型结果优化控制器。IC695CPE400是GE所谓的工业互联网控制系统的无机架和独立部分。该控制器支持工业网络的标准协议PROFINET。

IC695CPE400通过利用称为 Field Agent 的平台作为虚拟机管理程序来提供通信和分析。 现场代理使控制器能够与基于边缘或基于云的应用程序进行交互。 换句话说，控制器与在传感器级别或网络“边缘”执行计算的应用程序以及在远程服务器上解析数据的应用程序同样有效。IC695CPE400中的固件使用以太网端口在上电时根据需要自动升级。控制器具有 64 MB RAM 和 64 MB 非易失性闪存。IC695CPE400可以使用可选的能量包 （IC695ACC403） 作为内存备份机制。使用该能量包，当意外波动或中断导致系统断电时，控制器会通过将数据从短期内存写入长期内存来保存数据，以便在恢复电源时恢复数据。

您可以使用梯形图、结构化文本、功能块图或 C 语法对IC695CPE400进行编程。控制器配备四个独立的以太网 10/100/1000 LAN。LAN1 在机箱的前面板上使用专用 RJ45 连接器IC695CPE400。LAN2 和 LAN3 通过一对内部开关的 RJ45 连接器连接。LAN4 插入设备的底部，用于连接现场代理平台。

IC695CPE400控制器由GE Fanuc制造，作为RX3i PACSystems系列PLC的结果优化控制器。IC695CPE400结果优化控制器不需要安装在任何类型的机架中，因为它被设计为独立设备。它在其所有网络应用程序中使用Profinet协议。它还可以支持SRTP，MRP和Modbus TCP协议。IC695CPE400结果优化控制器内部的处理器是AMD系列G四核处理器，时钟频率为1.2千兆赫。当控制器启动时，此控制器中的固件可以通过以太网端口自动更新。IC695CPE400结果优化控制器可以使用结构化文本、功能块图和梯形图进行编程。

GE Fanuc RX3i PACSystems IC695CPE400结果优化控制器配备用于处理基于边缘和基于云的应用程序。基于边缘的应用程序是在传感器级别的网络边缘运行的计算应用程序，而基于云的应用程序是可以解析从远程服务器接收的数据的应用程序。IC695CPE400结果优化控制器还可以处理 4 个以太网 LAN，这些 LAN 一次可针对不同的通信速度进行额定。每个 LAN 都是独立的，并连接到控制器上的不同点。LAN 1 连接到控制器前面的 RJ45 连接器，LAN 2 和 LAN 3 都连接到内部交换的其他 RJ45 连接器，LAN 4 连接到位于IC695CPE400结果优化控制器底部的端口。

IC695CPE400 RX3i CPE400 处理器 GE

【英文介绍】

Processing speed: 1.2 GHZ

CPU memory: 64 megabytes

Floating point: Yes

Ethernet interface: 2 (RJ-45)

Serial protocol: SRTP, Modbus TCP, EGD, PROFINET, MRP

Input power: 20 watts

The IC695CPE400 is a compact result optimization controller from the GE Fanuc PACSystems RX3i family. The IC695CPE400 is the rackless and self-contained part of what GE calls an Industrial Internet control system. The controller supports PROFINET, the standard protocol for industrial networking.

The IC695CPE400 provides communication and analysis by utilizing a platform called Field Agent as a hypervisor. Field agents enable controllers to interact with edge-based or cloud-based applications. In other words, controllers are just as effective as applications that perform calculations at the sensor level or at the "edge" of the network, and applications that parse data on remote servers. The firmware in the IC695CPE400 is automatically upgraded during power-on using the Ethernet port. The controller has 64 MB RAM and 64 MB non-volatile flash memory. The IC695CPE400 can use an optional energy pack (IC695ACC403) as a memory backup mechanism. With this energy pack, when an unexpected fluctuation or interruption causes the system to lose power, the controller saves data by writing it from short-term memory to long-term memory so that it can be restored when power is restored.

You can program the IC695CPE400 using ladder diagrams, structured text, function block diagrams, or C syntax. The controller is equipped with four separate Ethernet 10/100/1000 Lans. The LAN1 uses a dedicated RJ45 connector IC695CPE400 on the front panel of the case. The LAN2 and LAN3 are connected via a pair of RJ45 connectors with internal switches. LAN4 plugs into the bottom of the device and is used to connect to the field agent platform.

The IC695CPE400 controller is manufactured by GE Fanuc as a result optimized controller for the RX3i PACSystems family of PLCS. The IC695CPE400 Results Optimization controller does not need to be installed in any type of rack because it is designed as a stand-alone device. It uses the Profinet protocol in all of its web applications. It can also support SRTP, MRP and Modbus TCP protocols. The processor inside the IC695CPE400 is an AMD series G-quad-core processor with a clock rate of 1.2 gigahertz. When the controller is started, the firmware in this controller can be automatically updated via the Ethernet port. The IC695CPE400 Result Optimization controller can be programmed using structured text, function block diagrams, and ladder diagrams.

GE Fanuc RX3i PACSystems IC695CPE400 Result optimization controllers are equipped to handle edge-based and cloud-based applications. Edge-based applications are computing applications that run at the edge of the network at the sensor level, while cloud-based applications are applications that can parse data received from remote servers. The IC695CPE400 Result Optimization controller can also handle up to four Ethernet Lans that can be rated for different communication speeds at once. Each LAN is independent and connected to different points on the controller. LAN 1 is connected to the RJ45 connector on the front of the controller, both LAN 2 and LAN 3 are connected to the other RJ45 connectors on the internal switch, and LAN 4 is connected to the port located on the bottom of the IC695CPE400 Result Optimization controller.

IC695CPE400 RX3i CPE400 处理器 GE
