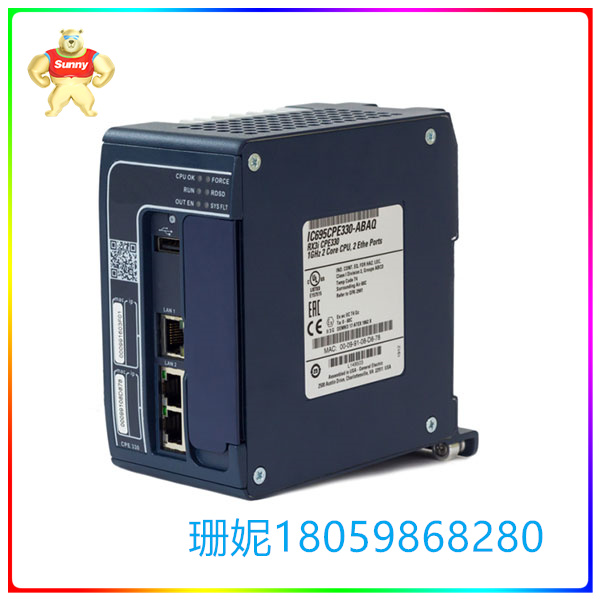

IC695CPE330 中央处理器 不附带任何串行通信端口

【产品详情】

处理速度： 1千兆赫

中央处理器内存： 64 兆字节

浮点： 是的

以太网接口： 2 （LAN 1 & LAN 2）

串行协议： Modbus RTU 从机， SNP 从机， 串行 I/O

嵌入式通信： RJ-45

该IC695CPE330是GE Fanuc PACSystems RX3i系列中具有以太网连接的可编程CPU。要对IC695CPE330进行编程和配置，通常使用Proficy机器版软件。作为用户，您可以选择几种不同语言中的任何一种来对控制器进行编程。根据您希望使用工业规模自动化执行的操作，您可以使用梯形图、功能块图、结构化文本或 C 进行编程。您还可以自信地创建符号变量。

该模块是支持其他 RX3i I/O 和智能选件模块的控制器。它的CPU最多可容纳512个程序块，每个程序块的容量可达128 KB。

IC695CPE330附带 64 MB 用户内存、64 MB 程序内存和一对标记为 LAN1 和 LAN2 的独立高速以太网 LAN。LAN1 使用专用的 RJ-45（有时写入 RJ45）连接器。LAN2 使用一对内部交换连接器。两个 LAN 都由专用微处理器和网络接口控制器提供服务，因此所涉及的以太网独立于控制器逻辑和 I/O 扫描运行。控制器上的以太网接口可自动检测数据速率、通信模式和布线安排。

两个 LAN 中的每一个都可以同时运行多达 48 个 SRTP（安全实时传输协议）服务器连接。控制器支持三种不同的串行协议：Modbus RTU 从机、串行 I/O 和 SNP 从机。

控制器金属外壳上的切口和面板上的标签使连接和布线选项一目了然。控制器设计用于同步数据，同时启用多层通信。它还允许您在 USB 2.0 可移动数据存储设备之间传输数据。

GE Fanuc IC695CPE330 CPU是由GE Fanuc制造的工业中央处理器，用作GE RX3i PACSystems系列工业机器控制系统的一部分。IC695CPE330 CPU 最多可容纳 512 个程序块，每个程序块的数据容量最高可达 128 KB。用户可以使用Proficy软件的机器版配置和编程IC695CPE330 CPU。该中央处理单元可以使用功能块图、字母图或结构化文本设置进行编程，具体取决于其预期应用。它带有64 MB的用户内存和等量的程序内存。

GE Fanuc RX3i PACSystems IC695CPE330中央处理器不附带任何串行通信端口。但是，它确实带有一个 RJ45 以太网端口，可以处理 10 Mbaud、100 Mbaud 或 1000 Mbaud 的通信速度。IC695CPE330 CPU 支持 2 个高速以太网 LAN，这些 LAN 能够独立运行，标记为 LAN1 和 LAN2。LAN1 使用 CPU 的 RJ45 以太网端口，而 LAN2 使用一对内部交换的连接器。两种以太网 LAN 都能够同时处理多达 48 个安全实时传输协议或 SRTP 服务器连接。IC1CPE695 CPU 内部的处理器是 330.1 GHz 双核处理器。该CPU旨在安装在GE通用背板中，它具有6K离散和模拟I / O点。

IC695CPE330 中央处理器 不附带任何串行通信端口

【英文介绍】

Processing speed: 1 GHZ

CPU memory: 64 megabytes

Floating point: Yes

Ethernet interface: 2 (LAN 1 & LAN 2)

Serial protocol: Modbus RTU slave, SNP slave, serial I/O

Embedded communication: RJ-45

The IC695CPE330 is a programmable CPU with Ethernet connectivity in the GE Fanuc PACSystems RX3i family. To program and configure the IC695CPE330, Proficy Machine Edition software is typically used. As a user, you can choose to program the controller in any of several different languages. Depending on what you want to do with industrial-scale automation, you can program with ladder diagrams, function block diagrams, structured text, or C. You can also create symbolic variables with confidence.

This module is the controller that supports other RX3i I/O and smart option modules. Its CPU can hold up to 512 blocks, each with a capacity of up to 128 KB.

The IC695CPE330 comes with 64 MB of user memory, 64 MB of program memory, and a pair of separate high-speed Ethernet Lans labeled LAN1 and LAN2. The LAN1 uses a dedicated RJ-45 (sometimes written RJ45) connector. LAN2 uses a pair of internal switching connectors. Both Lans are served by dedicated microprocessors and network interface controllers, so the Ethernet involved operates independently of controller logic and I/O scanning. The Ethernet interface on the controller automatically detects data rates, communication modes, and cabling arrangements.

Each of the two Lans can run up to 48 SRTP (Secure Real-time Transport Protocol) server connections simultaneously. The controller supports three different serial protocols: Modbus RTU slave, serial I/O, and SNP slave.

Notches in the controller's metal housing and labels on the panel make connection and wiring options clear at a glance. The controller is designed to synchronize data while enabling multiple layers of communication. It also allows you to transfer data between USB 2.0 removable data storage devices.

The GE Fanuc IC695CPE330 CPU is an industrial central processing unit manufactured by GE Fanuc and used as part of the GE RX3i PACSystems family of industrial machine control systems. The IC695CPE330 CPU can hold up to 512 program blocks, each with a data capacity of up to 128 KB. Users can configure and program the IC695CPE330 CPU with the machine version of Proficy Software. This central processing unit can be programmed using a function block diagram, letter diagram, or structured text setting, depending on its intended application. It comes with 64 MB of user memory and an equal amount of program memory.

The GE Fanuc RX3i PACSystems IC695CPE330 CPU does not come with any serial communication ports. However, it does come with an RJ45 Ethernet port that can handle communication speeds of 10 Mbaud, 100 Mbaud, or 1000 Mbaud. The IC695CPE330 CPU supports two high-speed Ethernet Lans that can operate independently, labeled LAN1 and LAN2. The LAN1 uses the CPU's RJ45 Ethernet port, while the LAN2 uses a pair of internally switched connectors. Both Ethernet Lans are capable of handling up to 48 secure real-time Transport Protocol or SRTP server connections simultaneously. The processor inside the IC1CPE695 CPU is a 330.1 GHz dual-core processor. The CPU is designed to be installed in a GE universal backplane, which features 6K discrete and analog I/O points.

IC695CPE330 中央处理器 不附带任何串行通信端口
