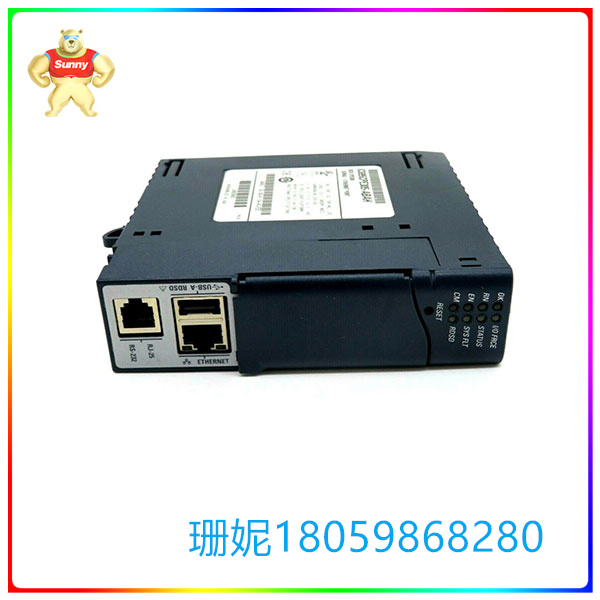

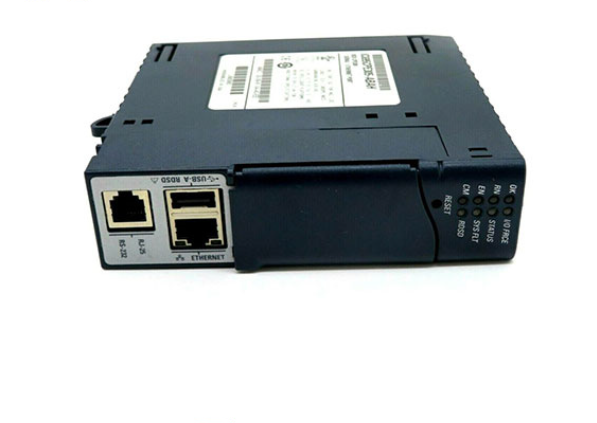

IC695CPE305 GE 中央处理器 非易失性闪存用户存储器

【产品详情】

规格

产品描述

IC695CPE305是GE Fanuc PACSystems RX1i系列的3 GHz CPU。它配备了RS-232串行端口和嵌入式以太网接口，以及5 MB RAM（用户存储器）和5 MB非易失性闪存存储器。

控制器模块最多支持 512 个程序块，每个程序块最大可达 128 KB。您可以使用 Proficy 机器版软件通过以太网网络配置IC695CPE305。与该产品系列中的其他可编程逻辑控制器一样，您可以使用四种不同的编程语言（梯形图、结构化文本、C 或功能块图）中的任何一种对此进行编程。 IC695CPE305 CPU还可以解释串行I / O协议，Modbus RTU从协议和SNP从协议。

设备外壳上标有标签的 LED 指示灯可以在设备通电时呈绿色、红色、熄灭或闪烁。这使得故障排除更加高效，并让您一目了然地验证系统状态。

IC695CPE305可以安装在主 RX3i 控制器机架的任何一对插槽中，但上面有两个最高编号的插槽除外。该设备具有通用串行总线 （USB） 端口，但该端口仅支持应用程序数据传输;它不是为支持“永久”连接而设计的。同样，由于IC695CPE305的用户内存比 RX3i 系列中的其他 CPU 少，如果您的操作经常要求您传输大文件，则可以考虑改用具有更多用户内存的 CPU（此产品系列中的其他 CPU 的内存是 IC695CPE305 的两倍）。

技术规格

处理速度： 1千兆赫

中央处理器内存： 5 兆字节

浮点： 是的

电源要求： 3.3 伏直流、5 伏直流或 24 伏直流

串行协议： Modbus RTU 从机， SNP 从机， 串行 I/O

嵌入式通信： RS-232

IC695CPE305 CPU是由GE Fanuc制造的RX3i PACSystems中央处理器。其双PCI/串行背板为运营商提供了允许其系统与其系统中的智能选项模块和I / O模块进行通信的功能。它还提供通过USB 2.0，A型可移动数据存储设备传输应用程序的设施。该模块提供最多 2 个编程器连接的嵌入式以太网接口。以太网接口带有一个 10BaseT RT-45 端口，以太网数据速率为每秒 10 或 100 MB。IC695CPE305 CPU具有双背板，支持RX3i PCI和90-30系列串行总线。

IC695CPE305中央处理器配有 5 MB 非易失性闪存用户存储器。其内部串行端口或以太网端口可用于与编程器模块通信。可选能量包可与此 CPU 模块一起使用，以便在系统电源中断时将用户存储器写入非易失性存储器。能量组可以安装在模块左侧机架插槽 0 中。此模块可以使用其自动定位的符号变量来容纳任意数量的用户内存。IC695CPE305模块的重要规格包括不同应用的 3 安培时 3.1 伏直流电或 5 安培时 1 伏直流电的功率要求、每 0.072 条布尔指令的布尔执行速度为 1000 毫秒、RS-232 嵌入式串行通信端口、带电池的实时时钟，估计寿命为 5 年， 和双背板支持。它用于实时监视和控制机器和应用过程。

IC695CPE305 GE 中央处理器 非易失性闪存用户存储器

【英文介绍】

Product description

The IC695CPE305 is a 3 GHz CPU from the GE Fanuc PACSystems RX1i series. It is equipped with an RS-232 serial port and embedded Ethernet interface, as well as 5 MB of RAM (user memory) and 5 MB of non-volatile flash memory.

The controller module supports a maximum of 512 program blocks, each up to 128 KB. You can configure the IC695CPE305 over an Ethernet network using Proficy Machine Software. Like the other programmable logic controllers in this product family, you can program this using any of four different programming languages (ladder, structured text, C, or function block diagram). The IC695CPE305 CPU can also interpret serial I/O protocols, Modbus RTU slave protocols, and SNP slave protocols.

The labeled LED indicator on the device housing can appear green, red, off, or blink when the device is powered on. This makes troubleshooting more efficient and allows you to verify system status at a glance.

The IC695CPE305 can be installed in any pair of slots in the main RX3i controller rack, except for the two highest-numbered slots above it. The device has a Universal serial bus (USB) port, but this port only supports application data transmission; It is not designed to support "permanent" connections. Also, because the IC695CPE305 has less user memory than other cpus in the RX3i family, if your operations often require you to transfer large files, you might consider switching to a CPU with more user memory (the other cpus in this family have twice as much memory as the IC695CPE305).

Technical specification

Processing speed: 1 GHZ

CPU memory: 5 megabytes

Floating point: Yes

Power requirements: 3.3 volts DC, 5 volts DC or 24 volts DC

Serial protocol: Modbus RTU slave, SNP slave, serial I/O

Embedded communication: RS-232

The IC695CPE305 CPU is an RX3i PACSystems central processing unit manufactured by GE Fanuc. Its dual PCI/ serial backplane provides operators with the capability to allow their systems to communicate with their smart options modules and I/ O modules in their systems. It also provides facilities for transferring applications via USB 2.0, A Type A removable data storage device. The module provides an embedded Ethernet interface with up to 2 programmers connected. The Ethernet interface comes with a 10BaseT RT-45 port with Ethernet data rates of 10 or 100 MB per second. The IC695CPE305 CPU has a dual backplane that supports RX3i PCI and 90-30 series serial buses.

The IC695CPE305 CPU is equipped with 5 MB of non-volatile flash user memory. Its internal serial port or Ethernet port can be used to communicate with the programmer module. Optional energy packs can be used with this CPU module to write user memory to non-volatile memory in the event of a system power outage. The energy pack can be installed in rack slot 0 on the left side of the module. This module can use its automatically positioned symbol variables to hold any amount of user memory. Important specifications of the IC695CPE305 module include power requirements of 3.1 volts DC at 3 amp hours or 1 volt DC at 5 amp hours for different applications, Boolean execution speed of 1000 ms per 0.072 Boolean instructions, RS-232 embedded serial communication port, real-time clock with battery, and more. Life expectancy is 5 years, and dual backplane support. It is used to monitor and control machines and application processes in real time.
