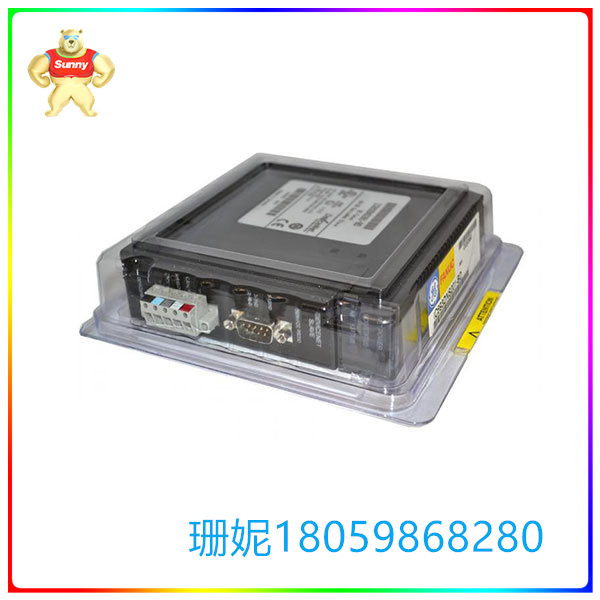

IC693DNS201 通信模块 GE   有RS-232串行端口

【产品详情】

GE Fanuc IC693DNS201模块是一个功能强大的通信模块，与 PACSystems RX3i 组件和 GE 90-30 系列的可编程逻辑控制器一起使用。该模块用于在 DeviceNet 网络上进行通信，并在从属模式下作为网络服务器运行。IC693DNS201模块配有RS-232串行端口，用于固件升级，这对于设备的正常运行非常重要。例如，DeviceNet 模块的总线可以使用外部电源，有时需要在电源关闭时循环供电到可编程控制器，并且对网络上的主模块和从模块进行固件升级可以解决此类问题。RS-232串行端口有9个引脚和一个D型公连接器，可实现安全连接。

IC693DNS201 DeviceNet 通信模块提供高级故障报告，并支持 PLC 寄存器。模块安装在系统的机架中，可以安装到任何插槽中，插槽 0 和 1 除外。IC693DNS201模块还支持多达 2 个 DeviceNet I/O 消息传递连接，并且支持某些应用程序所需的显式消息传递。该模块专为处理标准数据速率而设计，它可以传输高达 255 字节的数据用于输入或输出。IC693DNS201模块的典型背板电流消耗额定值为 450 毫安，电压为 5 伏直流。90-30 系列模块的指定工作温度范围为 0 至 60 摄氏度或 32 至 140 华氏度，而其存储温度范围为 -40 至 85 摄氏度或 -40 至 185 华氏度。

IC693DNS201 通信模块 GE   有RS-232串行端口

【英文介绍】

The GE Fanuc IC693DNS201 module is a powerful communication module used with PACSystems RX3i components and GE 90-30 series programmable logic controllers. This module is used to communicate on the DeviceNet network and runs as a network server in slave mode. The IC693DNS201 module is equipped with an RS-232 serial port for firmware upgrades, which is important for the proper operation of the device. For example, the bus of the DeviceNet module can use an external power supply, which sometimes needs to be cycled to the programmable controller when the power is off, and a firmware upgrade to the master and slave modules on the network can solve such problems. The RS-232 serial port has 9 pins and a type D male connector for secure connection.

The IC693DNS201 DeviceNet communication module provides advanced fault reporting and supports PLC registers. Modules are installed in the system's rack and can be installed into any slot except slots 0 and 1. The IC693DNS201 module also supports up to 2 DeviceNet I/O messaging connections and supports explicit messaging required by some applications. The module is designed to handle standard data rates and it can transmit up to 255 bytes of data for input or output. The typical backplane current consumption rating of the IC693DNS201 module is 450 MA and the voltage is 5 V DC. The 90-30 series modules have a specified operating temperature range of 0 to 60 degrees Celsius or 32 to 140 degrees Fahrenheit, while their storage temperatures range from -40 to 85 degrees Celsius or -40 to 185 degrees Fahrenheit.

IC693DNS201 通信模块 GE   有RS-232串行端口
