IC693DNM200 GE 单插槽通信模块 模块服务端口

【产品详情】

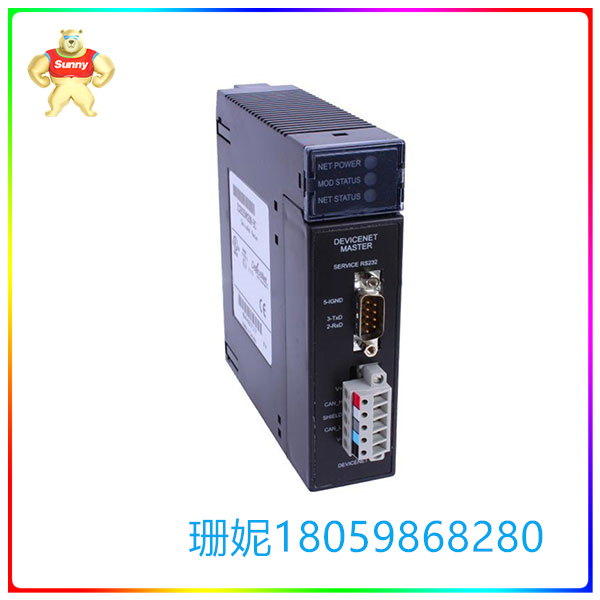

IC693DNM200是一个 DeviceNet Master Module。该模块是一个单插槽通信模块，是 90-30 系列可编程逻辑控制器 （PLC） 平台的一部分，该平台以前由 GE Fanuc 制造，现在由艾默生自动化制造。该模块配有单个DeviceNet终端。它还具有一 （1） 个 RS232 9 针 D 壳母端口，用作模块服务端口。

IC693DNM200支持DeviceNet协议的所有数据速率，特别是125K，250K和500K传输速率。每个从设备的主设备最多可传输 255 字节的输入数据和 255 字节的输出数据，最多可以将 3972 字节的输入数据和 3972 字节的输出数据传输到该主模块。此外，使用此模块总共可以建立 126 个 I/O 连接，因为它能够通信多达 63 个从设备，其中每个从设备最多可分配两 （2） 个 I/O 站。该模块支持和可配置的数据连接是轮询、选通、循环或 COS。 此 DeviceNet 主模块还支持显式消息传递、未连接消息管理器 （UCMM） 和每个从站单元一 （1） 个代理连接。

此外，该模块可以在双模式下运行，同时作为主站和从站。可以配置专门在通信丢失期间的故障行为，以便在发生上述错误时提供可接受的系统反应。该模块还带有可升级的固件，允许通过RS232服务端口下载模块更新和错误修复。

IC693DNM200模块是由GE Fanuc设计和制造的DeviceNet主模块。该装置是90-30系列的一部分，具有多种用于消息传递和数据传输应用的集成功能。这些功能中的大多数都是自动的，并且该装置在包括其他设备和主机的DeviceNet网络上工作。IC693DNM200模块可以安装在 90-30 系列或 PACSystems RX3i 系统的主机架上，但不适合远程或扩展机架。IC693DNM200 DeviceNet 模块有 32 个输出点，支持 125K、250K 和 500K 波特等标准数据速率。输出以 4 个为一组排列，每组涵盖 8 个点。该装置的额定电压为 12 至 24 伏直流电（正逻辑），其背板在 450 伏直流电时消耗 5 毫安的电流。

GE 系列 90-30 DeviceNet IC693DNM200 模块的输出电流为每点 0.5 安培，而其浪涌电流为 5.4 安培，持续时间为 10 毫秒。对于输出电流，应注意每组的最终输出电流为4安培，而每组共模引脚的输出电流不超过3安培。除此之外，导通状态压降为 0.3 伏直流电，而开/关响应时间不超过 0.5 毫秒。IC693DNM200模块非常可靠，可在 0 至 60 摄氏度（32 至 140 华氏度）的温度范围内运行。除此之外，该装置的指定存储温度范围为 -40 至 85 摄氏度（-40 至 185 华氏度）。

IC693DNM200 GE 单插槽通信模块 模块服务端口

【英文介绍】

IC693DNM200 is a DeviceNet Master Module. The module is a single-slot communication module that is part of the 90-30 series Programmable Logic Controller (PLC) platform, which was previously manufactured by GE Fanuc and is now manufactured by Emerson Automation. The module is equipped with a single DeviceNet terminal. It also has one (1) RS232 9-pin D-case female port used as a module service port.

The IC693DNM200 supports all data rates of the DeviceNet protocol, especially 125K, 250K and 500K transfer rates. The master device of each slave device can transmit up to 255 bytes of input data and 255 bytes of output data, and up to 3972 bytes of input data and 3972 bytes of output data can be transferred to the master module. In addition, a total of 126 I/O connections can be established using this module, as it is capable of communicating up to 63 slave devices, each of which can be assigned a maximum of two (2) I/O stations. The data connections supported and configurable by the module are polling, gating, loop or COS. This DeviceNet master module also supports explicit messaging, unconnected message Manager (UCMM), and one (1) proxy connections per slave cell.

In addition, the module can operate in dual mode, acting as both master and slave stations. Failure behavior can be configured specifically during periods of communication loss to provide an acceptable system response in the event of the above errors. The module also comes with upgradeable firmware that allows module updates and bug fixes to be downloaded via the RS232 service port.

The IC693DNM200 module is the main DeviceNet module designed and manufactured by GE Fanuc. The device is part of the 90-30 series with a variety of integrated functions for messaging and data transfer applications. Most of these functions are automatic, and the device works on a DeviceNet network that includes other devices and hosts. The IC693DNM200 module can be mounted on the main frame of the 90-30 series or PACSystems RX3i systems, but is not suitable for remote or extension racks. The IC693DNM200 DeviceNet module has 32 output points and supports standard data rates of 125K, 250K and 500K baud. The outputs are arranged in groups of 4, each covering 8 points. The unit is rated for 12 to 24 volts DC (positive logic), and its backplane consumes 5 mA at 450 volts DC.

The GE Series 90-30 DeviceNet IC693DNM200 module has an output current of 0.5 amps per point and a surge current of 5.4 amps for a duration of 10 milliseconds. For output currents, it should be noted that the final output current of each set is 4 amps, while the output current of each set of common-mode pins does not exceed 3 amps. In addition, the on-state voltage drop is 0.3 volts DC, while the on/off response time does not exceed 0.5 ms. The IC693DNM200 module is very reliable and can operate in a temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit). In addition to this, the device has a specified storage temperature range of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit).

IC693DNM200 GE 单插槽通信模块 模块服务端口
