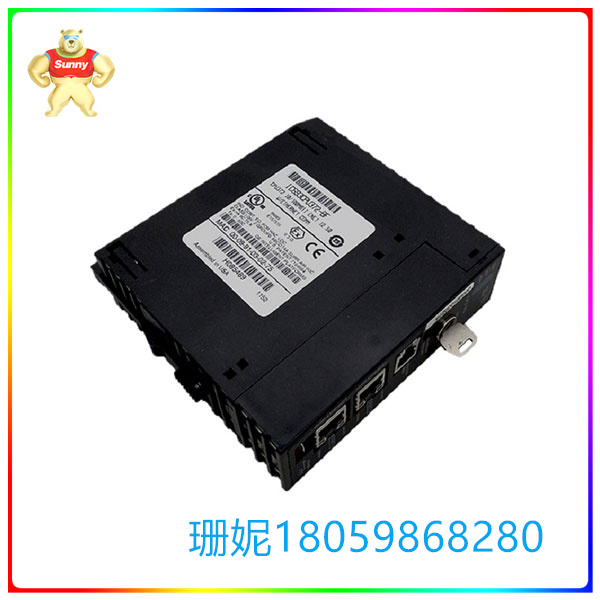

IC693CPU372 以太网通信接口 GE

【产品详情】

IC693CPU372是 TCP I/P 以太网通信接口。该模块主要用于通过以太网实现通信并支持系统协议，如Modbus TCP服务器/客户端和工业以太网。该模块可用于使用以太网全局数据 （EGD）、SRTP 和 SRTP 客户端定期执行数据交换。

IC693CPU372支持完整的 PLC 编程和配置服务。它带有双以太网端口，共享相同的IP地址，并具有与内部以太网交换机相同的功能，允许菊花链连接，用于网络和实现设备级环网（DLR）拓扑。每个端口都支持网络自动感应，无需根据现有网络的速度分配模块。

该IC693CPU372配备了时钟速度为133 MHz的专用处理器。对于配置，内置Web服务器允许远程连接配置站，可用于将简单配置引入模块以及模块监控。对于可编程逻辑控制器（PLC）功能的编程，IC693CPU372使用Proficy机器版软件包的PLC逻辑开发人员的机器版进行配置。

IC693CPU372支持 它支持 2048 个离散输入、2048 个离散输出、128 - 32,640 个模拟输入字和 128 - 32640 个模拟输出字（最大值），总用户存储器为 240 KB。此内置存储器为随机存取存储器 （RAM） 类型，可备份电池。可选的非易失性存储器或闪存可以添加，以提供不需要电池能量来保留存储器内容的存储器。

IC693CPU372模块由GE Fanuc设计和制造。该工业通信模块用于通过 TCP/IP 协议运行的工业以太网进行通信。该装置与 GE PLC 设备兼容，这些设备可通过 90-30 系列或 VersaMax 系列获得，或与属于 PACSystems 的 PLC 设备兼容。IC693CPU372模块具有用于以太网通信的集成接口，可与已安装所有必要软件工具的主机一起使用。以太网接口支持多达 3 个不同的 90-30 系列模块，可提供额外的功能。90-30系列可编程逻辑控制器的背板可以使用组合模块来提高整个系统的性能。

IC693CPU372通信模块具有 2048 个输入/输出点，提供 240 KB 的存储容量。与该系列中的大多数类似组件一样，该模块具有80386EX型处理器，旨在用于32位系统。该装置支持通过流行的网络进行通信，如100BaseTX IEEE 802.3和10BaseT网络。为此，该装置包括 2 个具有自动感应功能的屏蔽以太网端口。该装置具有一对以太网连接器、一个工作站管理器功能连接器、LED 状态指示灯、一个主开关和一个重新启动按钮。IC693CPU372模块支持浮点数学、双工模式、简单的配置和编程以及 SRTP 服务器选项。IC693CPU372模块的处理器工作在 133 兆赫兹，它支持 RAM 或闪存进行存储。该装置使用备用电池运行，在 7.4 伏直流电下需要 5 瓦。

IC693CPU372 以太网通信接口 GE

【英文介绍】

IC693CPU372 is a TCP I/P Ethernet communication interface. The module is primarily used to enable communication over Ethernet and support system protocols such as Modbus TCP server/client and Industrial Ethernet. The module can be used to perform regular data exchange using Ethernet Global Data (EGD), SRTP, and SRTP clients.

The IC693CPU372 supports full PLC programming and configuration services. It comes with dual Ethernet ports, shares the same IP address, and has the same functionality as internal Ethernet switches, allowing Daisy chain connections for networking and implementing device-level ring network (DLR) topologies. Each port supports automatic network sensing, eliminating the need to assign modules based on the speed of the existing network.

The IC693CPU372 comes with a dedicated processor with a clock speed of 133 MHz. For configuration, the built-in Web server allows remote connection to configuration stations and can be used to introduce simple configuration into modules as well as module monitoring. For programming of programmable logic controller (PLC) functions, the IC693CPU372 is configured using the PLC Logic Developer's Machine Edition of Proficy Machine Edition software package.

IC693CPU372 Support It supports 2048 discrete inputs, 2048 discrete outputs, 128-32,640 analog input words, and 128-32,640 analog output words (maximum) for a total user memory of 240 KB. This built-in memory is a random access memory (RAM) type that backs up the battery. Optional non-volatile memory or flash memory can be added to provide memory that does not require battery power to retain the contents of the memory.

The IC693CPU372 module is designed and manufactured by GE Fanuc. The industrial communication module is used to communicate over industrial Ethernet running over the TCP/IP protocol. The unit is compatible with GE PLC equipment, which is available through the 90-30 series or VersaMax series, or with PLC equipment belonging to PACSystems. The IC693CPU372 module has an integrated interface for Ethernet communication and can be used with hosts that have all the necessary software tools installed. The Ethernet interface supports up to 3 different 90-30 series modules to provide additional functionality. The backplane of the 90-30 series programmable logic controllers can use combination modules to improve the performance of the entire system.

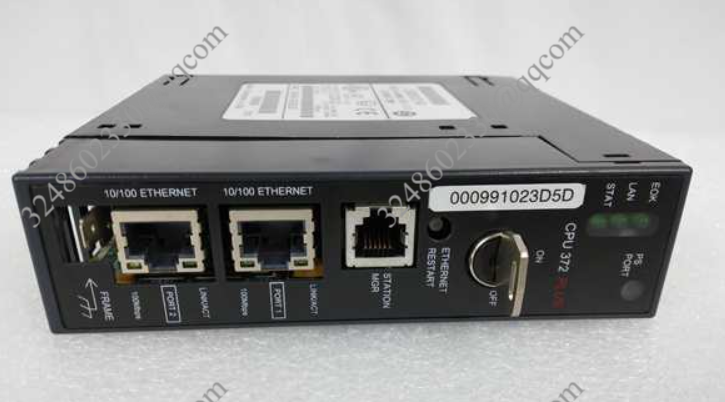

The IC693CPU372 communication module has 2048 input/output points and provides 240 KB of storage capacity. Like most similar components in the series, the module has a type 80386EX processor and is intended for use in 32-bit systems. The device supports communication over popular networks such as 100BaseTX IEEE 802.3 and 10BaseT networks. For this purpose, the device includes two shielded Ethernet ports with automatic sensing functions. The unit features a pair of Ethernet connectors, a workstation manager function connector, LED status indicators, a master switch, and a restart button. The IC693CPU372 module supports floating point math, duplex mode, simple configuration and programming, and SRTP server options. The processor of the IC693CPU372 module operates at 133 MHZ, and it supports RAM or flash memory for storage. The unit runs on a backup battery and requires 5 watts at 7.4 volts direct current.

IC693CPU372 以太网通信接口 GE
