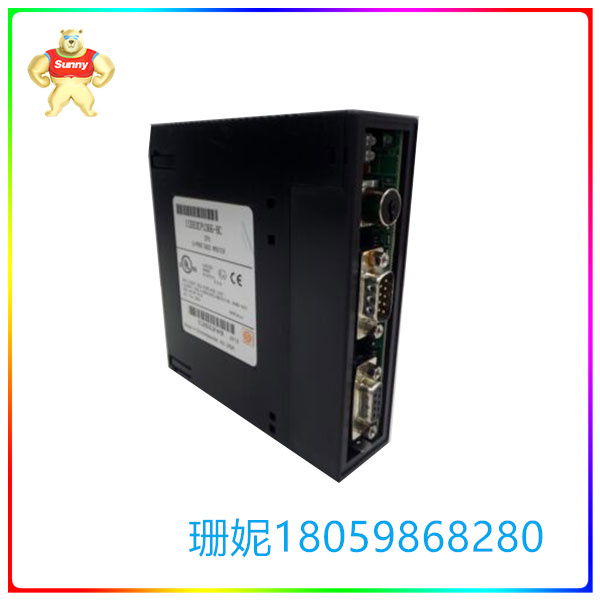

IC693CPU366 GE 带有Profibus主控设备的CPU模块

【产品详情】

GE Fanuc IC693CPU366模块是一个带有Profibus主控设备的CPU模块，用于GE系列90-30 PLC系统。嵌入式Profibus主设备使CPU能够从Profibus网络发送和接收数据。与 Profibus 网络的连接是通过 9 针母 RS-485 端口实现的。Profibus 网络支持的数据速率包括 9.6 kbps、19.2 kbps、500 kbps、1.5 Mbps、3 Mbps、6 Mbps 和 12 Mbps。该模块的电池寿命在10摄氏度下为25个月，在5摄氏度下为5.60个月。IC693CPU366模块可以使用 PLC 版本 5.0 SP1 或更高版本的机器版逻辑开发人员软件进行编程。对于 PLC C 编程，可以使用 PLC C 工具包（版本 4 或更高版本）。串行 RS-232 端口可通过 9 针插头访问，可用于固件升级。

IC693CPU366模块在 5 伏直流时的额定电流消耗为 940 毫安。为了获得最佳性能，IC693CPU366模块周围的空气温度应保持在 0 到 60 摄氏度之间。建议的存储温度范围为 -40 至 85 摄氏度。IC693CPU366模块总共支持 4096 个离散 I/O 点。模块上可用的总寄存器存储器为 240 KB。浮点数学支持可通过固件获得。IC693CPU366模块所基于的微处理器是80386EX微处理器。模块化CPU（如IC693CPU366模块）由焊接到安装在插件模块中的电路板上的CPU、存储器和相关集成电路芯片组成。IC693CPU366 CPU 模块安装在 PLC 底板的插槽 1 中。

IC693CPU366 GE 带有Profibus主控设备的CPU模块

【英文介绍】

The GE Fanuc IC693CPU366 module is a CPU module with Profibus master device for GE series 90-30 PLC systems. The embedded Profibus master device enables the CPU to send and receive data from the Profibus network. The connection to the Profibus network is achieved through a 9-pin female RS-485 port. Data rates supported by the Profibus network include 9.6 kbps, 19.2 kbps, 500 kbps, 1.5 Mbps, 3 Mbps, 6 Mbps, and 12 Mbps. The module has a battery life of 25 months at 10 degrees Celsius and 5.60 months at 5 degrees Celsius. The IC693CPU366 module can be programmed using the machine version Logic Developer software of PLC version 5.0 SP1 or later. For PLC C programming, you can use the PLC C Kit (version 4 or later). The serial RS-232 port is accessible via a 9-pin plug and can be used for firmware upgrades.

The IC693CPU366 module has a rated current consumption of 940 mA at 5 volts DC. For optimal performance, the air temperature around the IC693CPU366 module should be maintained between 0 and 60 degrees Celsius. The recommended storage temperature range is -40 to 85 degrees Celsius. The IC693CPU366 module supports a total of 4096 discrete I/O points. The total register memory available on the module is 240 KB. Floating point math support is available through firmware. The microprocessor on which the IC693CPU366 module is based is the 80386EX microprocessor. A modular CPU, such as the IC693CPU366 module, consists of a CPU, memory, and associated integrated circuit chips soldered to a circuit board mounted in a plug-in module. The IC693CPU366 CPU module is installed in slot 1 of the PLC mainboard.

IC693CPU366 GE 带有Profibus主控设备的CPU模块
