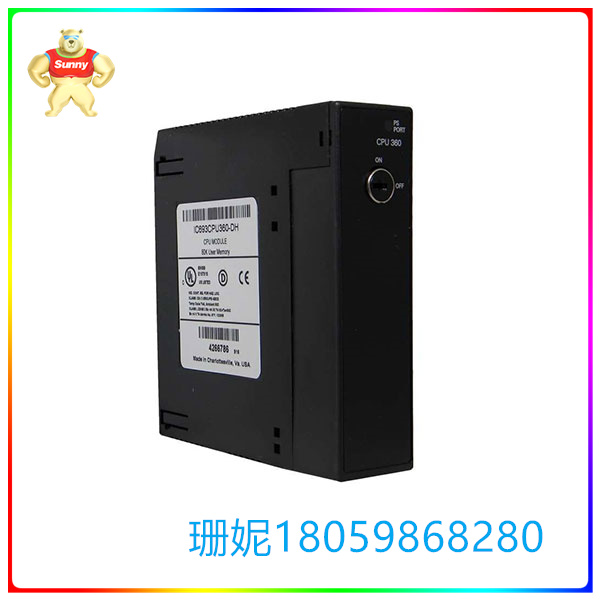

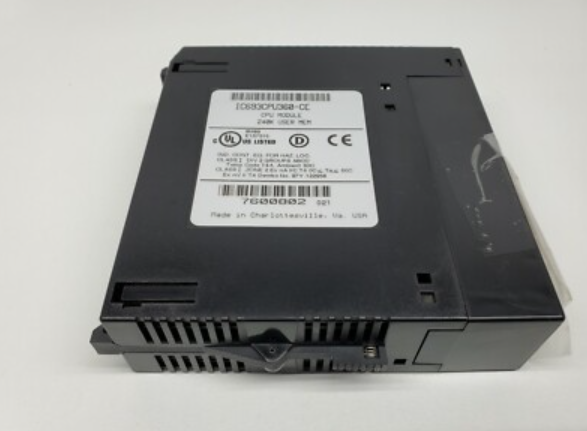

IC693CPU360 GE 中央处理器 单插槽 CPU 模块

【产品详情】

产品描述

GE Fanuc IC693CPU360是一个中央处理器（CPU）360模块。它具有 240 KB 的可配置用户内存。这是一个单插槽 CPU 模块，在 4096 个机架上具有 8 个离散 I/O 点。CPU 360 模块的典型扫描速率为每 0K 逻辑存储器 22.1 mS。虽然该模块没有内置串行端口，但它可以使用PLC电源上的连接器。该模块具有RAM和闪存，与其他IC693模块一样，它与固件v.10.60兼容。该装置与GE Fanuc的90-30系列兼容。将此 CPU 用于 I/O 数量较少的入门级应用程序时，CPU 嵌入到背板中。这使得所有插槽都可用于输入或输出用途。以太网、各种总线模块和控制设备是可以与此 CPU 模块配合使用的一些兼容设备。

中端 CPU 型号是模块化的，它们有各种内存大小可供选择。该系列还包括具有不同性能能力和增强功能的型号，例如可编程协处理器模块支持、超控和电池备份时钟。至于高性能CPU，它们基于最新的386EX处理器。这样可以实现快速计算和高吞吐量。这些模块可以处理多达 4,096 个 I/O 点，它们从 32K 的内存开始，可以用多种标准语言进行编程。IC693CPU360是高性能CPU。

技术规格

处理器速度 ： 25兆赫

I/O 点 ： 2048

寄存器存储器 ： 240千字节

浮点数学： 是的

32 位系统

处理器： 80386EX

GE Fanuc生产IC693CPU360 CPU模块作为中央处理器单元360模块。它具有 240 KB 的可配置用户内存容量，属于 90-30 系列产品线。此 CPU 模块具有单个插槽，它支持 4096 个机架上的总共 8 个独立 I/O。它的典型扫描速率为每 0K 字逻辑存储器 22.1 微秒。虽然GE Fanuc IC693CPU360 CPU 360模块没有内置串行端口，但它能够使用PLC电源上的连接器。该设备具有闪存和RAM，并且还附带固件版本10.60。此CPU 360模块与GE Fanuc系列90-30设备兼容。当 CPU 与具有低 I/O 计数的入门级应用程序一起使用时，CPU 设置在背板中。这样，所有未占用的插槽都可用于输出或输入使用。

可以与GE Fanuc IC693CPU360 CPU模块一起使用的一些设备和产品包括以太网模块，不同的总线模块和各种控制设备。有中端CPU模块，它们有不同的内存大小。此外，有些型号具有不同的性能功能以及改进的功能，例如支持可编程协处理器模块、电池备份时钟和覆盖功能。高性能 CPU 模块基于最新版本的 386EX 处理器。该处理器有助于快速高效的计算以及高吞吐量。IC693CPU360 CPU模块可承受多达4096个I/O点和32K字的内存，并支持不同编程语言的编程。

IC693CPU360 GE 中央处理器 单插槽 CPU 模块

【英文介绍】

Product description

The GE Fanuc IC693CPU360 is a central processing unit (CPU) 360 module. It has 240 KB of configurable user memory. This is a single-slot CPU module with 8 discrete I/O points on 4096 racks. The typical scan rate for a CPU 360 module is 22.1 mS per 0K of logic memory. Although the module does not have a built-in serial port, it can use a connector on the PLC power supply. The module has RAM and flash memory, and like other IC693 modules, it is compatible with firmware v.10.60. The device is compatible with GE Fanuc's 90-30 series. When using this CPU for entry-level applications with a low amount of I/O, the CPU is embedded in the backplane. This makes all sockets available for input or output purposes. Ethernet, various bus modules and control devices are some of the compatible devices that can be used with this CPU module.

Mid-range CPU models are modular and they come in a variety of memory sizes to choose from. The family also includes models with different performance capabilities and enhancements, such as programmable coprocessor module support, override, and battery backup clock. As for high-performance cpus, they are based on the latest 386EX processors. This allows for fast calculations and high throughput. These modules can handle up to 4,096 I/O points, they start with 32K of memory and can be programmed in multiple standard languages. The IC693CPU360 is a high-performance CPU.

Technical specification

Processor speed: 25 MHZ

I/O point: 2048

Register memory: 240 kilobytes

Floating point math: Yes

32-bit system

Processor: 80386EX

GE Fanuc produces the IC693CPU360 CPU module as the CPU unit 360 module. It has a configurable user memory capacity of 240 KB and belongs to the 90-30 series product line. This CPU module has a single slot that supports a total of 8 independent I/ OS on 4096 racks. Its typical scan rate is 22.1 microseconds per 0K word logic memory. Although the GE Fanuc IC693CPU360 CPU360 module does not have a built-in serial port, it is capable of using connectors on the PLC power supply. The device has flash memory and RAM, and also comes with firmware version 10.60. This CPU 360 module is compatible with GE Fanuc Series 90-30 devices. When the CPU is used with entry-level applications with low I/O counts, the CPU is set in the backplane. This way, all unoccupied slots are available for output or input use.

Some of the devices and products that can be used with GE Fanuc IC693CPU360 CPU modules include Ethernet modules, different bus modules, and various control devices. There are mid-range CPU modules, which have different memory sizes. In addition, some models have different performance features as well as improved features, such as support for programmable coprocessor modules, battery backup clocks, and overlay capabilities. The high-performance CPU module is based on the latest version of the 386EX processor. The processor facilitates fast and efficient computation as well as high throughput. The IC693CPU360 CPU module can withstand up to 4096 I/O points and 32K words of memory, and supports programming in different programming languages.
