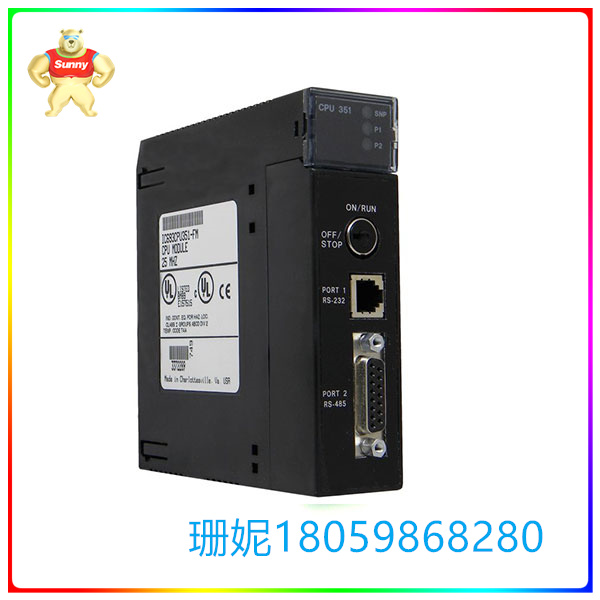

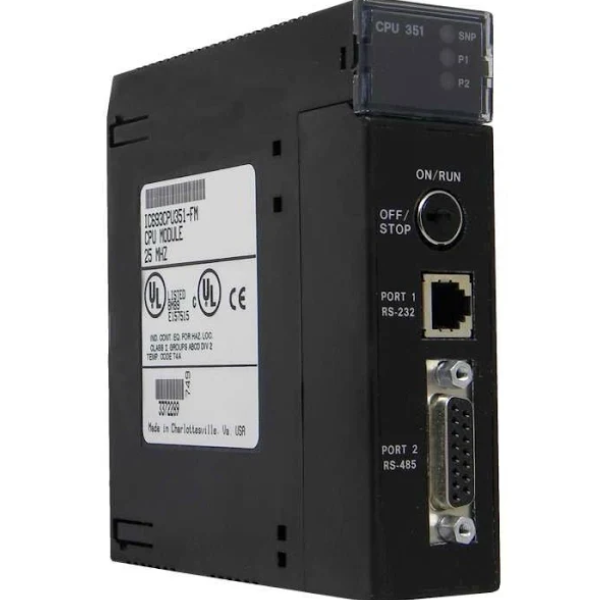

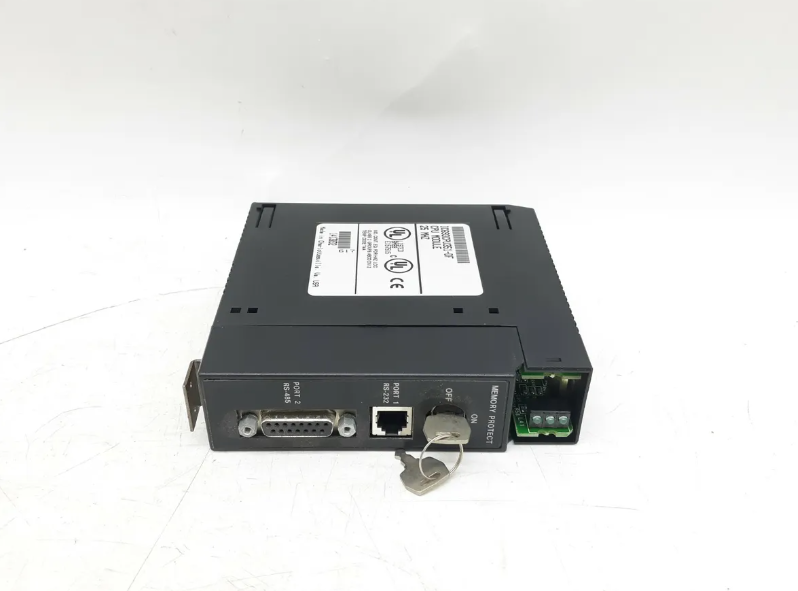

IC693CPU351 单插槽的CPU模块 GE

【产品详情】

产品描述

GE Fanuc IC693CPU351是一个带有单插槽的CPU模块。该模块使用的最大功率为 5V DC 电源，所需负载为电源 890 mA。该模块以 25 MHz 的处理速度执行其功能，使用的处理器类型为 80386EX。此外，该模块必须在 0°C –60 °C 的环境温度范围内工作。 该模块还配有240K字节的内置用户存储器，用于将程序输入模块。可用于用户内存的实际大小主要取决于分配给 %AI、%R 和 %AQ 的数量。

该IC693CPU351利用闪存和RAM等内存存储来存储数据，并与PCM / CCM兼容。它还支持固件版本 9.0 和更高版本版本的浮点数学等功能。它包含2000多个计时器或计数器，用于测量经过的时间。IC693CPU351还配备了电池备份时钟。此外，该模块实现的扫描速率为 0.22 m-sec/1K。 IC693CPU351包含 1280 位的全局存储器和 9999 字的寄存器存储器。 此外，为模拟输入和输出提供的存储器是固定的，即9999字。还为 4096 位和 256 位的内部和临时输出线圈分配内存。IC693CPU351由三个串行端口组成，支持SNP从机和RTU从机。

技术规格

处理器速度 ： 25兆赫

I/O 点 ： 2048

寄存器存储器 ： 240千字节

浮点数学： 是的

32 位系统

处理器： 80386EX

GE Fanuc IC693CPU351 90-30系列中央处理器（CPU）是用于IC693 PLC系统的单插槽高性能CPU模块。该 CPU 模块属于 GE 系列 90-30 高性能 CPU，专为复杂应用而设计。IC693CPU351 CPU 采用英特尔 386EX 微处理器，处理速度高达 25 兆赫，可实现快速计算能力和高吞吐量。IC693CPU351 CPU 可支持多达 4096 个离散 I/O 连接（2,048 个离散输入和 2,048 个离散输出）以及 2048 个模拟输入和 512 个模拟输出。此 CPU 模块具有高达 80 KB 的用户逻辑存储器，可升级到 246 KB 的用户逻辑存储器（固件版本 9.0 或更高版本），并且与标准中级 CPU 不同，它支持浮点数学和布尔运算。IC693CPU351 CPU 的实际用户内存大小可以通过为 %R、%AI 和 %AQ 可配置字内存类型配置的数量来确定。IC693CPU351 CPU使用RAM和闪存作为标准内存，并支持PCM / CCM模块。

GE Fanuc 90-30系列IC693CPU351 CPU除了支持标准梯形逻辑和SFC编程语言外，还支持C编程语言，并且可以配置基于Windows的CIMPLICITY控制软件。IC693CPU351 CPU 的典型扫描速率为每 0 KB 逻辑操作 22.1 毫秒，并带有多达 2000 个计数器/计时器值。它还配有一个电池备份的内置时钟和 3 个串行通信端口，支持 SNP/SNPX 从机连接、RTU 从机配置和 SNP/SNPX 主/从配置。IC693CPU351 CPU 是单插槽 CPU，每个系统最多支持 8 个底板（1 个 CPU 底板和 7 个扩展和/或远程底板）。它具有 5 伏直流背板电压要求和 890 毫安的最大背板电流消耗。

IC693CPU351 单插槽的CPU模块 GE

【英文介绍】

Product description

The GE Fanuc IC693CPU351 is a CPU module with a single slot. The module uses a maximum power of 5V DC power supply and the required load is 890 mA of power supply. The module performs its functions at a processing speed of 25 MHz, using a processor type of 80386EX. In addition, the module must operate in the ambient temperature range of 0°C - 60 °C. The module also comes with 240K bytes of built-in user memory for entering programs into the module. The actual amount of memory available to the user depends primarily on the amount allocated to %AI, %R, and %AQ.

The IC693CPU351 utilizes memory storage such as flash and RAM to store data and is compatible with PCM/CCM. It also supports features such as floating point math in firmware version 9.0 and later. It contains more than 2,000 timers or counters to measure the elapsed time. The IC693CPU351 also comes with a battery backup clock. In addition, the module achieves a scan rate of 0.22m-sec /1K. The IC693CPU351 contains 1280 bit global memory and 9999 word register memory. In addition, the memory provided for analog input and output is fixed, i.e. 9999 words. Memory is also allocated for 4096-bit and 256-bit internal and temporary output coils. The IC693CPU351 consists of three serial ports and supports SNP slave and RTU slave.

Technical specification

Processor speed: 25 MHZ

I/O point: 2048

Register memory: 240 kilobytes

Floating point math: Yes

32-bit system

Processor: 80386EX

GE Fanuc IC693CPU351 Series 90-30 Central Processing Unit (CPU) is a single slot high performance CPU module for IC693 PLC system. The CPU module belongs to the GE series 90-30 high-performance cpus designed for complex applications. The IC693CPU351 CPU uses an Intel 386EX microprocessor with processing speeds up to 25 MHZ for fast computing power and high throughput. The IC693CPU351 CPU can support up to 4096 discrete I/O connections (2,048 discrete inputs and 2,048 discrete outputs) as well as 2048 analog inputs and 512 analog outputs. This CPU module has up to 80 KB of user logic memory, upgradable to 246 KB of user logic memory (firmware version 9.0 or later), and unlike standard mid-level cpus, it supports floating-point math and Boolean operations. The actual user memory size of the IC693CPU351 CPU can be determined by the number of configurable word memory types for %R, %AI, and %AQ. The IC693CPU351 CPU uses RAM and flash memory as standard memory and supports PCM/CCM modules.

The GE Fanuc 90-30 Series IC693CPU351 CPU supports the C programming language in addition to the standard ladder logic and SFC programming language, and can be configured with Windows-based CIMPLICITY control software. The typical scan rate of the IC693CPU351 CPU is 22.1 ms per 0 KB logical operation with up to 2000 counter/timer values. It also comes with a built-in clock for battery backup and 3 serial communication ports that support SNP/SNPX slave connection, RTU slave configuration, and SNP/SNPX master/slave configuration. The IC693CPU351 CPU is a single-socket CPU that supports up to eight backboards per system (one CPU backboard and seven extension and/or remote backboards). It has a 5-volt DC backplane voltage requirement and a maximum backplane current consumption of 890 mA.
