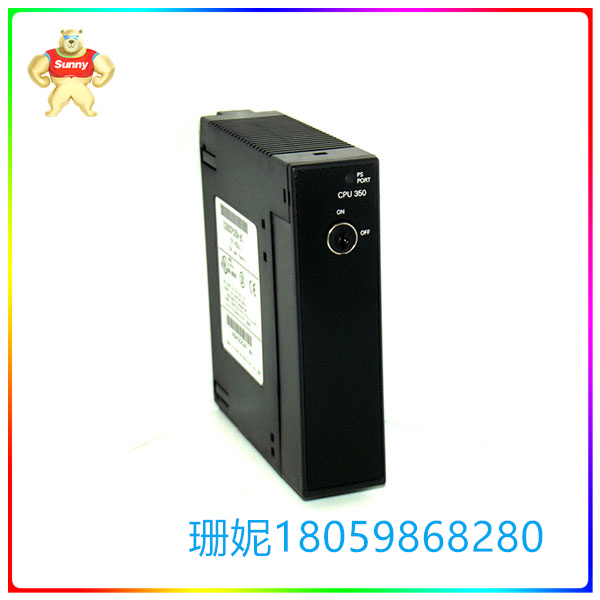

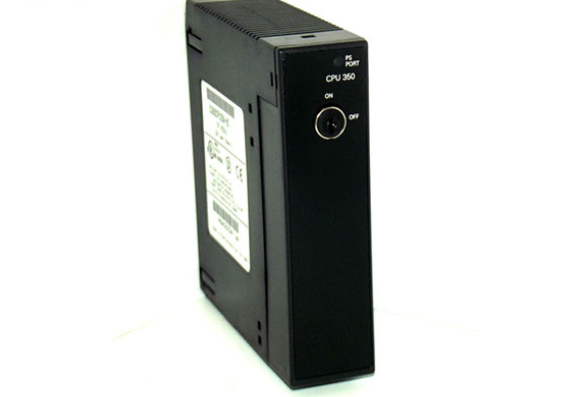

IC693CPU350 GE 中央处理器模块 单插槽 CPU 模块

【产品详情】

IC693CPU350是GE Fanuc系列90-30控制器。该控制器是模块化控制系统的一部分，具有单插槽宽模块，能够控制多达八 （8） 个底板，包括安装 CPU 的本地底板。

该IC693CPU350设计有 32K 字节的不可配置用户存储器。多达 2048 个离散输入、2048 个离散输出、2048 个模拟输入字和 512 个模拟输出字。这种 I/O 计数密度使该控制器有资格安装在大中型应用中。

IC693CPU350没有通信端口。该控制器利用安装在电源中的通信端口，其RS485通信接口允许连接到编程工作站，手持编程器（HHP）和能够通过RS485通信标准交换数据的设备。此端口支持 SNP/SNP-X 从属协议。

IC693CPU350使用多种选项进行配置。它可以使用LogicMaster90，Control，VersaPro和CIMPLICITY Machine Edition Logic Developer应用软件应用程序进行配置。此外，可以使用传统的手持式编程器 （HHP） 将程序写入此控制器。

该IC693CPU350有一个内部处理器，即80386EX，布尔触点的典型扫描速率为每0K逻辑22.1毫秒，处理速度为25 MHz。该控制器支持覆盖功能、通过定期子例程功能中断、PCM/CCM 兼容性和浮点数学。安装附加通信模块的可选通信协议IC693CPU350支持有以太网、FIP、Profibus、GBC、GCM、GCM+选项模块。

IC693CPU350 CPU 是单插槽 CPU 模块。每个系统有 8 个底板，包括 CPU 底板和 7 个扩展或远程底板。IC693CPU350 CPU 需要 670 毫安的电流和 5 伏直流电压输入。CPU 模块的典型扫描速率为每 0 KB 逻辑 22.1 毫秒。

最大用户程序内存为 32 KB。离散输入点的容量为 2048 个单词，离散输出点的容量为 2048 个单词。离散全局内存为 1280 位。寄存器存储器为9999字。模拟输入和模拟输出的额定值分别为 2048 字和 512 字。系统寄存器为28个字。IC693CPU350 CPU 支持 2000 多个计时器和计数器。CPU 模块还支持移位寄存器。IC693CPU350 CPU上有一个集成的串行端口，支持SNP / SNPX从协议。串行端口需要一个 PCM 模块来支持 RTU 主站，需要一个 CMM 模块来支持 SNP/SNP-X 主站、RTU 从站协议或 CCM。闪存和 RAM 内存在IC693CPU350 CPU 中都可用。IC693CPU350 CPU 还支持浮点数学运算。IC693CPU350 CPU 的工作温度范围为 0 至 60 摄氏度。

IC693CPU350 GE 中央处理器模块 单插槽 CPU 模块

【英文介绍】

The IC693CPU350 is a GE Fanuc series 90-30 controller. The controller is part of a modular control system with a single-slot wide module capable of controlling up to eight (8) backboards, including the local backboard on which the CPU is mounted.

The IC693CPU350 is designed with 32K bytes of non-configurable user memory. Up to 2048 discrete inputs, 2048 discrete outputs, 2048 analog input words and 512 analog output words. This I/O count density makes the controller eligible for installation in medium to large sized applications.

The IC693CPU350 does not have a communication port. The controller utilizes a communication port installed in the power supply and its RS485 communication interface allows connection to programming workstations, handheld programmers (HHP) and devices capable of exchanging data over the RS485 communication standard. This port supports the SNP/SNP-X slave protocol.

The IC693CPU350 is configured with a variety of options. It can be configured using LogicMaster90, Control, VersaPro, and CIMPLICITY Machine Edition Logic Developer application software applications. In addition, programs can be written to this controller using a traditional handheld programmer (HHP).

The IC693CPU350 has an internal processor, 80386EX, with a typical sweep rate of 22.1 milliseconds per 0K logic for Boolean contacts and a processing speed of 25 MHz. The controller supports overlay functionality, function interrupts through periodic subroutines, PCM/CCM compatibility, and floating point math. The optional communication protocol IC693CPU350 for installing additional communication modules supports Ethernet, FIP, Profibus, GBC, GCM, and GCM+ option modules.

The IC693CPU350 CPU is a single-slot CPU module. Each system has eight backboards, including CPU backboards and seven extension or remote backboards. The IC693CPU350 CPU requires 670 mah of current and 5 volts DC input. The typical scan rate for CPU modules is 22.1 milliseconds per 0 KB of logic.

The maximum user program memory is 32 KB. Discrete input points have a capacity of 2048 words, and discrete output points have a capacity of 2048 words. The discrete global memory is 1280 bits. Register memory is 9999 words. Analog inputs and outputs are rated at 2048 words and 512 words, respectively. The system register is 28 words. The IC693CPU350 CPU supports more than 2000 timers and counters. The CPU module also supports shift registers. The IC693CPU350 CPU has an integrated serial port that supports SNP/SNPX slave protocols. The serial port requires a PCM module to support the RTU master, and a CMM module to support the SNP/SNP-X master, RTU slave protocol, or CCM. Both flash memory and RAM memory are available in the IC693CPU350 CPU. The IC693CPU350 CPU also supports floating point math. The operating temperature range of the IC693CPU350 CPU is 0 to 60 degrees Celsius.
