产品描述

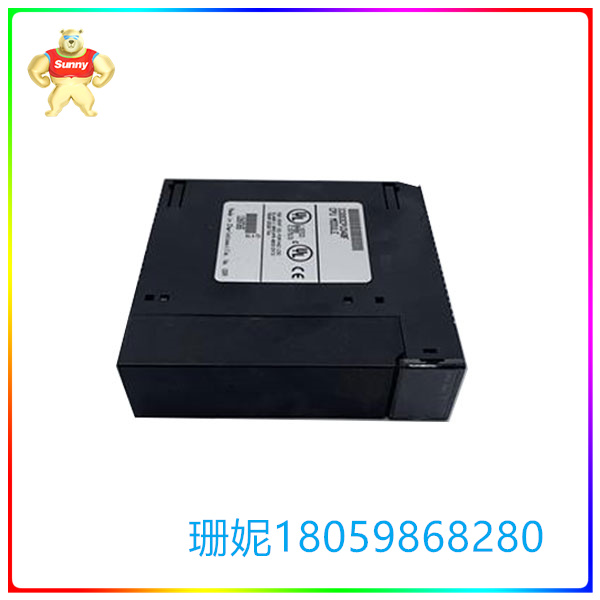

IC693CPU340是一个单插槽 CPU 340 模块，具有 32 KB 用户存储器和 10K 寄存器。它为每个系统提供一个 CPU 底板和四个扩展基板。该IC693CPU340的电源需要 +350 VDC 电源提供 5 毫安的负载。它使用处理器80188，处理速度为10兆赫兹。 IC693CPU340的工作温度为 0 至 60 摄氏度（32 至 140 华氏度）环境温度。通常，IC693CPU340的扫描速率为每 0K 逻辑（布尔接触）3.1 毫秒。固件作为最高的用户程序内存给出9.0,240K字节。当前用户程序存储器的确切大小取决于为 %R、%AI 和 %AQ 组成的字存储器类型设计的数字。它还具有 512 的离散输入和离散输出点。CPU 340 具有 1280 位的离散全局内存 -%G

IC693CPU340模拟输入 - %A1 和模拟输出 - %AQ 分别由 128 个字和 64 个字组成。此外，它包括具有16个字的系统寄存器，该字只能用于参考表查看并且不允许在用户逻辑程序中引用。在存在移位寄存器的情况下，模块的时间计数通常为 680。该模块具有内置端口 1（使用 PLC 电源上的连接器）。此端口支持SNP/SNP-X从站协议，这些协议需要CMM模块用于SNP/SNP-X主站。在通信方面，它有一个局域网 - 引导多点。它还为以太网、FIP、Profibus、GBC、GCM 和 GCM+ 选件模块提供帮助。IC693CPU340使用RAM和可选的闪存作为内存存储，以便存储必要的数据。

技术规格

IC693CPU340 单插槽 CPU 340 模块 GE

【英文介绍】

The IC693CPU340 is a single-slot CPU340 module with 32 KB of user memory and 10K registers. It provides one CPU backboard and four expansion baseboards for each system. The IC693CPU340 power supply requires a +350 VDC power supply to provide a 5 mA load. It uses a processor 80188 with a processing speed of 10 megahertz. The IC693CPU340 operates at ambient temperatures of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit). Typically, the IC693CPU340 has a scan rate of 3.1 milliseconds per 0K logic (Boolean contact). The firmware is given as the highest user program memory of 9.0,240K bytes. The exact size of the current user program memory depends on the number designed for the word memory type composed of %R, %AI, and %AQ. It also has 512 discrete input and discrete output points. The CPU 340 has 1280 bits of discrete global memory -%G

The IC693CPU340 analog input - %A1 and analog output - %AQ consist of 128 words and 64 words respectively. In addition, it includes a system register with 16 words, which can only be used for reference table viewing and is not allowed to be referenced in user logic programs. In the presence of a shift register, the module's time count is usually 680. The module has a built-in port 1 (using the connector on the PLC power supply). This port supports SNP/SNP-X slave protocols that require the CMM module for SNP/SNP-X master. In terms of communication, it has a local area network - bootstrap multipoint. It also provides assistance for Ethernet, FIP, Profibus, GBC, GCM, and GCM+ option modules. The IC693CPU340 uses RAM and optional flash memory as memory storage in order to store the necessary data.
