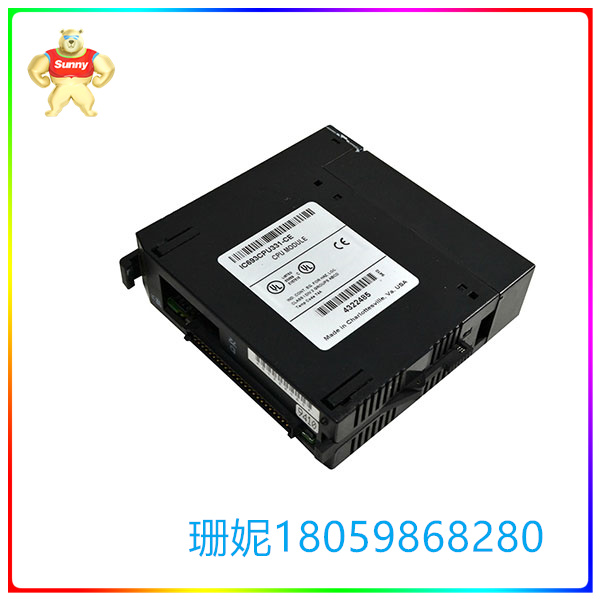

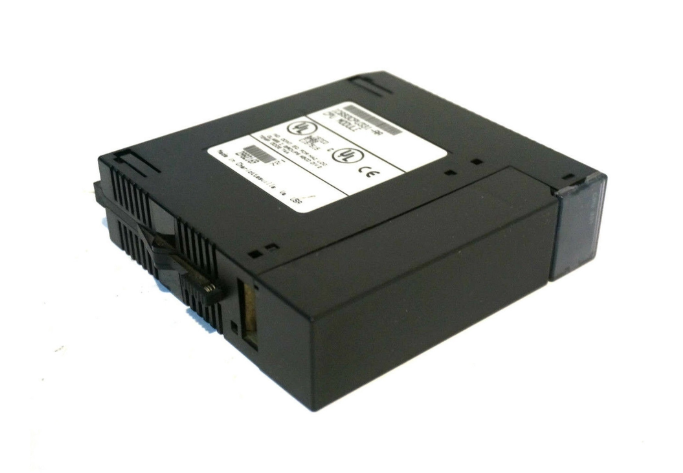

IC693CPU331 GE 模块化CPU配备了80188处理器

【产品详情】

IC693CPU331是一个模块化CPU，是GE Fanuc Automation的90-30系列PLC的一部分。该CPU配备了80188处理器，处理速度为10兆赫兹。它还能够在1.0毫秒内扫描4K的布尔逻辑。

此 CPU 具有 16KB 用户内存，其大小可容纳 512 个离散输入位;512 离散输出位;128字模拟输入和64字模拟输出。此外，该CPU具有由1280位离散全局存储器组成的内部存储器结构;1024位内部线圈;256位临时线圈;128位系统状态参考;2048字的寄存器存储器和16字的系统寄存器。此外，还有 680 个定时器/计数器可供 CPU 使用，并支持移位寄存器指令。

与嵌入式CPU相比，IC693CPU331模块化CPU支持超控功能，并配有电池备份时钟。此 CPU 可用的默认存储器类型是随机存取存储器 （RAM） 类型，也可以与可选的 EPROM 或 EEPROM 一起安装。

IC693CPU331可以安装在任何 CPU 底板上，无论是 5 插槽还是 10 插槽底板。它只能安装到专用 CPU 插槽，即插槽 1。该模块从背板吸收的电流为 350 mA @ 5VDC 总线电压。由于此模块化 CPU 支持更多的 I/O，因此它支持使用最多四 （4） 个远程 I/O 底板的扩展底板进行 I/O 扩展。

GE Fanuc IC693CPU331模块是用于GE系列10-90 PLC系统的30兆赫CPU模块。IC693CPU331模块使用 80188 系列微处理器。该模块的工作温度为32至140摄氏度。IC693CPU331模块在 5 插槽底板上占用单个插槽，在 350 V 直流输入电压下从背板吸收 5 毫安电流。模块的典型扫描速率为每 0K 布尔逻辑 4.1 毫秒。为系统寄存器分配了 16 个单词，这些单词仅用于查看参考表，不能在用户逻辑程序中引用。IC693CPU331模块支持的计时器和计数器总数为 680。模块上提供的用于数据存储的存储器类型是RAM和可选的EPROM或EEPROM。

最大用户程序内存为 16 KB。离散输入点的数量为 512。离散输出点的数量为 512。离散全局内存为 1280 位。分配给模拟输入和模拟输出的存储器分别为 128 个字和 64 个字。IC693CPU331模块上有一个内置串行端口，可通过电源 PLC 连接器访问此端口。串口支持的协议包括SNP从机和SNPX从机协议。SNP 主站支持SNP-X 主站、CCM 和 RTU 从站需要单独的 CMM 模块。RTU 主站支持需要单独的 PCM 模块。AD693CMM301模块为IC2CPU693模块提供 331 个额外的串行端口。SLP（状态逻辑处理器）也与IC693CPU331模块兼容，可用于提供多任务控制。

IC693CPU331 GE 模块化CPU配备了80188处理器

【英文介绍】

The IC693CPU331 is a modular CPU that is part of GE Fanuc Automation's 90-30 series PLC. The CPU is equipped with an 80188 processor with a processing speed of 10 megahertz. It is also capable of scanning 4K Boolean logic in 1.0 milliseconds.

This CPU has 16KB of user memory, which is large enough to hold 512 discrete input bits; 512 discrete output bits; 128 word analog input and 64 word analog output. In addition, the CPU has an internal memory structure composed of 1280-bit discrete global memory; 1024-bit internal coil; 256-bit temporary coil; 128-bit system status reference; 2048 word register memory and 16 word system register. In addition, there are 680 timers/counters available for the CPU and support for shift register instructions.

Compared with the embedded CPU, the IC693CPU331 modular CPU supports the override function and comes with a battery backup clock. The default memory type available for this CPU is the random access memory (RAM) type, which can also be installed with an optional EPROM or EEPROM.

The IC693CPU331 can be installed on any CPU backboard, whether it is a 5-socket or 10-socket backboard. It can only be installed into a dedicated CPU slot, namely slot 1. The current absorbed by the module from the backplane is 350 mA @ 5VDC bus voltage. Since this modular CPU supports more I/O, it supports I/O scaling with an extended backboard of up to four (4) remote I/O backboards.

GE Fanuc IC693CPU331 is a 30 MHZ CPU module for GE series 10-90 PLC systems. The IC693CPU331 module uses the 80188 series microprocessor. The module operates at a temperature of 32 to 140 degrees Celsius. The IC693CPU331 module occupies a single slot in the 5-slot backplane and absorbs 5 mA current from the backplane at a 350 V DC input voltage. The typical scan rate for a module is 4.1 milliseconds per 0K Boolean logic. Sixteen words are assigned to the system register, which are used only to view the reference table and cannot be referenced in the user logic program. The total number of timers and counters supported by the IC693CPU331 module is 680. The types of memory provided on the module for data storage are RAM and optionally EPROM or EEPROM.

The maximum user program memory is 16 KB. The number of discrete input points is 512. The number of discrete output points is 512. The discrete global memory is 1280 bits. The memory allocated to analog input and analog output is 128 words and 64 words respectively. The IC693CPU331 module has a built-in serial port that can be accessed via a power PLC connector. The protocols supported by serial ports include SNP slave and SNPX slave protocols. SNP master Supporting SNP-X master, CCM, and RTU slave requires a separate CMM module. RTU master station support requires a separate PCM module. The AD693CMM301 module provides 331 additional serial ports for the IC2CPU693 module. The SLP (State Logic Processor) is also compatible with the IC693CPU331 module and can be used to provide multi-tasking control.
