IC693CPU313 嵌入式CPU，带有5槽底板

【产品详情】

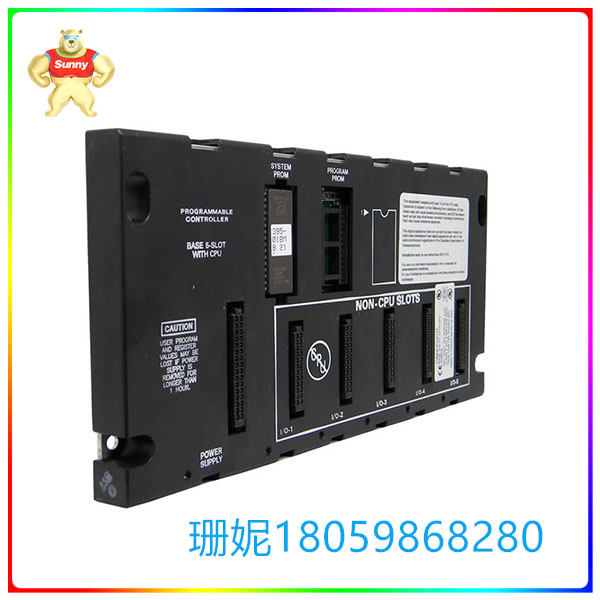

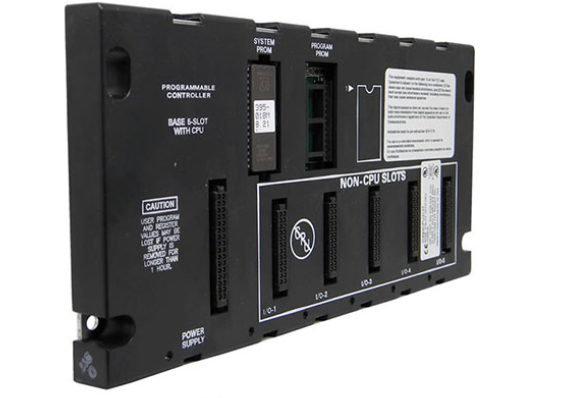

产品描述

GE Fanuc IC693CPU313是一款嵌入式CPU，带有5槽底板，每个系统包含一个基板。该模块使用处理器 10 达到 80188 MHz 的处理速度。执行其功能所需的功率为 5 VDC，该模块消耗的电流为 430 mA。该模块的此操作在 0°C 至 60 °C 的温度范围内进行。

IC693CPU313提供的最大用户存储器为12 KB用于编程，该存储器以各种存储器类型分配。与模拟输入 （%AI） 和模拟输出 （%AO） 关联的用户存储器分别为 64 个字和 32 个字。该模块需要 128 位内存来参考系统状态，其中每个子内存类型需要 32 位。内存还分配给 16 个字的系统寄存器 （%SR）。寄存器存储器还具有最大空间，可存储多达 1024 字的数据。与内部线圈 （%M） 和临时输出线圈 （%T） 相关的存储器分别为 1024 位和 264 位。IC63CPU313中的主存储器是 1280 位的离散全局存储器 （%G）。

与其他模块的通信是通过支持多点的LAN完成的。该IC693CPU313还支持可选模块，如GCM，GCM+，以太网，Profibus，FIP，GBC等，该模块中使用的内存存储是RAM或EPROM。 该模块可实现0.6毫秒/1K的扫描速率，并配有单个内置端口，支持SNP从机和SNP-X从机等协议。

技术规格

处理器速度 ： 10兆赫

I/O 点 ： 160

寄存器存储器 ： 2千字节

浮点数学： 不

16 位系统 是的

处理器： 80188

IC693CPU313 CPU是90-30系列的GE Fanuc嵌入式CPU。它是一个CPU背板，直接嵌入了CPU模块。IC693CPU313嵌入式CPU以10兆赫兹的处理器速度运行，其处理器为80188处理器。它是一个涡轮增压CPU。IC693CPU313嵌入式 CPU 的底板只有 5 个模块插槽（加上最左侧的 1 个插槽，仅用于托管电源）。但是，它可以连接到其他类型的底板，例如 90-30 系列可编程逻辑控制器或 PLC 中的远程底板和扩展基板，这些基板将为模块提供额外的插槽。IC693CPU313嵌入式CPU无法连接到PCM和CCM设备，但它可以容纳大多数选件模块和I / O模块。

GE Fanuc 系列 90-30 IC693CPU313嵌入式 CPU 只有 1 个通信端口。该通信端口允许嵌入式CPU通过SNP从协议和SNP-X从协议与其他设备通信。IC693CPU313嵌入式CPU可以支持的存储器类型包括RAM和用于特殊应用的EPROM或EEPROM。此嵌入式 CPU 背板的环境工作温度范围为 0 至 60 摄氏度或 32 至 140 华氏度。此 CPU 不支持浮点数学。90-30 系列IC693CPU313嵌入式 CPU 在 430 伏直流背板电压下消耗 5 毫安电流。它可以通过支持多点设置的 LAN 与其他模块通信。

IC693CPU313 嵌入式CPU，带有5槽底板

【英文介绍】

Product description

The GE Fanuc IC693CPU313 is an embedded CPU with a 5-slot backboard, one substrate per system. The module uses processor 10 to achieve a processing speed of 80188 MHz. The power required to perform its functions is 5 VDC and the current consumed by the module is 430 mA. This operation of the module is carried out in the temperature range of 0°C to 60 °C.

The IC693CPU313 provides a maximum user memory of 12 KB for programming, which is allocated in various memory types. The user memory associated with analog input (%AI) and analog output (%AO) is 64 words and 32 words, respectively. The module requires 128 bits of memory to reference the system state, of which 32 bits are required for each submemory type. Memory is also allocated to a 16-word system register (%SR). The register memory also has a maximum space and can store up to 1024 words of data. The memory associated with the internal coil (%M) and the temporary output coil (%T) is 1024 bits and 264 bits, respectively. The main memory in IC63CPU313 is a 1280-bit discrete global memory (%G).

Communication with other modules is done via a LAN that supports multiple points. The IC693CPU313 also supports optional modules such as GCM, GCM+, Ethernet, Profibus, FIP, GBC, etc. The memory storage used in the module is RAM or EPROM. The module can achieve a scan rate of 0.6 ms /1K and has a single built-in port to support protocols such as SNP slave and SNP-X slave.

Technical specification

Processor speed: 10 MHZ

I/O point: 160

Register memory: 2 kilobytes

Floating point math: No

16-bit system Yes

Processor: 80188

The IC693CPU313 CPU is a 90-30 series GE Fanuc embedded CPU. It is a CPU backplane that is directly embedded into the CPU module. The IC693CPU313 embedded CPU runs at a 10 MHZ processor speed and its processor is an 80188 processor. It's a turbocharged CPU. The backboard of the IC693CPU313 embedded CPU has only five module slots (plus the leftmost slot for hosting power only). However, it can be connected to other types of baseboards, such as remote baseboards and expansion baseboards in series 90-30 programmable logic controllers or PLCS, which will provide additional slots for the module. The IC693CPU313 embedded CPU cannot connect to PCM and CCM devices, but it can accommodate most option modules and I/O modules.

GE Fanuc Series 90-30 IC693CPU313 Embedded CPU has only one communication port. This communication port allows the embedded CPU to communicate with other devices via the SNP slave protocol and SNP-X slave protocol. The types of memory that the IC693CPU313 embedded CPU can support include RAM and EPROM or EEPROM for special applications. The ambient operating temperature range for this embedded CPU backplane is 0 to 60 degrees Celsius or 32 to 140 degrees Fahrenheit. This CPU does not support floating point math. The 90-30 Series IC693CPU313 embedded CPU consumes 5 mA at 430 VDC backplane voltage. It can communicate with other modules through a LAN that supports multipoint Settings.
