IC693CPU311 GE 可编程逻辑控制器 平台的嵌入式

【产品详情】

嵌入式处理器可用的嵌入式定时器和计数器指令多达 170 条，并且还支持移位寄存器指令。该基板还配有一个非易失性EPROM或EEPROM插槽，用于存储器扩展。嵌入式CPU不附带集成端口，而是通信接口由电源模块托管，该模块是单个SNP从机和SNP-X从机协议兼容的端口。此模块支持的可选通信协议包括以太网、FIP、Profibus、GBC、GCM、GCM+ 选项模块。

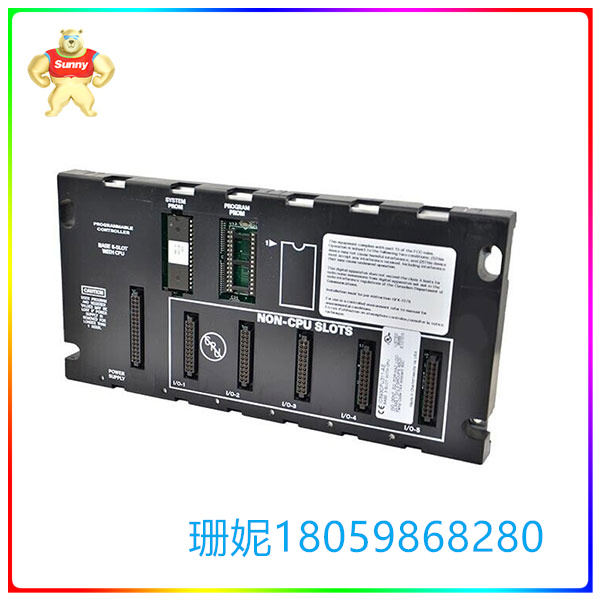

GE Fanuc 系列 90-30 IC693CPU311底板是一种特殊的底板，具有 5 个内置 CPU 的插槽。内置 CPU 的 IC693CPU311 5 插槽底板具有 6 KB 的用户程序内存。这种特殊的底板是许多90-30系列PLC的有用部件，但它与GE 90-30系列产品线的每个PLC组件都不兼容。例如，IC693CPU311底板无法容纳 90-30 系列 PCM 和 CCM 器件。该底板也没有电池备份时钟、中断或超控功能。但是，带有内置CPU的IC693CPU311 5插槽底板的某些功能具有移位寄存器，170个定时器或计数器以及1个内置串行端口等功能。

GE Fanuc 系列 90-30 IC693CPU311 5 插槽底板可支持 RAM 和可选的 EPROM 和 EEPROM 作为其内存选项。该基板及其 CPU 可以通过多点 LAN、Profibus、FIP、以太网、GBC、GCM 和 GCM+ 可选通信模块进行通信。其典型扫描速率为布尔触点每 18K 逻辑扫描 1 毫秒，其 CPU 处理器速度为 10 兆赫兹。IC693CPU311 5 插槽底板需要 410 毫安的电流负载，来自 5 V 直流额定电源才能运行。它可以在 32 至 140 华氏度或 0 至 60 摄氏度的温度范围内运行。此基板上的内置串行端口可以同时支持SNP从机协议和SNP-X从机协议。此端口使用 PLC 电源模块上的连接器。

IC693CPU311 GE 可编程逻辑控制器 平台的嵌入式

【英文介绍】

The embedded processor has up to 170 embedded timer and counter instructions available, and also supports shift register instructions. The substrate is also equipped with a non-volatile EPROM or EEPROM slot for memory expansion. The embedded CPU does not come with an integrated port, but the communication interface is hosted by a power module that is a single SNP slave and SNP-X slave protocol-compatible port. Optional communication protocols supported by this module include Ethernet, FIP, Profibus, GBC, GCM, and GCM+ option modules.

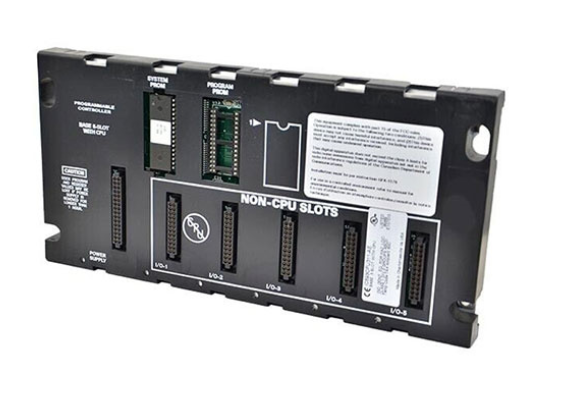

GE Fanuc Series 90-30 IC693CPU311 baseboard is a special baseboard with five slots for a built-in CPU. The IC693CPU311 5-slot baseboard with the built-in CPU has 6 KB of user program memory. This particular backboard is a useful part of many 90-30 series PLCS, but it is not compatible with every PLC component in GE's 90-30 series product line. For example, the IC693CPU311 baseboard cannot accommodate the 90-30 series PCM and CCM devices. There is also no battery backup clock, interrupt, or override function. However, some features of the IC693CPU311 5-slot baseboard with a built-in CPU have features such as shift registers, 170 timers or counters, and 1 built-in serial port.

The GE Fanuc Series 90-30 IC693CPU311 5-slot baseboard supports RAM and optional EPROM and EEPROM as its memory options. The substrate and its CPU can communicate via multipoint LAN, Profibus, FIP, Ethernet, GBC, GCM, and GCM+ optional communication modules. Its typical scan rate is 1 millisecond per 18K logic scan of Boolean contacts, and its CPU processor speed is 10 MHZ. The IC693CPU311 5-slot baseboard requires a 410 mah current load from a 5 V DC rated supply to operate. It can operate in a temperature range of 32 to 140 degrees Fahrenheit or 0 to 60 degrees Celsius. The built-in serial port on this substrate can support both the SNP slave protocol and the SNP-X slave protocol. This port uses the connector on the PLC power module.

IC693CPU311 GE 可编程逻辑控制器 平台的嵌入式
