DS3820PSCB MKIV管理蒸汽和燃气轮机 GE
【产品详情】

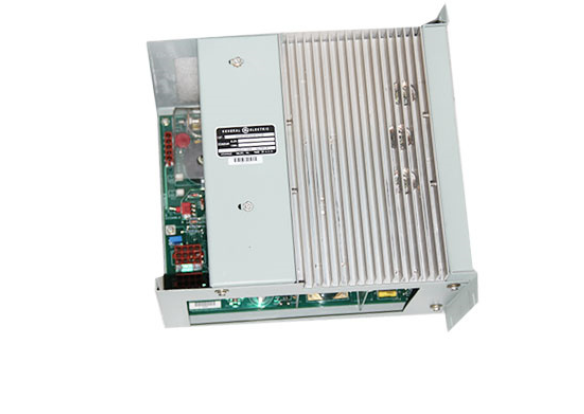

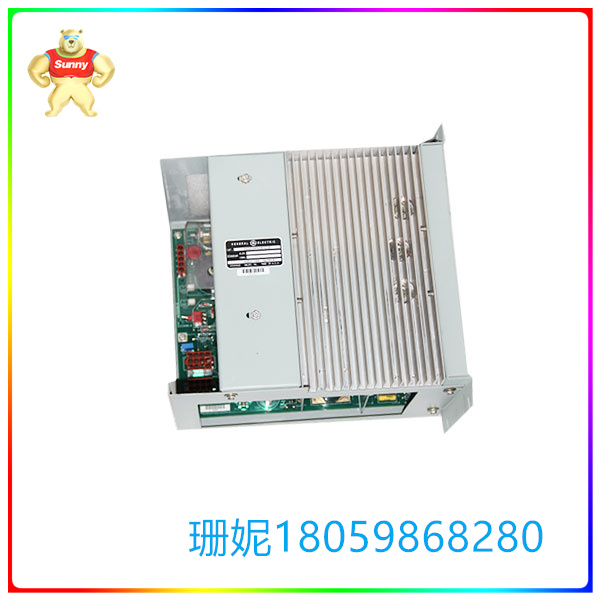

DS3820PSCB是GE为其Speedtronic Mark IV系列提供的电源单元。MKIV管理蒸汽和燃气轮机，并建立在集成微处理器上，使用分布式控制功能来保护涡轮机免受高压，振动，火灾和火焰损失等因素的影响。它还可以自动执行启动和关闭等标准程序。
该DS3820PSCB在矩形金属外壳中使用多个DS3800系列板，该外壳具有多个切口。 这些切口旨在允许技术人员接触内部的电路板，但也允许空气流通和散热。框架已在多个点钻孔，以允许安装 PCB 或其他组件.插槽、孔和螺钉安装座已切成多个法兰，以便将模块安装到其他模块上。框架顶部包括一个四针母连接器、一个断路器和一个保险丝。框架的边缘标记为“启用/禁用”。该标记对应于安装在内部PCB上的拨动开关。
DS3820PSCB的内部板有许多组件。这包括许多公母针座和PCB配套连接器、拨动开关、发光二极管、电位计、跳线开关、变压器、放大器、几个较大的电容器、电感器和快速连接螺钉安装。值得注意的是，底部水平板安装时所有组件都朝下。
一块板安装在外壳的外部。 该板 （DS3800XTFP） 有一个 6 针公头接头和八个 12 针母连接器。它通过通过工厂钻孔安装的金属螺钉连接到外壳。
DS3820PSCB中的大多数电线都是用电缆扎带收集并夹在一起的。许多已经在它们连接的组件或板上进行了标记和标记。
DS3820PSCB MKIV管理蒸汽和燃气轮机 GE
【英文介绍】
The DS3820PSCB is GE's power supply unit for its Speedtronic Mark IV series. The MKIV manages steam and gas turbines and is built on an integrated microprocessor that uses distributed control functions to protect the turbine from factors such as high pressure, vibration, fire and flame loss. It can also automatically perform standard procedures such as startup and shutdown.
The DS3820PSCB uses multiple DS3800 series boards in a rectangular metal housing with multiple cuts. These cuts are designed to allow technicians access to the board inside, but also allow air circulation and heat dissipation. The frame has been drilled at multiple points to allow the installation of PCBS or other components. Slots, holes, and screw mounts have been cut into multiple flanges for mounting modules onto other modules. The top of the frame includes a four-pin female connector, a circuit breaker, and a fuse. The edges of the frame are marked "Enable/Disable". The mark corresponds to a toggle switch mounted on the internal PCB.
The internal board of the DS3820PSCB has a number of components. This includes many male and female pin mounts and PCB companion connectors, toggle switches, leds, potentiometers, jumper switches, transformers, amplifiers, several larger capacitors, inductors, and quick-connect screw mounts. It is worth noting that the bottom horizontal plate is installed with all components facing down.
A plate is mounted on the outside of the housing. The board (DS3800XTFP) has one 6-pin male connector and eight 12-pin female connectors. It is attached to the housing by metal screws installed through factory holes.
Most of the wires in the DS3820PSCB are collected and clamped together with cable ties. Many have been marked and labeled on the components or boards they are connected to.
