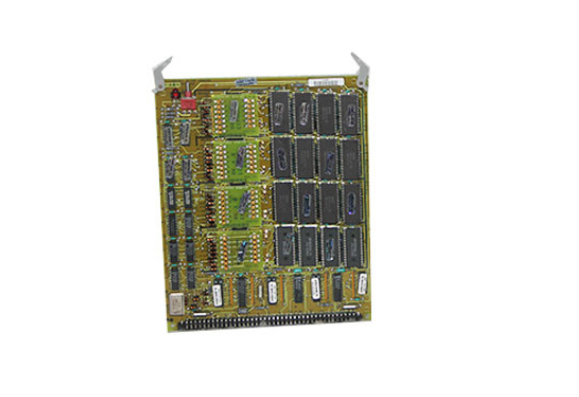

DS3810MM GE  GE燃气轮机

【产品详情】

数字端口 DI5;设置急停功能。

DS3810MM GE燃气轮机夹具

● 运行时，DI5 必须设置为“1”。如果设置为“0”，将出现报警信号A102。驱动器将根据参数 917 中设置的功能做出反应（根据斜坡。扭矩/电流限制器、调节器锁定和

在免费停车模式下关闭。斜坡功能完成后（响应低于nmin），通过控制主环路接触器复位输出。之后，加扰输入应重置为“1”，报警信息ON/OFF输入也设置为.0。然后可以重新启动传输。

DS3810MM

● 数字端口DI7;设置启动 1 停止 （ON0OFF） 功能。

DS3810MM GE燃气轮机夹具

DI7必须设置为逻辑“1”才能将驱动器连接到输入电路。如果没有故障，则用于控制电枢。接触器闭合环路和磁场环路的数字输出被激活。如果DI7设置为“0”，则内部控制器停止工作，并通过延迟数字输出复位。参数 915 设置的功能仅在根据接线图 2 设置连接时才有效。（输入 DI7 和 DI8 用于分断接触器）_

DS3810MM GE  GE燃气轮机

【英文介绍】

Digital port DI5; Set the emergency stop function.

DS3810MM GE gas turbine fixture

● When running, DI5 must be set to "1". If set to "0", the alarm signal A102 will appear. The drive will react according to the function set in parameter 917 (according to ramp. Torque/current limiter, regulator locking and

Closed in free parking mode. After the ramp function is complete (response below nmin), reset the output by controlling the main loop contactor. After that, the scrambling input should be reset to "1" and the alarm information ON/OFF input should also be set to.0. The transfer can then be restarted.

DS3810MM

● Digital port DI7; Set the ON0OFF function.

DS3810MM GE gas turbine fixture

DI7 must be set to logical "1" to connect the driver to the input circuit. If there is no fault, it is used to control the armature. The contactor closed loop and the digital output of the magnetic field loop are activated. If DI7 is set to "0", the internal controller stops working and is reset by delaying the digital output. The function set by parameter 915 is only effective if the connection is set according to the wiring diagram 2. (Input DI7 and DI8 for breaking contactor) _

DS3810MM GE  GE燃气轮机
