850-EP5NNG5HNNAANGAPBBSENNBN 馈线保护系统
【产品详情】
850-EP5NNG5HNNAANGAPBBSENNBN 技术规格
制造者 | 通用电气Multilin(GE) |
制造地点 | 加拿大安大略省万锦市 |
型号 | 850-EP5NNG5HNNAANGAPBBSENNBN |
RTD 保护元件 | 跳闸和报警 |
柔性元件数量 | 8 |
跳闸总线输入 | 16 |
跳闸电路涓流电流 | 1 至 2.5 mA |
故障定位器方法 | 单端 |
# 数据记录通道数 | 16 |
事件记录仪容量 | 1024 |
瓦时精度 | ±读数的 2.0% |
产品描述
850-EP5NNG5HNNAANGAPBBSENNBN是通用电气Multilin的GE Multilin 850馈线保护系统。850 馈线系统包括两个 CPU:一个 32 位微处理器,用于测量数字输入和模拟信号以及控制设备的输出继电器,另一个相同尺寸的微处理器用于控制设备的以太网通信协议。本机具有可拆卸电源。
Multilin的850-EP5NNG5HNNAANGAPBBSENNBN装置以英语编程。它具有 5 安培 3 相电流输入和一组三个无相电流输入。该装置具有 5 安培接地输入和 110-250 VDC/110 至 230 VAC 电源。面板内有一个彩色图形显示屏。
850-EP5NNG5HNNAANGAPBBSENNBN 提供高级电流保护配置以及高级电压计量和保护。该装置设计有基本的控制和监控配置,不包括光纤连接器或无线通信。
本机的后部连接包括交流模拟输入、基本通信端口、LV I/O 和高级 COM 端口。请查看制造商说明,了解如何正确连接到这些端子。850-EP5NNG5HNNAANGAPBBSENNBN 设计为使用位于机箱上的八个螺钉连接进行面板安装,或使用位于外壳侧面的 V 形卡舌进行卡舌安装。

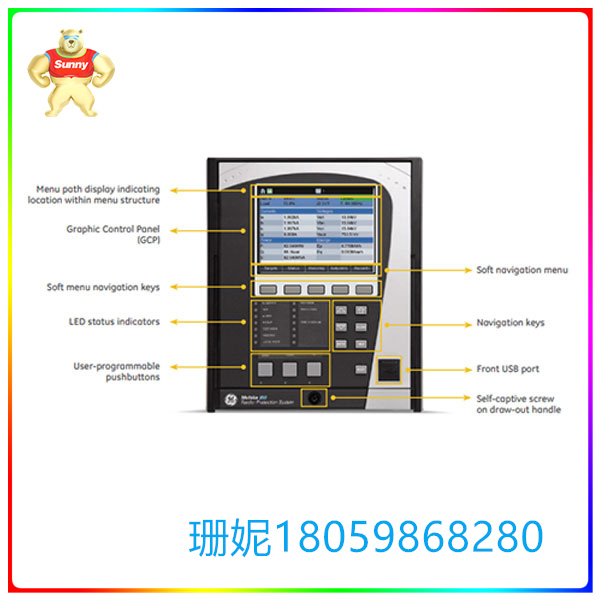

850-EP5NNG5HNNAANGAPBBSENNBN 的前控制面板包括显示屏、导航按钮、用于屏幕导航、复位、输入、帮助和返回按钮的菜单选项卡以及上下切换按钮。 它还包括多个 LED 指示灯和一个 USB 端口。GE手册或用户指南将为您提供有关此设备的更多详细信息。
有关 850-EP5NNG5HNNAANGAPBBSENNBN 的常见问题
什么是 850-EP5NNG5HNNAANGAPBBSENNBN?
作为 850 系列的一部分,通用电气 Multilin的 850-EP5NNG5HNNAANGAPBBSENNBN 是一种馈线保护系统,用于控制、保护和监控馈线保护系统。它提供两个微处理器和各种通信端口。
为什么订单代码这么长?这些字母表示什么?
Multilin的850系列提供广泛的可选功能,例如高级自动重合闸、扩展通信、无线通信和扩展的网络安全。对于此特定部分,“P5”表示继电器包含 5A 3 相电流输入,而“G5”表示继电器包含 5A 接地输入。有关每个字母的更多信息,请参阅Multilin的用户手册。
850-EP5NNG5HNNAANGAPBBSENNBN 馈线保护系统
【英文介绍】
Product description
850-EP5NNG5HNNaangapBBSENNBN is the GE Multilin 850 feeder protection system from GE Multilin. The 850 feeder system consists of two cpus: a 32-bit microprocessor for measuring digital input and analog signals and the output relay for controlling the device, and a second microprocessor of the same size for controlling the device's Ethernet communication protocol. This unit has a detachable power supply.
Multilin's 850-EP5NNG5HNNAANGAPBBSENNBN device is programmed in English. It has a 5 amp 3 phase current input and a set of three non-phase current inputs. The unit has a 5 amp grounding input and a 110-250 VDC/110 to 230 VAC power supply. Inside the panel is a color graphic display.
The 850-EP5NNG5HNNAANGAPBBSENNBN offers advanced current protection configurations and advanced voltage metering and protection. The device is designed with basic control and monitoring configurations and does not include fiber optic connectors or wireless communications.
The rear connections of the unit include AC analog inputs, basic communication ports, LV I/O, and advanced COM ports. Check the manufacturer's instructions on how to properly connect these terminals. The 850-EP5NNG5HNNAANGAPBBSENNBN is designed for panel mounting using eight screw connections located on the chassis or a V-shaped latch located on the side of the housing.

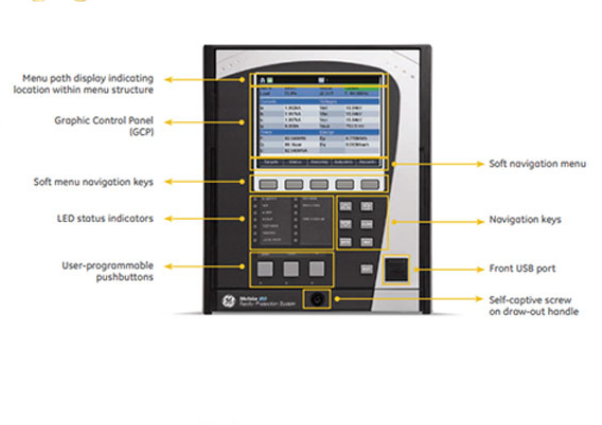

The 850-EP5NNG5HNNAANGAPBBSENNBN's front control panel includes the display, navigation buttons, menu tabs for on-screen navigation, reset, input, Help, and back buttons, and buttons for switching up and down. It also includes multiple LED indicators and a USB port. The GE manual or user guide will provide you with more detailed information about this device.
Frequently Asked Questions about 850-EP5NNG5HNNAANGAPBBSENNBN
What is 850-EP5NNG5HNNAANGAPBBSENNBN?
Part of the 850 series, GE Multilin's 850-EP5NNG5hnNaangapBBSENNBN is a feeder protection system designed to control, protect and monitor feeder protection systems. It offers two microprocessors and various communication ports.
Why is the order code so long? What do these letters stand for?
Multilin's 850 series offers a wide range of optional features such as advanced auto reclosing, extended communications, wireless communications, and extended network security. For this particular part, "P5" indicates that the relay contains a 5A 3-phase current input, while "G5" indicates that the relay contains a 5A ground input. For more information on each letter, see Multilin's user manual.
