469-P5-HI-A20-E 电机管理继电器 具有精心设计的前面板

【产品详情】

SR469-P5-HI-A20-E 技术规格

SR469-P5-HI-A20-E来自GE Multilin，是SR 469电机管理继电器系列的一部分。该装置设计有 5 安培相位 CT 次级。SR 469 继电器设计用于中压电机，提供集成管理和保护。AX Control 保持着多种不同 Multilin SR 469 继电器的现有库存。

SR469-P5-HI-A20-E 提供 70-265 VAC、90-300 VDC 控制电源。本机具有增强的前面板。但是，如果您需要可以在恶劣环境中使用的装置，请参阅我们的 SR469-P5-HI-A20-E-H 列表，除了额外的恶劣环境敷形涂层外，它在各个方面都与该装置相似。

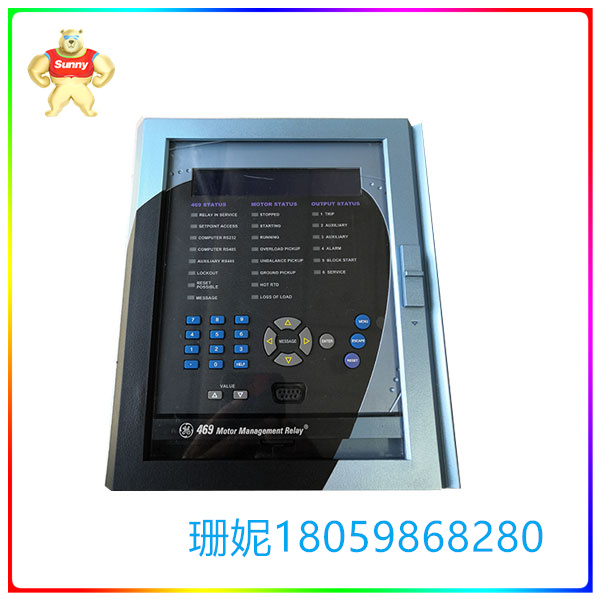

SR469-P5-HI-A20-E 具有精心设计的前面板，易于使用。该面板包括一个 RS-232 程序端口接口，波特率为 9600 波特率，可编程高达 19,200 波特。该面板有一个可以密封的抽屉手柄，以防止任何形式的未经授权的拆卸。前面板有一个大型 LCD 显示屏，具有 <> 个字符的功能。用户可以通过此显示屏在本地查看跳闸或警报等诊断消息。此外，该面板还具有电机和输出状态指示器、单元指示器、数字键盘、控制和编程键（包括复位、转义和菜单按钮）以及允许用户更改设定值的值键。

GE Multilin手册和用户指南将提供有关该装置的更多详细信息，包括有关安装，处理，安全和维护的信息。AX Control 可以帮助您更换手册，如果您不再拥有原件。

469-P5-HI-A20-E 电机管理继电器 具有精心设计的前面板

【英文介绍】

The SR469-P5-HI-A20-E is from GE Multilin and is part of the SR469 motor management relay family. The device is designed with a 5 amp phase CT secondary. The SR 469 relay is designed for use in medium voltage motors and provides integrated management and protection. AX Control maintains an existing inventory of several different Multilin SR 469 relays.

The SR469-P5-HI-A20-E offers 70-265 VAC, 90-300 VDC control power. This unit has an enhanced front panel. However, if you need a unit that can be used in harsh environments, see our SR469-P5-HI-A20-E-H list, which is similar to the unit in every way except for the additional harsh environment coating.

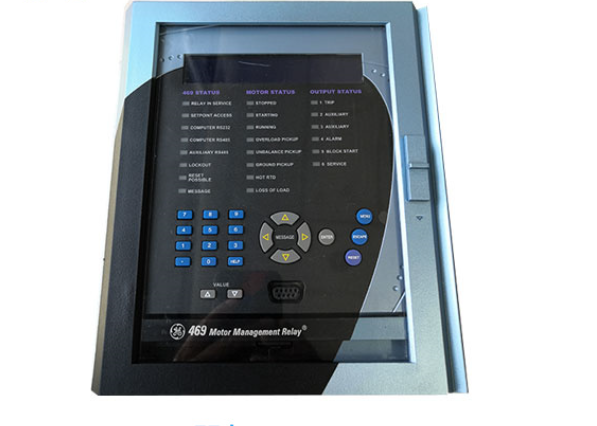

The SR469-P5-HI-A20-E features a well-designed front panel for ease of use. The panel includes an RS-232 program port interface with a baud rate of 9600 baud and programmable up to 19,200 baud. The panel has a drawer handle that can be sealed to prevent any form of unauthorized removal. The front panel has a large LCD display with <> character function. The display allows users to view diagnostic messages such as trips or alerts locally. In addition, the panel has motor and output status indicators, unit indicators, numeric keypads, control and programming keys (including reset, escape, and menu buttons), and value keys that allow users to change Settings.

The GE Multilin manual and user guide will provide more detailed information about the unit, including information about installation, handling, safety and maintenance. AX Control can help you replace the manual if you no longer have the original.

469-P5-HI-A20-E 电机管理继电器 具有精心设计的前面板
