531X207LCSAEH1 局域网电流源板 提供电压限制的0.3A电流源
【产品详情】

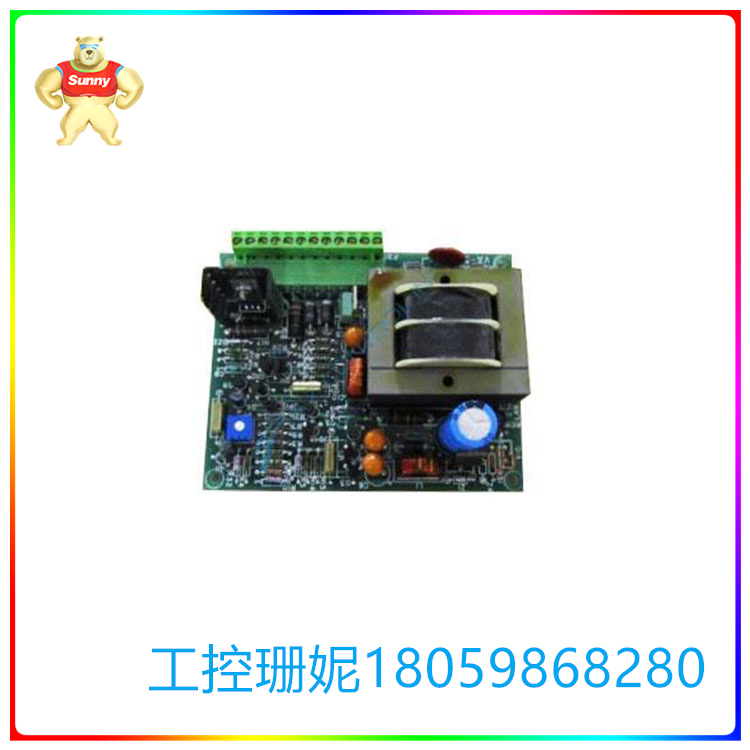

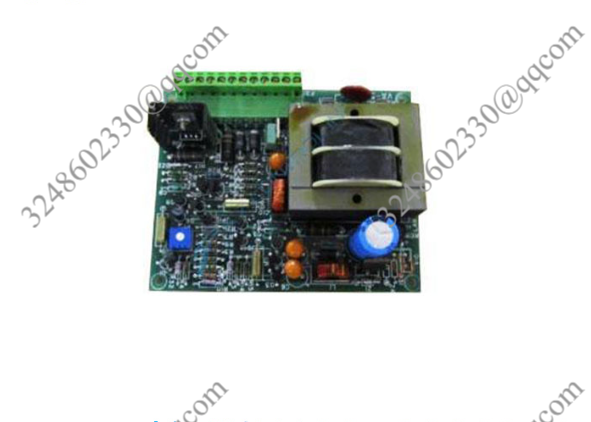

通用电气为531X系列替换板开发了207X1LCSAEH531 LAN（局域网）电流源板。一系列GE驱动器和励磁器能够接受和使用此卡。驱动器中的 LAN 系统从该主板接收额定电压为 5 VDC 或 15 VDC 的电源。该卡还提供电压限制的0.3A电流源。电路板的所有电源均采用 115 VDC 保险丝保护输入源。
板载可配置选项为用户提供了安装此卡的灵活性。由于该板能够产生两种电源，因此用户可以选择所需的电源。集成跳线提供位置 1.2 以选择 5 VDC，而 2.3 允许选择 15 VDC。电路板输出的电压也可以调整以适应所选电源。板载电位计用于选择所需的适当输出电压。通过卡的所有输入和输出信号都由卡上的 12 点端子板接收和发送。
应遵循制造商生产的有关LAN电流源板的所有安装参数。 满足这些要求将保护531X207LCSAEH1及其驱动器免受意外事故或损坏。不要让任何未经培训的人员处理或安装此板。所有接线和安装说明均可在设备手册和数据表中找到。 通用电气最初为整个 531X 系列（包括该板）提供技术支持。
531X207LCSAEH1 局域网电流源板 提供电压限制的0.3A电流源
【英文介绍】
Ge has developed a 207X1LCSAEH531 LAN (local Area Network) current source board for the 531X Series replacement board. A range of GE drives and exciters can accept and use the card. The LAN system in the drive receives power from this motherboard with a voltage rating of 5 VDC or 15 VDC. The card also offers a voltage limited 0.3A current source. All power supplies on the board are protected from input sources by 115 VDC fuses.
The onboard configurable option gives users the flexibility to install this card. Since the board is capable of generating two power supplies, the user can choose the power supply required. The integrated jumper provides position 1.2 to select 5 VDC, while 2.3 allows 15 VDC to be selected. The voltage output from the board can also be adjusted to suit the selected power supply. An onboard potentiometer is used to select the appropriate output voltage required. All input and output signals through the card are received and sent by the 12-point terminal board on the card.
All installation parameters for LAN current source boards produced by the manufacturer should be followed. Meeting these requirements will protect the 531X207LCSAEH1 and its drives from accidents or damage. Do not allow any untrained personnel to handle or install this board. All wiring and installation instructions can be found in the equipment manual and data sheet. Ge initially provided technical support for the entire 531X series, including the board.
