531X199SPTADG1 通信脉冲变压器板  DC-300 驱动器

【产品详情】

531X199SPTADG1--通信脉冲变压器板

531X199SPTADG1 是通用电气制造的电路板组件，适用于其通用驱动系统，如 DC-300 驱动器。

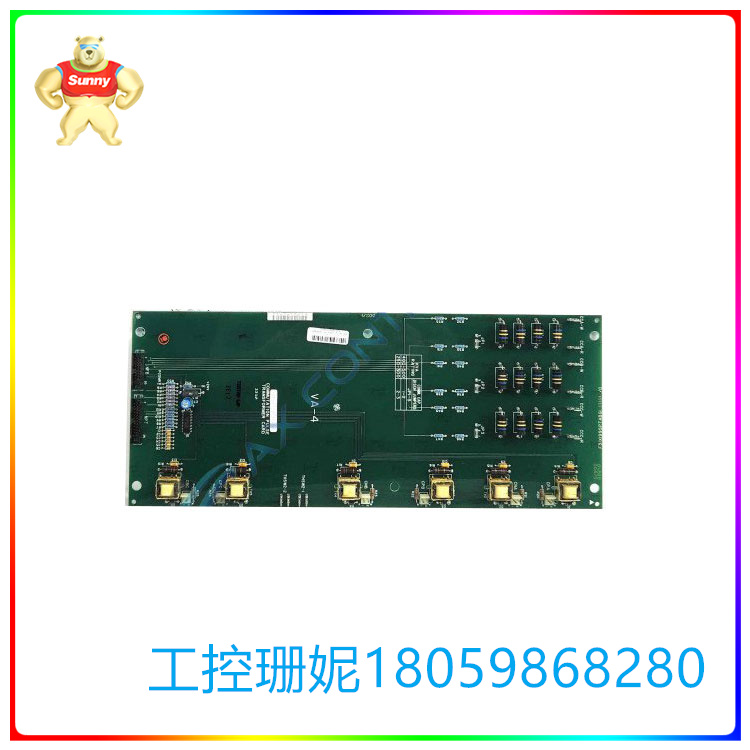

531X199SPTADG1是一款通信脉冲变压器板。它是一块长矩形板，表面只有几个组件。它在每个角落钻孔以进行安装，并有几个其他钻孔。它标有 002/1、FR01/0、0390、VA-4 等代码，其备用板号 F31x199SPTABG1。板的中心包括与板跳线相关的图表。该板有三个跳线。

531X199SPTADG1 将六个变压器沿电路板顶部边缘放置在一条线上。它们作为三个/一个/两个变压器放置在板上。每个变压器都有一个两针接头连接器、一个陶瓷电容器和三个与之相关的电阻器（两个金属膜和一个 CCR）。在单个变压器和一组两个变压器之间有四个卡入式连接器。

531X199SPTADG1 上的其他组件包括六个额外的插接式连接器，这些连接器位于左边缘，紧挨着碳复合电阻器区域。该领域有十二个 CCR。还有一个由十二个金属膜电阻器组成的领域。这两个字段由前面提到的三个跳线分隔。电路板右边缘有两个公垂直引脚电缆连接器，以及更多的金属膜电阻器、陶瓷电容器、单个集成电路、一个标有+24V的端子引脚和一个高压电容器。有关该板的更多信息可通过数据表、手册或用户指南访问。

531X199SPTADG1 通信脉冲变压器板  DC-300 驱动器

【英文介绍】

531X199SPTADG1- Communication pulse transformer board

The 531X199SPTADG1 is a circuit board component manufactured by General Electric for use in its general-purpose drive systems, such as DC-300 drivers.

531X199SPTADG1 is a communication pulse transformer board. It is a long rectangular plate with only a few components on its surface. It drilled holes at each corner for installation and had several other holes. It is marked with codes such as 002/1, FR01/0, 0390, VA-4, and its spare board number F31x199SPTABG1. The center of the board contains the chart associated with the board jumper. The board has three jumpers.

531X199SPTADG1 places six transformers in a line along the top edge of the board. They are placed on the board as three/one/two transformers. Each transformer has a two-pin connector, a ceramic capacitor, and three resistors associated with it (two metal films and a CCR). There are four snap-in connectors between a single transformer and a set of two transformers.

Other components on the 531X199SPTADG1 include six additional plug-in connectors located on the left edge next to the carbon composite resistor area. There are twelve CCRS in this area. There is also a field consisting of twelve metal film resistors. The two fields are separated by the three jumpers mentioned earlier. On the right edge of the board are two male vertical pin cable connectors, as well as more metal film resistors, ceramic capacitors, a single integrated circuit, a terminal pin labeled +24V, and a high voltage capacitor. More information about the board can be accessed through data sheets, manuals, or user guides.

531X199SPTADG1 通信脉冲变压器板  DC-300 驱动器
