531X199SPTACG1 换向脉冲变压器卡 GE

【产品详情】

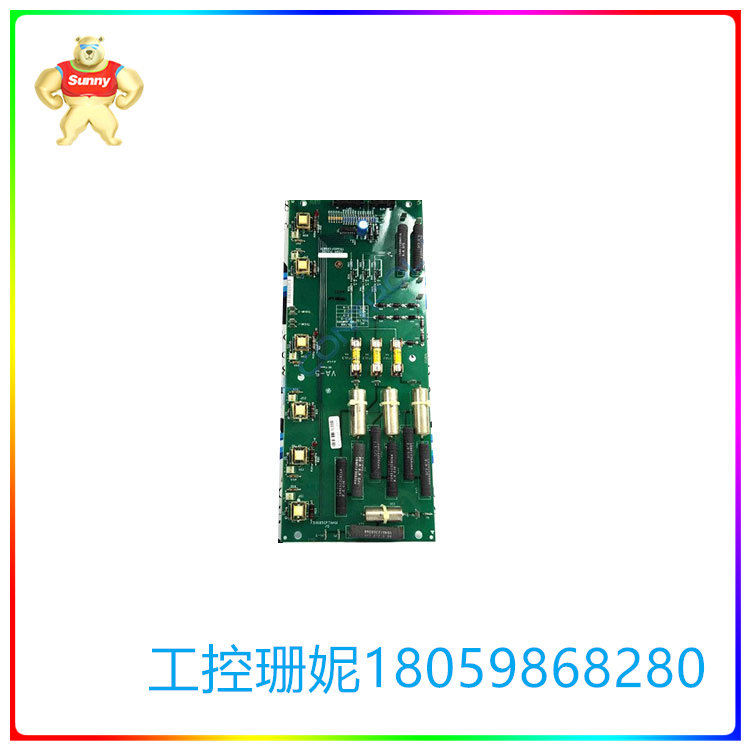

 531X199SPTACG1由通用电气制造，作为换向脉冲变压器卡。531X199SPTACG1 是一张长卡，其中零件朝向末端和边缘放置，中间大部分是空的。531X199SPTACG1 的左侧有 531 个大型深色电阻器。电路板周围还有其他电阻器.电阻用于耗散电路板不再需要的能量.199X1SPTACG531具有多个电容，在美国的使用说明书中也称为电容器。冷凝器能够在能量流过时产生电场。当能量通过它时，冷凝器会吸收一些能量并将其存储在电场中。199X1SPTACG531 有六个变压器。这些变压器在多个电路之间传输电能。199X1SPTACG531有一个小的微芯片。该微芯片保存 199X1SPTACG531 运行的信息。199X1SPTACG531 有六个小型白色公头连接器和两个大型黑色公头连接器。这些连接器用于连接和连接其他电路板.199X1SPTACG531在变压器附近有两个金属扣。199X1SPTACG531 有四个连接点，可连接到系统的其余部分。199X1SPTACG531在电路板中央有一个小图表和标签。199X1SPTACG<>现在被认为是过时的电路板，不再生产。有关更多信息，通用电气发布了多个数据表和说明手册。

531X199SPTACG1 换向脉冲变压器卡 GE

【英文介绍】

 The 531X199SPTACG1 was manufactured by General Electric as a commutator pulse transformer card. The 531X199SPTACG1 is a long card in which the parts are placed toward the ends and edges, and the middle is mostly empty. The 531X199SPTACG1 has 531 large, dark resistors on its left side. There are other resistors around the board. Resistors are used to dissipate energy that is no longer needed by the board. The 199X1SPTACG531 has multiple capacitors, also known as capacitors in the instructions for use in the United States. A condenser can generate an electric field as energy flows through it. As energy passes through it, the condenser absorbs some of it and stores it in an electric field. The 199X1SPTACG531 has six transformers. These transformers transmit electrical energy between multiple circuits. The 199X1SPTACG531 has a small microchip. The microchip holds information about the 199X1SPTACG531 operation. The 199X1SPTACG531 has six small white male connectors and two large black male connectors. These connectors are used to connect and connect other circuit boards. The 199X1SPTACG531 has two metal buckles near the transformer. The 199X1SPTACG531 has four connection points that connect to the rest of the system. The 199X1SPTACG531 has a small chart and label in the center of the board. 199X1SPTACG<> is now considered an obsolete circuit board and is no longer produced. For more information, GE has published multiple data sheets and instruction manuals.
