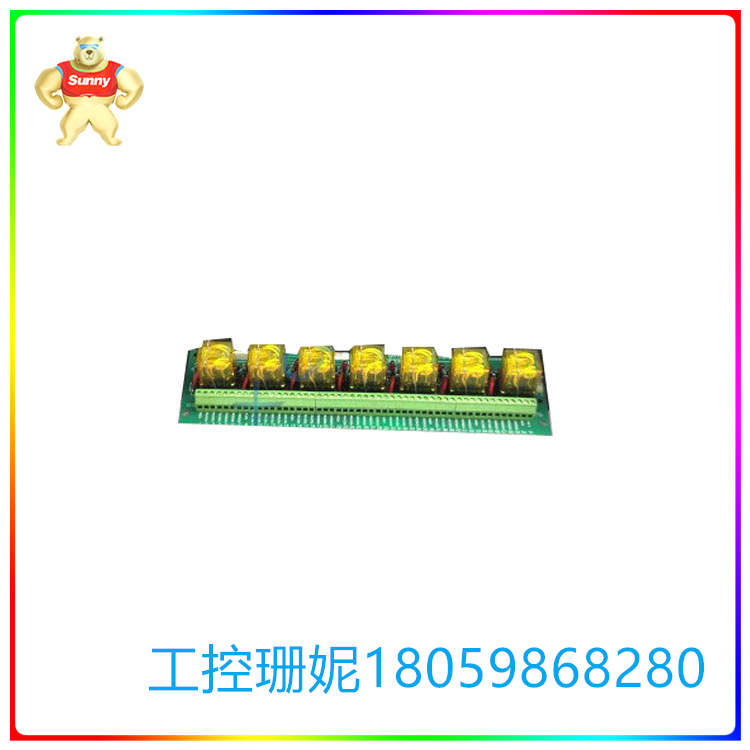

531X191RTBALG4 中继终端板 提供两个功能

【产品详情】

通用电气开发了他们的531X191RTBALG4卡作为中继终端板。具体来说，该设备被放置在 531X 替换驱动板系列中。安装此卡可为主机驱动器提供两个功能。它提供七个继电器点，可以命令和执行外部有线电路。它还允许用户使用端子板访问集成线圈和触点。

531X191RTBALG4 为主机驱动器提供了七个额外的中继点。这些继电器可用于在连接到电路板的外部电路上执行功能。RTB 点和继电器触点都可以使用此卡列出。作为 G4 版本的电路板，卡中的继电器具有 24 VDC 额定线圈或 37 mA。继电器内的触点额定电流为 2.4A，额定电压为 125 VAC 或 28 VDC。

在开始安装 531X191RTBALG4 继电器端子板之前，请查看安装参数。遵循这些提供的说明有助于降低损坏主板或驱动器的风险。为确保正确安装，请仅允许合格人员操作此卡。所有安装和接线说明均可在相应的设备手册和数据表中找到。该板的制造商通用电气最初为这张卡提供技术支持。

531X191RTBALG4 中继终端板 提供两个功能

【英文介绍】

General Electric developed their 531X191RTBALG4 card as a relay terminal board. Specifically, the device is placed in the 531X replacement driver board family. Installing this card provides two functions for the host drive. It provides seven relay points that can command and execute external wired circuits. It also allows users to access integrated coils and contacts using the terminal board.

The 531X191RTBALG4 provides seven additional relay points for the host drive. These relays can be used to perform functions on external circuits connected to the circuit board. Both RTB points and relay contacts can be listed using this card. As the G4 version of the board, the relay in the card has a 24 VDC rated coil or 37 mA. The contacts in the relay are rated for 2.4A current and rated for 125 VAC or 28 VDC.

Before you begin installing the 531X191RTBALG4 relay terminal board, review the installation parameters. Following these provided instructions helps reduce the risk of damaging the motherboard or drive. To ensure proper installation, allow only qualified personnel to operate the card. All installation and wiring instructions can be found in the corresponding equipment manual and data sheet. The board's manufacturer, General Electric, initially provided technical support for the card.

531X191RTBALG4 中继终端板 提供两个功能
