531X191RTBALG3 中继端子板 供给主机驱动器

【产品详情】

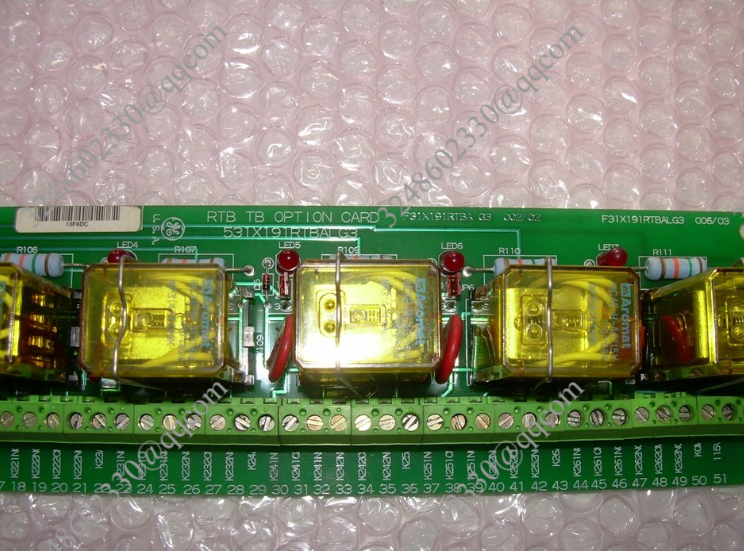

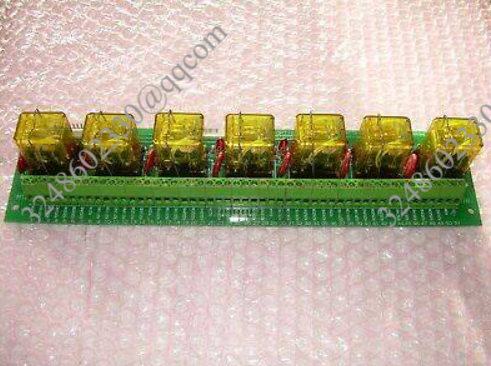

531X191RTBALG3卡由通用电气制造，作为中继端子板。 作为GE的531X替换驱动板系列的成员，该卡可安装到整个品牌的许多驱动器和励磁器中。主板为其安装的主机驱动器提供两个功能。安装此板时，驱动器有七个继电器位置可用。该卡还允许用户访问船上的线圈和触点。

继电器端子板的功能提供给主机驱动器。安装后，终端卡提供七个继电器位置，用于外部连接。任何连接的电路都可以使用531X191RTBALG3板进行控制。 RTB 点和继电器触点的表格可以通过卡计算。该卡是该板的G3修订版，提供与其他版本不同的特定电压和电流速率。 每个继电器内的线圈的额定值为 115 VAC，而触点的额定值为 125 VAC 或 28 VDC。触点还包括额定电流 2.4 A，电路板浪涌电流为 25 mA，保持电流为 14 mA。

在开始安装此主板之前，请务必查看所有提供的安装参数。为了保护电路板的敏感组件，仅允许经过培训的人员操作和安装 531X191RTBALG3 卡。在开始设备安装之前，应彻底检查所有接线说明。 相应的设备手册和数据表包含全面的接线和安装指南。该设备的制造商通用电气是该继电器端子板的原始技术支持提供商。

531X191RTBALG3 中继端子板 供给主机驱动器

【英文介绍】

The 531X191RTBALG3 card was manufactured by General Electric as a trunk terminal board. As a member of GE's 531X replacement driver board family, the card can be installed into many drives and exciters across the brand. The motherboard provides two functions for the host drive on which it is installed. When this board is installed, the driver has seven relay positions available. The card also allows users to access coils and contacts on board.

The function of the relay terminal board is provided to the host driver. After installation, the terminal card provides seven relay positions for external connections. Any connected circuit can be controlled using the 531X191RTBALG3 board. The table of RTB points and relay contacts can be calculated by card. The card is a G3 revision of the board, offering specific voltage and current rates that differ from other versions. The coils within each relay are rated at 115 VAC, while the contacts are rated at 125 VAC or 28 VDC. The contacts also include a rated current of 2.4A, a board surge current of 25 mA, and a holding current of 14 mA.

Before you begin installing this motherboard, be sure to review all provided installation parameters. To protect the sensitive components of the board, only trained personnel are allowed to operate and install the 531X191RTBALG3 card. Check all wiring instructions thoroughly before starting equipment installation. The corresponding equipment manuals and data sheets contain comprehensive wiring and installation guides. General Electric, the manufacturer of the device, is the original technical support provider for the relay terminal board.
