531X191RTBAGG1 继电器端子板 用于与外部电路的有线连接

【产品详情】

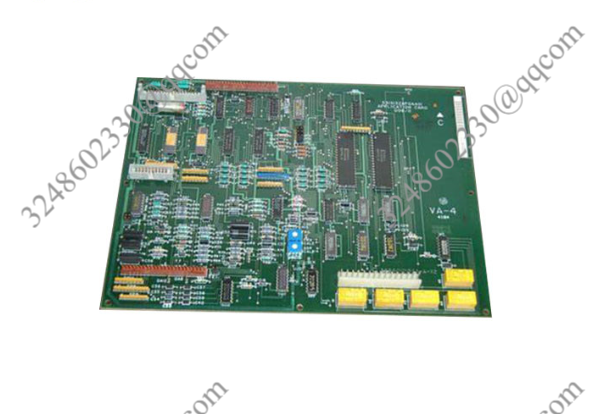

通用电气开发了 531X191RTBAGG1 作为 531X 替换板系列的继电器端子板。GE系列的许多驱动器都可以接受此卡并使用它的功能。安装后，该卡对驱动器有两个用途。它提供七个继电器，用于与外部电路的有线连接。端子板还允许用户访问系统的集成触点和线圈。

该卡为主板安装的驱动器提供了许多有用的功能。当电路板运行时，531X191RTBAGG1 可以通过执行控制功能来控制馈送到七个继电器的外部电路。像这样的继电器终端卡也可以将RTB点和继电器触点制成表格。作为该板的 G1 版本，该板的触点和线圈针对该系列的这一特定部分进行了评级。板速率为 115 VAC 的线圈± 10%，额定保持电流为 9 mA。卡上的触点的额定电流为 0.7 A DC，额定电压为 105 VDC。

保护电路板完整性依赖于用户遵循制造商定义的安装参数。确保只允许经过培训和合格的人员安装此板。如果电路板处理、安装或接线不当，可能会导致设备损坏。531X191RTBAGG1继电器端子手册和数据表中提供了此卡的接线指南。该设备的制造商通用电气最初为该板提供技术支持。

531X191RTBAGG1 继电器端子板 用于与外部电路的有线连接

【英文介绍】

Ge developed the 531X191RTBAGG1 as a relay terminal board for the 531X replacement board family. Many drives in the GE series can accept this card and use its features. Once installed, the card has two uses for the drive. It provides seven relays for wired connections to external circuits. The terminal board also allows the user to access the system's integrated contacts and coils.

The card provides many useful features for motherboard mounted drives. When the board is running, the 531X191RTBAGG1 can control external circuits fed to the seven relays by performing control functions. Relay terminal cards like these can also tabulate RTB points and relay contacts. As the G1 version of the board, the board's contacts and coils are rated for this particular part of the series. Coil with a plate rate of 115 VAC ± 10% and a rated holding current of 9 mA. The contacts on the card are rated for A current of 0.7 A DC and a voltage of 105 VDC.

Protecting board integrity depends on the user following the installation parameters defined by the manufacturer. Ensure that only trained and qualified personnel are allowed to install the board. Improper handling, installation, or wiring of the circuit board may cause damage to the device. Wiring instructions for this card are provided in the 531X191RTBAGG1 relay terminal Manual and data sheet. General Electric, the manufacturer of the device, initially provided technical support for the board.
