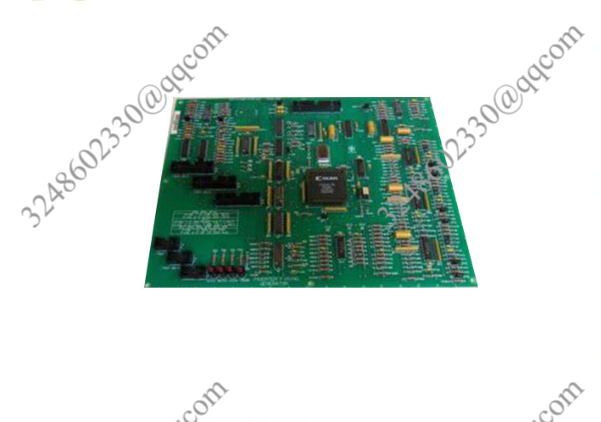

531X191RTBAEG2 继电器端子板 531X 系列

【产品详情】

通用电气为531X板系列开发了191X2RTBAEG531继电器终端卡。该系列的成员是替代板，允许它们安装在许多GE品牌驱动器中。此卡为用户提供了许多板载功能的访问权限。安装后，端子板提供七个继电器来控制外部电路。该卡还允许用户使用端子板访问线圈和触点。

531X191RTBAEG2为用户提供了有用的电路板和驱动功能。连接到电路板的外部电路可以使用此继电器端子卡进行控制。RTB 点和继电器触点的计算也由该板执行。在内部，该卡包含一个 115 VAC 线圈，其中包括 50/60 Hz。船上还发现了许多指示灯。这些集成的 LED 指示灯为用户提供视觉提示，哪些继电器已通电。

该板包含许多制造商提供的安装参数。满足这些要求将保护整个驱动单元的整体完整性。531X191RTBAEG2 板的安装只能由经过培训的合格人员完成，以处理这些卡。 安装和接线说明可在电路板手册和数据表中找到。通用电气，该板的制造商，是技术支持的原始提供商。

531X191RTBAEG2 继电器端子板 531X 系列

【英文介绍】

Ge developed the 191X2RTBAEG531 relay terminal card for the 531X board series. The members of this family are replacement boards, allowing them to be installed in many GE branded drives. This card provides users with access to many onboard functions. Once installed, the terminal board provides seven relays to control the external circuit. The card also allows the user to access coils and contacts using the terminal board.

The 531X191RTBAEG2 provides users with useful board and driver functions. External circuits connected to the board can be controlled using this relay terminal card. Calculations of RTB points and relay contacts are also performed by the board. Internally, the card contains a 115 VAC coil, which includes 50/60 Hz. Many lights were also found on board. These integrated LED indicators provide the user with a visual indication of which relays are powered on.

The board contains many installation parameters provided by the manufacturer. Meeting these requirements will protect the overall integrity of the entire drive unit. Installation of 531X191RTBAEG2 boards should only be done by qualified personnel trained to handle these cards. Installation and wiring instructions can be found in the board manual and data sheet. General Electric, the board's manufacturer, was the original provider of technical support.

531X191RTBAEG2 继电器端子板 531X 系列
