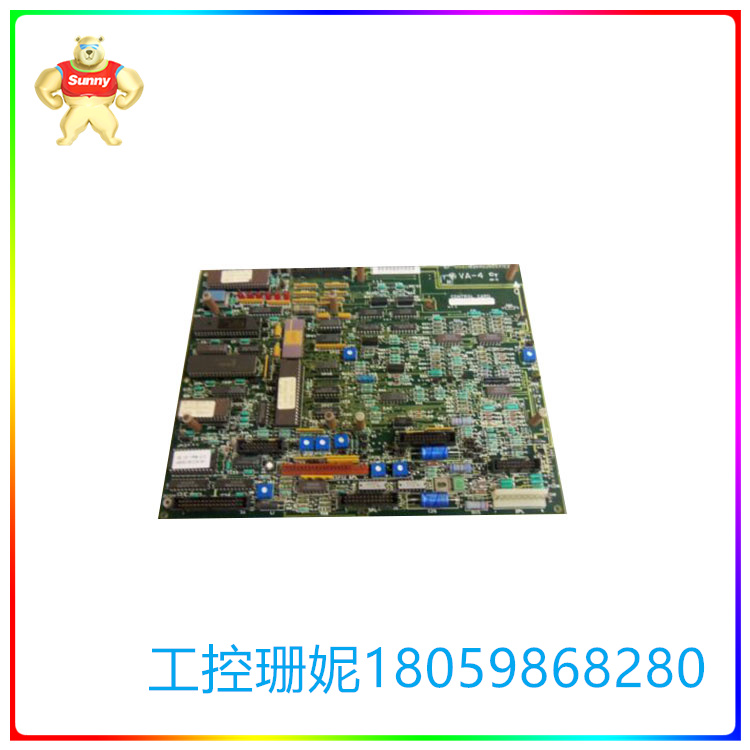

531X187VCTABH1 电压电流传感器卡 可调速驱动器

【产品详情】

531X187VCTABH1是通用电气为531X板系列开发的电压电流传感器卡。最初，此卡设计用于AC-300，DC-300和AC-500系列驱动器产品操作可调速驱动器。现在，该板几乎可以放置在任何驱动产品操作驱动器中，只是安装在与前面列出的系列不同的安装位置。该传感器卡可以通过将输入电压信号转换为隔离电流或隔离电压信号来工作。

该板提供电压输入的转换点。531X187VCTABH1包括两个隔离输出，在电路板上标记为ATB和BTB。两个隔离电源来自馈送到电路板的 24 VDC 电源。每个隔离电源为两个通道的输出供电。板上的可配置点允许用户根据各个作业负载的需要调整功能。位于卡上的开关允许调整产生满量程输出所需的输入电平。还包括跳线，允许用户调整板上的滤波时间常数。

用户应满足与主板和驱动器相关的所有安装参数。整体驱动系统的完整性取决于用户遵循所有这些制造商提供的说明。只有有资格操作主板的人员才能安装此驱动器。有关将 531X187VCTABH1 连接到其电路板的完整指南，请参阅器件手册和数据表。531X系列板的技术支持最初由通用电气提供。

531X187VCTABH1 电压电流传感器卡 可调速驱动器

【英文介绍】

The 531X187VCTABH1 is a voltage and current sensor card developed by General Electric for the 531X board family. Originally, the card was designed to operate adjustable-speed drives in the AC-300, DC-300 and AC-500 series drive products. Now, the board can be placed in almost any drive product operation drive, just installed in a different mounting location than the series listed earlier. The sensor card can operate by converting an input voltage signal into an isolated current or isolated voltage signal.

The board provides a switching point for the voltage input. The 531X187VCTABH1 includes two isolated outputs, labeled ATB and BTB on the board. The two isolated power supplies come from a 24 VDC power supply fed to the board. Each isolated power supply supplies the output of both channels. Configurable points on the board allow users to adjust functions to the needs of individual job loads. A switch located on the card allows adjustment of the input level required to produce a full-scale output. Jumpers are also included, allowing the user to adjust the filtering time constant on the board.

The user should meet all installation parameters related to the motherboard and the drive. The integrity of the overall drive system depends on the user following the instructions provided by all these manufacturers. Only persons qualified to operate the motherboard can install this drive. For complete guidance on connecting the 531X187VCTABH1 to its circuit board, see the device manual and data sheet. Technical support for the 531X series boards was initially provided by General Electric.

531X187VCTABH1 电压电流传感器卡 可调速驱动器
