531X187VCTABG1 电压电流传感器卡  531X 系列 驱动板

【产品详情】

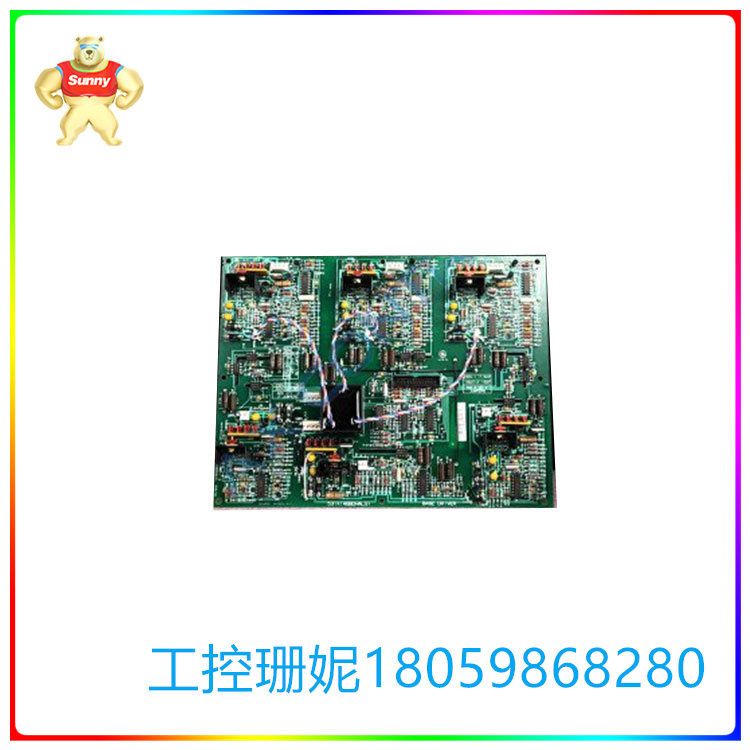

通用电气 531X187VCTABG1 是一款电压电流传感器卡。 该双通道板是为 531X 系列驱动板开发的。它设计用于在驱动器产品操作可调驱动器中运行，包括 AC-300、DC-300 和 AC-500 系列驱动器。驱动器产品操作系列的其他成员可以在安装此卡的情况下运行。安装后，电路板上的传感器可用作电压到隔离电流或电压到隔离电压。

安装后，531X187VCTABG1 为输入电压提供隔离电流的转换点。 在卡上可以找到两个标记为ATB和BTB的隔离输出。该板接收 24 VDC 电源，产生隔离式双电源，馈电到两个通道的输出。电路板上的许多功能可以调整，以满足工作特定的要求。卡上的可配置跳线允许用户调整过滤时间常数。用户还可以使用板载开关调整产生满量程输出所需的输入电平。

用户应努力满足设备制造商概述的所有安装参数。只有经过处理和组装驱动板培训的合格人员才能安装此板。布线是另一个关键方面，只能由有经验的人员执行。要查看 531X187VCTABG1 接线和安装的完整指南，请参阅主板手册和数据表。 通用电气是 531X 系列板的原始技术支持提供商。

531X187VCTABG1 电压电流传感器卡  531X 系列 驱动板

【英文介绍】

The General Electric 531X187VCTABG1 is a voltage and current sensor card. The dual channel board is developed for the 531X series driver board. It is designed to operate in tunable drives for drive product operation, including the AC-300, DC-300 and AC-500 series drives. Other members of the Drive product operation family can run with this card installed. After installation, the sensors on the board can be used as voltage to isolation current or voltage to isolation voltage.

After installation, the 531X187VCTABG1 provides an isolated current transfer point for the input voltage. Two isolated outputs labeled ATB and BTB can be found on the card. The board receives 24 VDC power, producing isolated dual power supplies that feed output to two channels. Many functions on the board can be adjusted to meet job-specific requirements. A configurable jumper on the card allows the user to adjust the filtering time constant. The user can also adjust the input level required to produce a full-scale output using an onboard switch.

The user should strive to meet all installation parameters outlined by the device manufacturer. Only qualified personnel trained in handling and assembling drive boards can install this board. Cabling is another key aspect that can only be performed by experienced personnel. For a complete guide to wiring and installation of the 531X187VCTABG1, see the motherboard manual and data sheet. Ge is the original technical support provider for the 531X series boards.
