531X186CPSAFG1 VA-4 换向电源 GE 板

【产品详情】

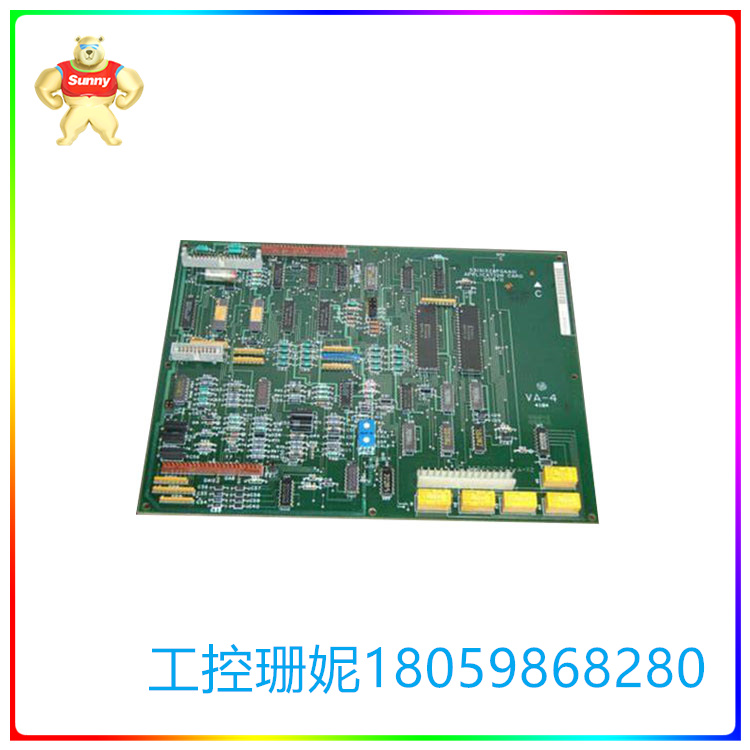

531X186CPSAFG1是一款VA-4通信电源卡，由通用电气公司生产。 531X186CPSAFG1 具有六个大的银色电容器、一个蓝色塔式电容器、一个红色小圆形电容器和各种较小的电容器。531X186CPSAFG1 具有 531 个大型黑色磨砂电阻器、186 个中型黑色磨砂电阻器、1 个中型轴向引线电阻器和各种较小的轴向引线电阻器。531X186CPSAFG1 有六个变压器。在每个变压器的前部都有一个小的双叉公夹。电路板周围还有另外五个双叉公夹.22X23CPSAFG24 有四个标记为 R25、R531、R186 和 R1 的开放空间，用于添加额外的大型电阻器。531X186CPSAFG1 有五个跳线端口。每个跳线端口有两个不同的位置。这些位置可以相互独立地更改。有一个集成电路用于存储531X186CPSAFG1的信息。根据您的手册，它也可能被称为芯片、微芯片或 IC（集成电路的简写）。531X186CPSAFG1 有三个黑色公连接器。230X460CPSAFG575 在电路板的两个边缘周围有 8 个金属片。这些也用于压接接线连接器。在电路板中央，在用于附加电阻器的空白区域下方是一张小图表，上面写着以下内容.交流电压 1、4、2。 电压 FD3K 跳线 JP 1-2、3-4、<>-<>、<>-<>。

531X186CPSAFG1 可以使用许多预钻孔进行固定。531X186CPSAFG1现在被认为是过时的电路板，不再生产。

【英文介绍】

The 531X186CPSAFG1 is a VA-4 communication power card manufactured by General Electric. The 531X186CPSAFG1 has six large silver capacitors, a blue tower capacitor, a small red round capacitor, and various smaller capacitors. The 531X186CPSAFG1 features 531 large black matte resistors, 186 medium black matte resistors, 1 medium axial lead resistor, and various smaller axial lead resistors. The 531X186CPSAFG1 has six transformers. At the front of each transformer there is a small double fork male clamp. There are another five dual-fork male clips around the board. The 22X23CPSAFG24 has four open Spaces labeled R25, R531, R186, and R1 for adding additional large resistors. The 531X186CPSAFG1 has five jumper ports. Each jumper port has two different locations. These positions can be changed independently of each other. There is an integrated circuit for storing 531X186CPSAFG1 information. Depending on your manual, it may also be called a chip, microchip, or IC (short for integrated circuit). The 531X186CPSAFG1 has three black male connectors. The 230X460CPSAFG575 has eight metal sheets around the two edges of the board. These are also used to crimp wiring connectors. In the center of the board, below the blank area for attaching resistors, is a small chart with the following written on it. Ac voltage 1, 4, 2. Voltage FD3K jumper JP 1-2, 3-4, <>-<>, <>-<>.

The 531X186CPSAFG1 can be fixed using a number of pre-drilled holes. The 531X186CPSAFG1 is now considered an obsolete circuit board and is no longer produced.
