531X1860CPSAHG1 通讯电源板 通用驱动系统

【产品详情】

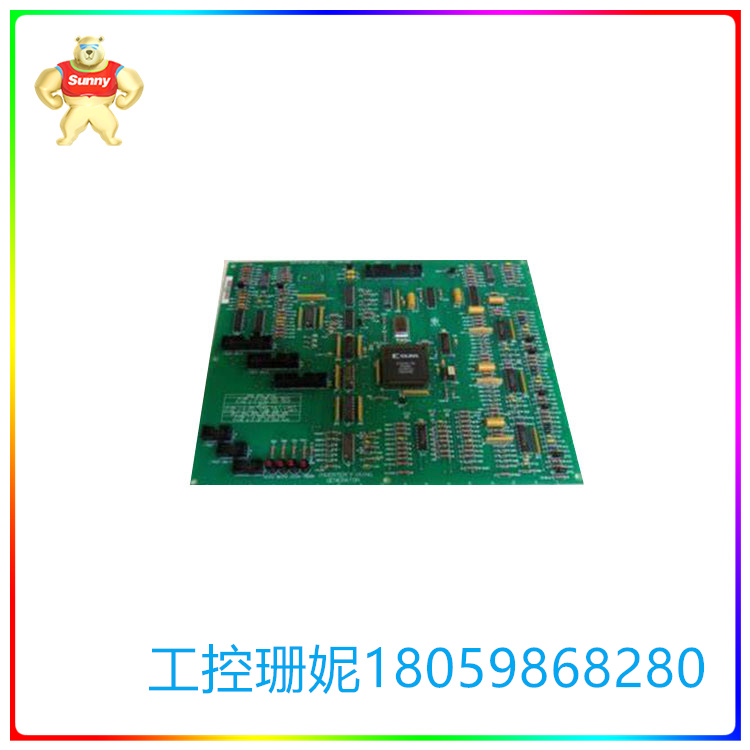

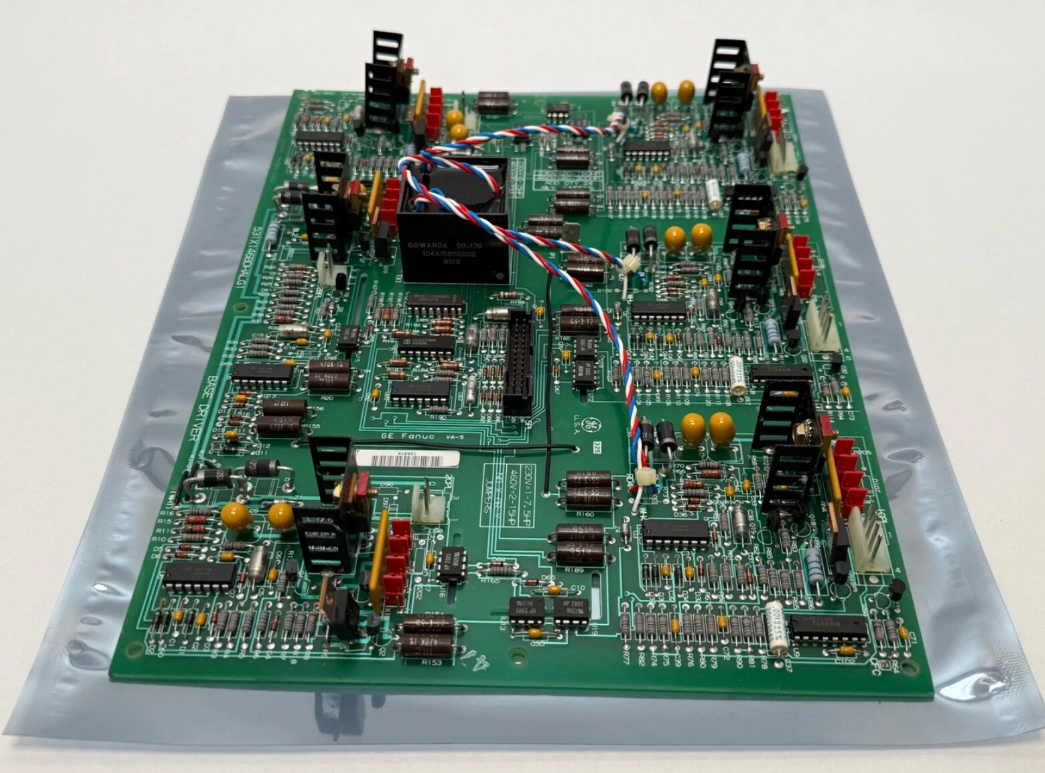

531X1860CPSAHG1是GE制造的PCB板。 此PCB不是为任何特定系统设计的;相反，它设计用于GE公司的几个通用驱动系统。请参阅系统的制造商规格以确定兼容性。

531X1860CPSAHG1用作换向电源卡。这也称为开关模式电源。与线性稳压器相比，其主要优点是功耗更小，效率更高。该板标记为“GE FANUC VA-3”。该板在每个角落和五个附加点进行工厂钻孔。它的表面还印有两张桌子。一个是交流电压/电压FDBK跳线表，而另一个是KVA额定值/ JP5引脚设置表。

531X1860CPSAHG1 由六个变压器组成。这些元件中的每一个都与碳复合电阻器、金属膜电阻器、两位接头连接器和二极管配对。该板具有五个额外的两针接头连接器和三个垂直针电缆连接器。它有几行电阻器，位于电路板的其他位置。其他元件包括一个MOV（金属氧化物压敏电阻）、一个集成电路、十三个插接式连接器、六个绕线电阻器、六个轴向电解电容器和一个表面贴装电解电容器。电路板顶部边缘的刺入式连接器标记为 ASAA、ASAM、ASAK、ASBA、ASEM、ASBK、ASCA、ASCM 和 ASCK。电路板侧面的卡入式连接器标记为 P2C、N2、P1 和 N1。有关该板及其组件的更多信息，请参阅手册或数据表等制造商出版物。

531X1860CPSAHG1 通讯电源板 通用驱动系统

【英文介绍】

The 531X1860CPSAHG1 is a PCB board manufactured by GE. This PCB is not designed for any specific system; Instead, it is designed to work with several general purpose drive systems from GE. Refer to the manufacturer's specifications for your system to determine compatibility.

The 531X1860CPSAHG1 is used as a reversing power card. This is also called switching mode power supply. Compared with linear regulators, its main advantages are lower power consumption and higher efficiency. The board is labeled "GE FANUC VA-3". The board is factory drilled at each corner and five additional points. It also has two tables printed on its surface. One is the AC voltage/voltage FDBK jumper table, while the other is the KVA rating/JP5 pin setting table.

The 531X1860CPSAHG1 consists of six transformers. Each of these elements is paired with carbon composite resistors, metal film resistors, two-position connectors, and diodes. The board has five additional two-pin connector and three vertical pin cable connectors. It has several lines of resistors, located elsewhere on the board. Other components include one MOV (metal oxide varistor), one integrated circuit, thirteen plug-in connectors, six wound resistors, six axial electrolytic capacitors and one surface mount electrolytic capacitor. The puncture connectors on the top edge of the board are labeled ASAA, ASAM, ASAK, ASBA, ASEM, ASBK, ASCA, ASCM, and ASCK. The snap-in connectors on the side of the board are labeled P2C, N2, P1, and N1. For more information about the board and its components, refer to manufacturer publications such as manuals or data sheets.
