531X144DRGAAGI 其表面放置了几种不同类型的电气部件

【产品详情】

531X144DRGAAGI模块是由通用电气设计和生产的诊断读出板。

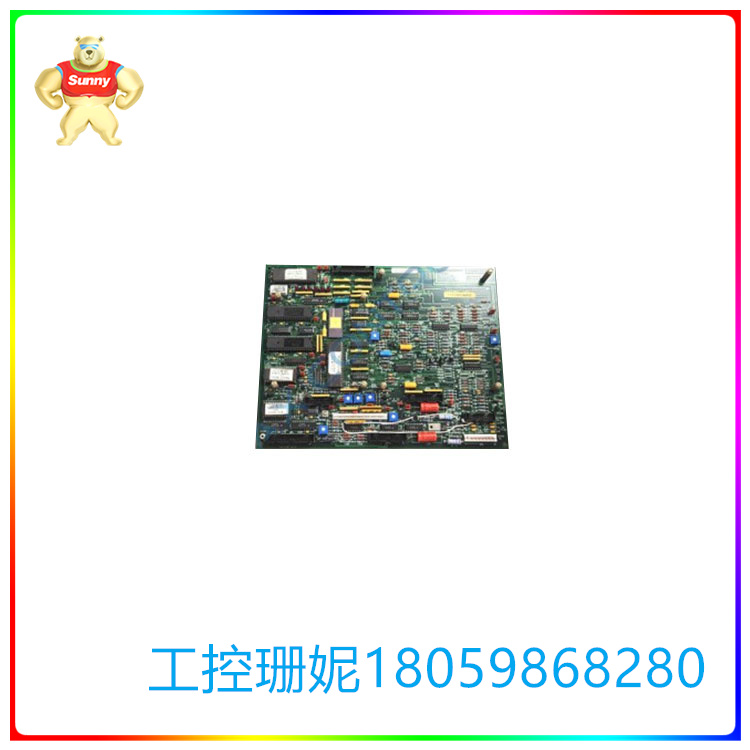

531X144DRGAAGI 诊断板是一种小型方形板，其表面放置了几种不同类型的电气部件。在左侧，您可以看到两个相互平行的公连接端口。在其下方，有一个小型集成电路。另一个集成电路位于 531X144DRGAAGI 诊断板的顶部，朝中间方向。在电路板的右侧，您将看到一排六个电阻器排列在右侧的一排六个 LED 旁边。在左上角，有两个组件标记为“卡测试”和“细胞测试”跳线。分散在这些电气元件中，您将看到更多的电阻器，总共四个电容器和一个小二极管。

位于 531X144DRGAAGI 诊断板的侧面，您可以看到总共六个小安装孔。当您要安装 531X144DRGAAGI 诊断板时，请务必彻底清洁安装区域，确保清除该区域的任何污垢、灰尘和碎屑。

531X144DRGAAGI 其表面放置了几种不同类型的电气部件

【英文介绍】

The 531X144DRGAAGI module is a diagnostic readout board designed and produced by General Electric.

The 531X144DRGAAGI diagnostic board is a small square board on which several different types of electrical components are placed. On the left, you can see two public connection ports parallel to each other. Underneath it, there's a small integrated circuit. The other integrated circuit is located at the top of the 531X144DRGAAGI diagnostic board, towards the middle. On the right side of the board, you will see a row of six resistors lined up next to a row of six leds on the right. In the upper left corner, there are two components labeled "Card Test" and "Cell Test" jumpers. Scattered among these electrical components, you will see more resistors, a total of four capacitors and a small diode.

Located on the side of the 531X144DRGAAGI diagnostic board, you can see a total of six small mounting holes. When you install the 531X144DRGAAGI diagnostic board, be sure to clean the installation area thoroughly, making sure to remove any dirt, dust, and debris from the area.
