531X138RDGAAG1  机架驱动器插头卡电路板组件

【产品详情】

531X138RDGAAG1是GE制造的机架驱动器插头卡电路板组件。该PCB适用于各种GE通用驱动系统，如AC300或DC300。虽然通常被认为已经过时，但这些驱动器的原始灵活设计使其能够在工业环境中用于许多任务。

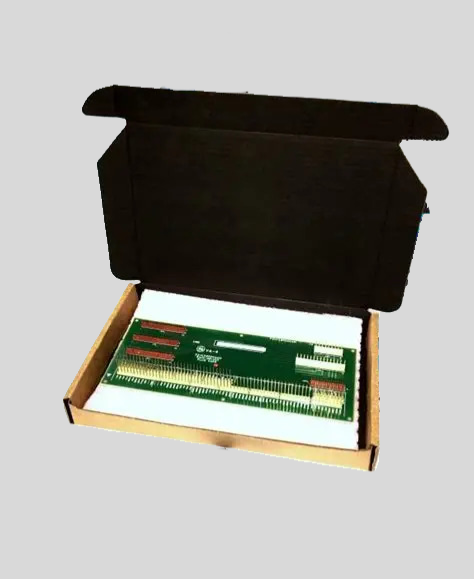

531X138RDGAAG1 在大型矩形板上只有几个组件。该板允许通过一块电路板在机架系统中进行多个互连。它标有多个代码，包括其主 （531x） 和辅助 （F31x） 板号，以及 VA-4、002/0 和 FR00/0。电路板的上半部分由六个针座连接器填充。有三个 24 针连接器堆叠在左侧电路板一侧。在右侧，三个连接器也从上到下堆叠。这些连接器包括一个 9 针、一个 14 针和一个 16 针连接器。此外，底部边缘有两行垂直引脚连接器。这些连接器上的引脚更长、更坚固。每个引脚都有单独的标记和编号，第一行的标签位于连接器下方，第二行的标签位于连接器上方。

531X138RDGAAG1  机架驱动器插头卡电路板组件

【英文介绍】

The 531X138RDGAAG1 is a rack driver plug card circuit board assembly manufactured by GE. The PCB is suitable for a variety of GE universal drive systems such as the AC300 or DC300. While often considered obsolete, the original flexible design of these drives enables them to be used for many tasks in industrial environments.

The 531X138RDGAAG1 has only a few components on a large rectangular board. The board allows multiple interconnections in the rack system via a single circuit board. It is marked with multiple codes, including its main (531x) and auxiliary (F31x) board numbers, as well as VA-4, 002/0, and FR00/0. The top half of the board is filled with six pin base connectors. There are three 24-pin connectors stacked on the left side of the board. On the right, three connectors are also stacked from top to bottom. These connectors include a 9-pin, a 14-pin, and a 16-pin connector. In addition, the bottom edge has two rows of vertical pin connectors. The pins on these connectors are longer and stronger. Each pin is individually labeled and numbered, with the label on the first row located below the connector and the label on the second row located above the connector.
