531X135PRGAYM2 可选编程器模块 可以安装在控制卡上

【产品详情】

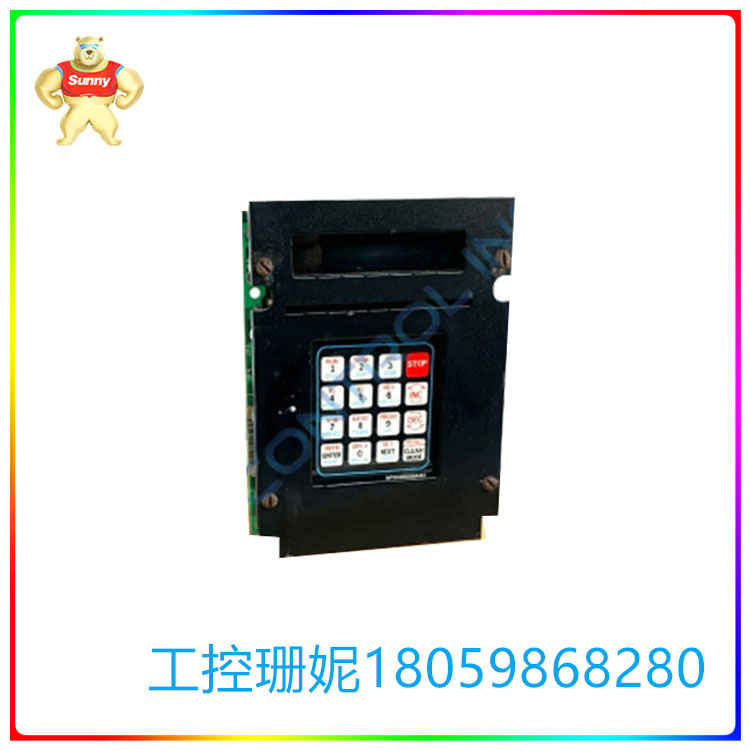

531X135PRGAYM2 是专为通用电气 DC300 200-800 HP 系统设计的可选编程器模块。该模块可以安装在控制卡上，也可以用作手持式编程器。虽然531X135PRGAYM2最初由通用电气制造，但不再通过OEM提供。它通常仍可通过 AX 控制库存获得。

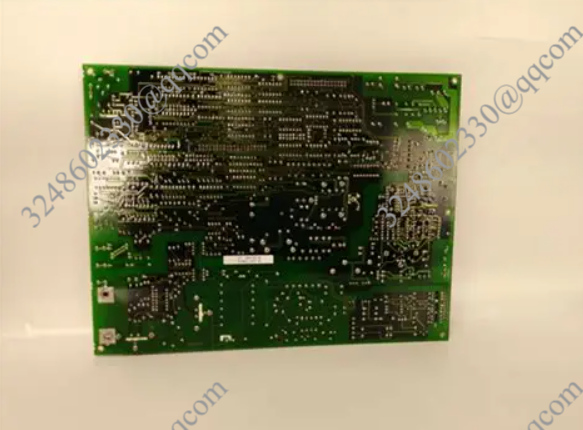

531X135PRGAYM2 是一块重约 0.33 磅的小板，在添加任何包装或装箱材料之前装运。该装置带有通用电气徽标、各种代码，包括其 531x 部件号和备用 F31x 部件号，以及参考指示符，以便轻松识别已安装的组件。其中包括 10 位荧光显示屏、多个跳线开关、集成电路、电阻网络阵列、电阻器和晶体管。

该板设计为在三种特定模式下运行。这包括运行驱动器的操作模式、检查更改的参数模式以及监视驱动器值和访问驱动器测试的诊断模式。

有关此主板及其工作原理的更多信息，请参阅产品手册和用户指南等原始文档。这包括 GEK-85766，DC300 驱动系统的用户手册。此特定组件的数据手册也将有所帮助。应阅读、理解并遵循安装指南和处理程序。如果没有这些信息，您可能会损坏设备或将工人置于危险之中。

531X135PRGAYM2 可选编程器模块 可以安装在控制卡上

【英文介绍】

The 531X135PRGAYM2 is an optional programmer module designed for General Electric DC300 200-800 HP systems. The module can be mounted on a control card or used as a handheld programmer. Although the 531X135PRGAYM2 was originally manufactured by General Electric, it is no longer available through Oems. It is usually still available through AX control inventory.

The 531X135PRGAYM2 is a small board that weighs about 0.33 pounds and is shipped before any packaging or crating material is added. The unit comes with the GE logo, various codes, including its 531x part number and alternate F31x part number, and reference indicators to easily identify installed components. These include 10-bit fluorescent displays, multiple jumper switches, integrated circuits, resistor network arrays, resistors and transistors.

The board is designed to operate in three specific modes. This includes running the drive's operating mode, checking parameter mode for changes, and diagnostic mode for monitoring drive values and accessing drive tests.

For more information about this motherboard and how it works, please refer to original documentation such as the product manual and user guide. This includes GEK-85766, the user's manual for the DC300 drive system. A data book for this particular component will also be helpful. Installation guidelines and procedures should be read, understood and followed. Without this information, you could damage equipment or put workers at risk.

531X135PRGAYM2 可选编程器模块 可以安装在控制卡上
