531X133PRUALG1 过程接口板 具有单个三位端子条

【产品详情】

531X133PRUALG1是由通用电气制造的电路板组件。该板可用于GE制造的通用驱动系统。系统的用户指南或手册将帮助您确定此PCB与特定系统之间的兼容性。

531X133PRUALG1 是一款过程接口板。接口板通常用于过滤、放大、隔离输入信号并将其转换为适合用于连接控制系统的输出。531X133PRUALG1 是 531x 系列中可用的多个过程接口板版本之一。

531X133PRUALG1 在每个角落都有钻孔，以提供安装选项。该板标有 F31X133PRUALG1、006/01 和 002/01 等代码。大多数组件都带有来自其制造商的单个零件号，并且还标有参考标志，以便于识别。

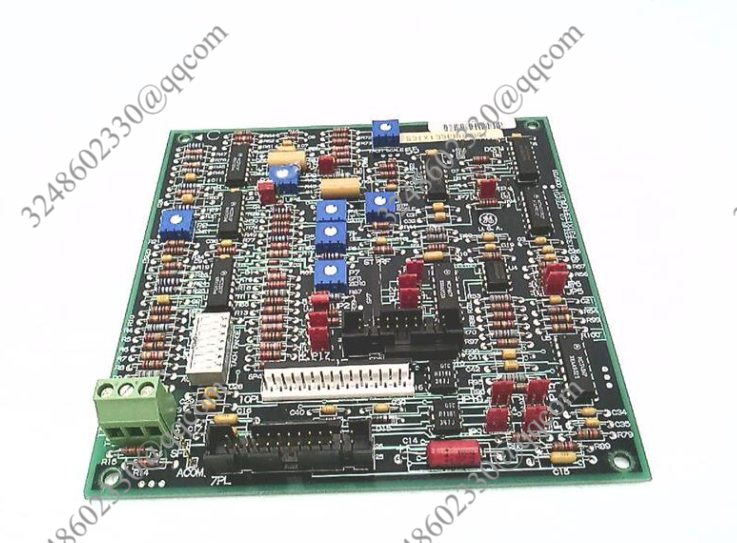

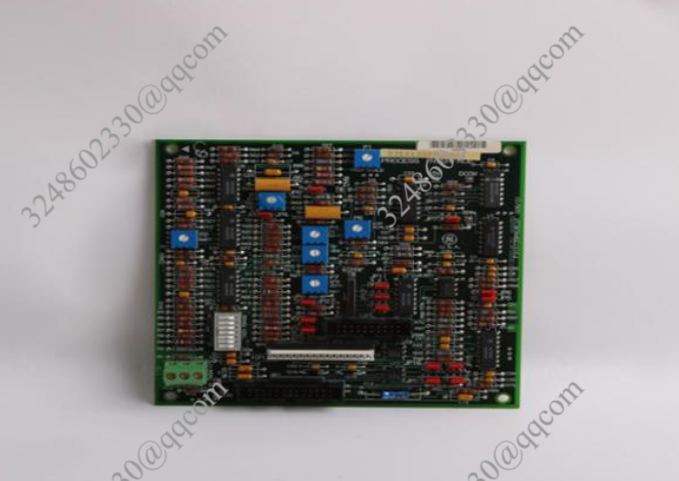

531X133PRUALG1 具有单个三位端子条。它位于电路板的一角。它有两个电缆连接器。两个连接器都是公垂直引脚组件。还有一个接头连接器位于电路板表面。该板有七个电位器、五个电阻网络阵列、数十个金属膜电阻器、二极管和陶瓷电容器、聚酯乙烯基电容器以及单个铝电解电容器。板上放置了多个TP测试点和跳线开关。集成电路包括模拟线路接收器和模拟逆变器。还有一个带有七个独立拨动的开关组件。此组件标记为“转速范围”。有关开发板、其功能以及安装和维护的更多信息，可通过 GE 手册和用户指南访问。

531X133PRUALG1 过程接口板 具有单个三位端子条

【英文介绍】

The 531X133PRUALG1 is a circuit board component manufactured by General Electric. The board can be used in general-purpose drive systems manufactured by GE. The system's user guide or manual will help you determine the compatibility of this PCB with your particular system.

The 531X133PRUALG1 is a process interface board. Interface boards are typically used to filter, amplify, isolate and convert input signals into outputs suitable for connecting control systems. The 531X133PRUALG1 is one of several process interface board versions available in the 531x series.

The 531X133PRUALG1 has drill holes at each corner to provide installation options. The board is marked with codes such as F31X133PRUALG1, 006/01, and 002/01. Most components carry a single part number from their manufacturer and are also marked with a reference mark for easy identification.

The 531X133PRUALG1 has a single three-position terminal bar. It is located in the corner of the circuit board. It has two cable connectors. Both connectors are male vertical pin assemblies. There is also a splice connector located on the board surface. The board has seven potentiometers, five resistor network arrays, dozens of metal film resistors, diode and ceramic capacitors, polyester vinyl capacitors, and a single aluminum electrolytic capacitor. Multiple TP test points and jumper switches are placed on the board. The integrated circuit includes an analog line receiver and an analog inverter. There is also a switch assembly with seven independent toggles. This component is labeled Speed Range. More information about the development board, its features, and installation and maintenance is available in the GE manual and user Guide.
