531X133PRUAGG1 GE 工艺接口 PCB 过程接口卡

【产品详情】

531X133PRUAGG1是GE公司制造的PCB组件。该板与 531x 系列的其他部分一起设计为通用板，可用于通用电气制造的多个驱动系统。有关更换订购信息，请参阅驱动系统的用户指南。

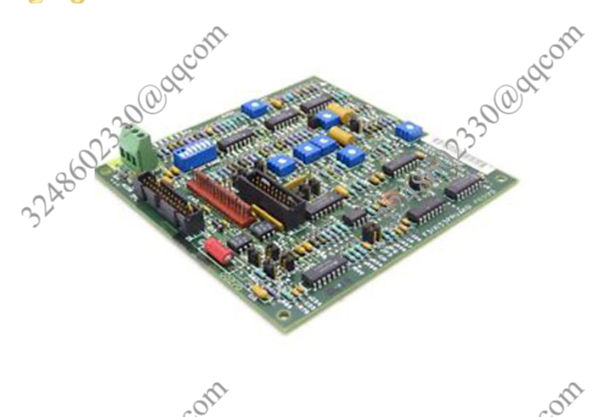

531X133PRUAGG1 是一款过程接口卡。 PCB 标有电路板 ID 号、制造商徽标以及 FR00/0、004/0、005/0、VA-4 和 F31X133PRUAGG1 等标记。位于电路板表面上的大多数元件都标有某种参考标志，以简化识别。

531X133PRUAGG1 是一款元件密集型电路板，包含许多电容器、电阻器和二极管。电阻器往往由金属膜制成，而电容器可能由聚酯乙烯基、电解或陶瓷材料制成。该板还具有七个电位计组件和七个电阻网络阵列。电位计组件都单独标有它们控制的范围，例如P7也标有“SFB Zero”。

531X133PRUAGG1 在每个角落都经过工厂钻孔，以便安装。该板具有三个引脚连接器，其中包括一个 <> 针接头连接器和两个垂直公头电缆连接器。该板也是三位端子条的所在地。其他组件包括 <> 个集成电路、跳线开关、TP 测试点和一个 <> 个位置开关组件。该开关标记为“Tach Range”。其每个单独的切换都可以单独设置为打开或关闭。有关此主板或其组件的更多信息，请参阅制造商用户指南或手册。

531X133PRUAGG1 GE 工艺接口 PCB 过程接口卡

【英文介绍】

The 531X133PRUAGG1 is a PCB component manufactured by GE. The board, along with the rest of the 531x series, is designed as a universal board that can be used in multiple drive systems manufactured by GE. For replacement ordering information, see the driver system's user guide.

The 531X133PRUAGG1 is a process interface card. The PCB is marked with the board ID number, manufacturer's logo, and markings such as FR00/0, 004/0, 005/0, VA-4, and F31X133PRUAGG1. Most components located on the surface of the board are marked with some kind of reference mark to simplify identification.

The 531X133PRUAGG1 is a component-intensive board containing many capacitors, resistors and diodes. Resistors tend to be made of metal film, while capacitors may be made of polyester vinyl, electrolytic, or ceramic materials. The board also has seven potentiometer assemblies and seven resistance network arrays. The potentiometer components are individually marked with the range they control, for example the P7 is also marked "SFB Zero".

The 531X133PRUAGG1 is factory drilled at each corner for installation. The board has three pin connectors, including a <> pin connector and two vertical male cable connectors. The board is also home to three terminal strips. Other components include <> an integrated circuit, a jumper switch, a TP test point, and a <> position switch assembly. The switch is labeled "Tach Range". Each of its individual toggles can be individually set to turn on or off. For more information about this motherboard or its components, see the manufacturer's user Guide or manual.
