531X133PRUABG1 531x系列变频器 具有多种连接选项

【产品详情】

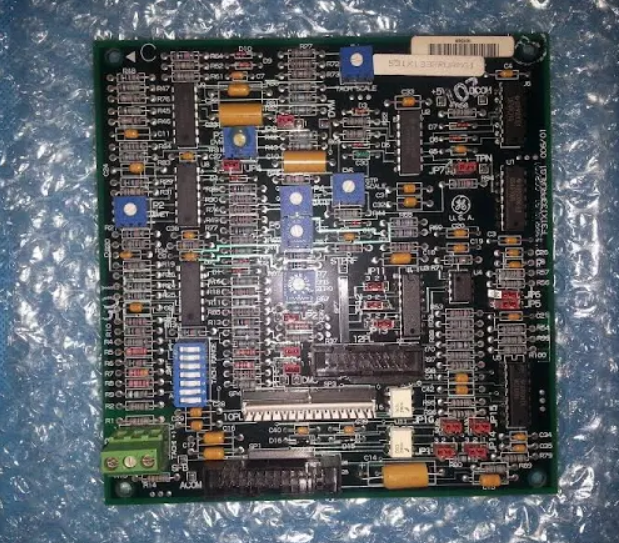

531X133PRUABG1是由通用电气公司制造的PCB组件。531x系列变频器设计用于安装到GE品牌的各种通用变频器中。该特定板用作工艺接口卡。

531X133PRUABG1 设计为方形板，带有六个工厂制造的钻孔，以便安装板。每个角放置一个孔，并在两个相对的对角线上放置附加孔。该板标有制造商的徽标、标识号以及 44A722455-001 和 002/2 等代码。

531X133PRUABG1 具有多种连接选项。这包括一个带螺钉连接的三位端子条和位于其后面的两个端子触点、两个带多个引脚的垂直引脚公板连接器和两个针座连接器。针座并排放置在电路板表面上。电路板上还放置了多个TP测试点。

531X133PRUABG1 具有 <> 个跳线开关、<> 个电位计和 <> 个集成电路。集成电路包括逻辑IC和高性能模拟线路驱动器，具有快速转换时间和高阻抗输入。它由二极管、金属膜电阻器和不同材料的电容器构成，包括电解、陶瓷和聚酯乙烯基。还有一个七位开关，沿电路板的顶部边缘放置。

有关 531X133PRUABG1 板、其处理要求和安装程序以及有关功能和维护的更多信息，可通过引用此部件号的制造商出版物找到。

531X133PRUABG1 531x系列变频器 具有多种连接选项

【英文介绍】

The 531X133PRUABG1 is a PCB component manufactured by General Electric Company. The 531x series drives are designed to be installed in a wide range of general-purpose drives under the GE brand. This particular board is used as a process interface card.

The 531X133PRUABG1 is designed as a square plate with six factory-made drill holes for mounting the plate. One hole is placed at each corner and additional holes are placed on two opposite diagonals. The board is marked with the manufacturer's logo, identification number, and code 44A722455-001 and 002/2.

The 531X133PRUABG1 has a variety of connection options. This includes a three-terminal strip with screw connections and two terminal contacts located behind it, two vertical pin male connectors with multiple pins, and two pin base connectors. Pin holders are placed side by side on the board surface. Multiple TP test points were also placed on the board.

The 531X133PRUABG1 has <> jumper switches, <> potentiometers, and <> integrated circuits. Integrated circuits include logic ics and high-performance analog line drivers with fast conversion times and high impedance inputs. It consists of diodes, metal film resistors, and capacitors of different materials, including electrolysis, ceramics, and polyester vinyl. There is also a seven-position switch that is placed along the top edge of the board.

More information about the 531X133PRUABG1 board, its processing requirements and installation procedures, and about functionality and maintenance can be found through manufacturer publications that reference this part number.
