531X133PRUAAG1 工艺接口卡 由多个连接器组成

【产品详情】

531X133PRUAAG1是通用电气制造的印刷电路板组件，是531x系列替换板的一部分。该特定板用作工艺接口卡。531x 系列 PCB 设计用于在 GE 目录中的多个通用驱动器上工作。

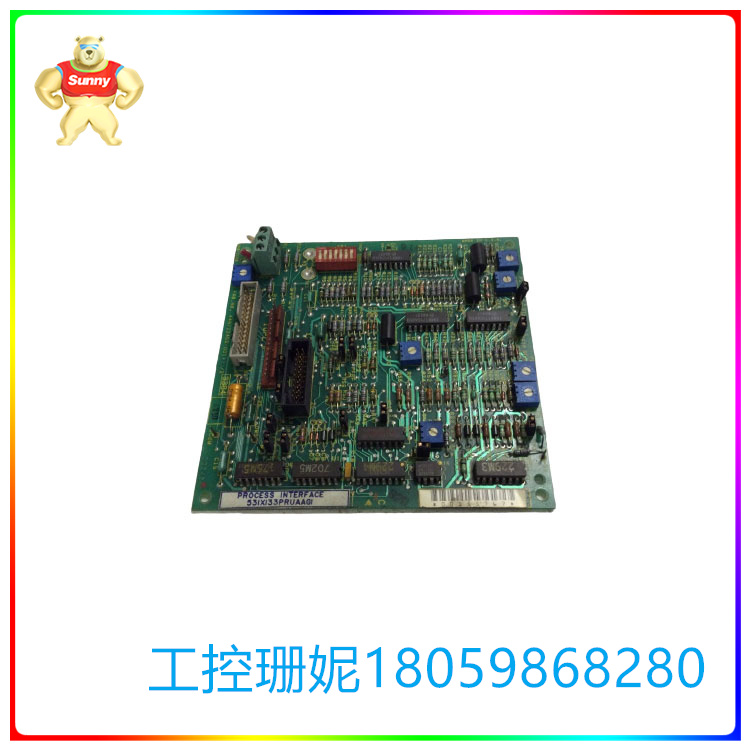

531X133PRUAAG1 是一块方形板，每个角落都有工厂制造的钻孔。两个相对的角有一个额外的钻孔。董事会除了其识别号和GE徽标外，还标有多个代码。其中包括 002/2、R02/2、2984、VA-4 和 44A722455-001 等标记。该板是在美国制造的。

531X133PRUAAG1 由多个连接器组成。这包括位于左上角的三个位置端子条。该板有两个垂直针头连接器。它们并排位于左侧板边缘附近。它还必须连接到额外的板连接器。这些也是不同引脚数的垂直（公）连接器。

531X133PRUAAG1 的其他组件包括 <> 个电位计、<> 多个跳线开关、<> 个集成电路、二极管、金属膜电阻器和电容器。电容器由陶瓷和电解材料等材料制成。该板还具有一个七位开关组件。每个位置都有编号，该组件的一侧标记为“打开”，以帮助操作员轻松识别每个开关组件的正确位置。大多数组件都标有参考标志，以便于识别。有关电路板、其组件的更多信息以及有关处理或安装的信息，可通过制造商的出版物（如手册和用户指南）访问。

531X133PRUAAG1 工艺接口卡 由多个连接器组成

【英文介绍】

The 531X133PRUAAG1 is a printed circuit board assembly manufactured by General Electric as part of the 531x series replacement board. This particular board is used as a process interface card. The 531x series PCB is designed to work on multiple general-purpose drives in the GE catalog.

The 531X133PRUAAG1 is a square plate with factory-made drill holes at each corner. Two opposite corners have an additional drill hole. The board is marked with multiple codes in addition to its identification number and GE logo. These include markings such as 002/2, R02/2, 2984, VA-4, and 44A722455-001. The board is manufactured in the United States.

The 531X133PRUAAG1 consists of multiple connectors. This includes the three position terminal strips located in the upper left corner. The board has two vertical needle connectors. They are located side by side near the edge of the left panel. It must also be connected to additional board connectors. These are also vertical (male) connectors with different pin numbers.

Other components of the 531X133PRUAAG1 include <> potentiometers, <> multiple jumper switches, <> integrated circuits, diodes, metal film resistors, and capacitors. Capacitors are made of materials such as ceramics and electrolytic materials. The board also has a seven-position switch assembly. Each position is numbered and one side of that component is labeled "On" to help operators easily identify the correct position of each switch component. Most components are marked with reference marks for easy identification. More information about the board, its components, and information about handling or installation can be accessed through the manufacturer's publications, such as manuals and user guides.
