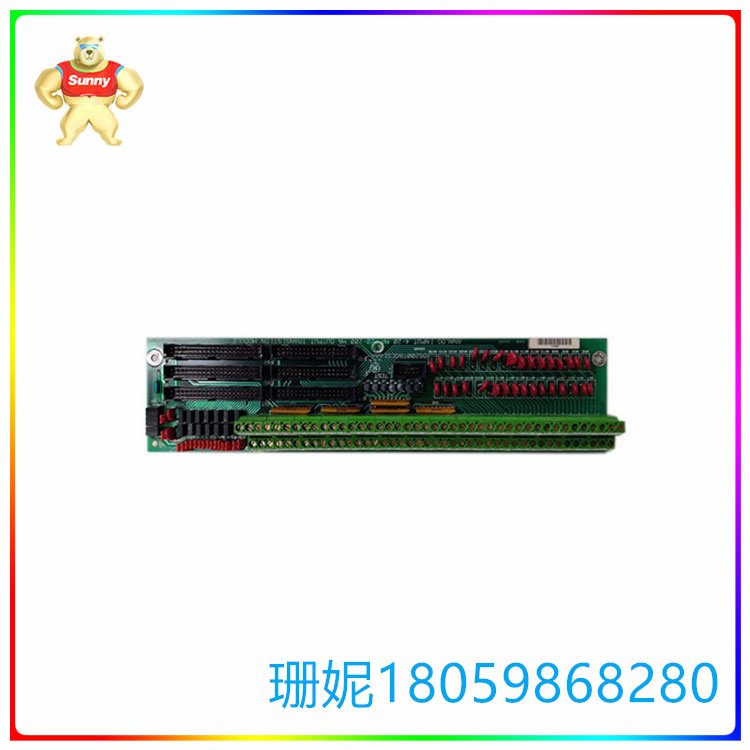

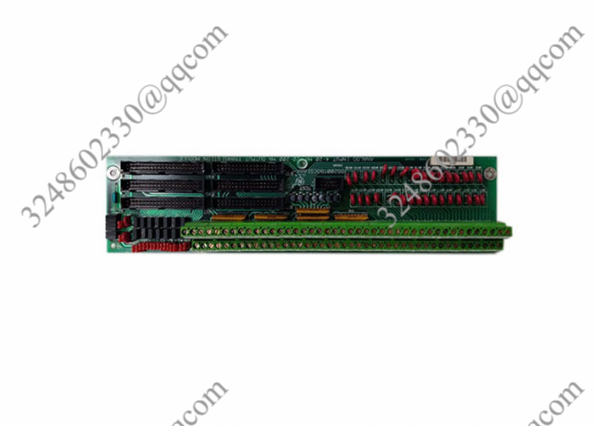

DS200TBQDG1AFF 扩展模拟终端板 具有2个端子排

【产品详情】

GE RST扩展模拟终端板DS200TBQDG1AFF具有2个端子排。每个块包含107个用于信号线的端子。GE RST扩展模拟终端板DS200TBQDG1AFF还包含多个测试点，2个跳线和3个34针连接器。GE RST扩展模拟终端板DS200TBQDG1AFF配备了3个测试点，合格的服务人员可以使用这些测试点来测试板的各个电路。测试点的id分别为TP1、TP2和TP3。在测试点之前，测试仪器必须符合测试目的，并且必须经过充分校准以测试电路的功能。连接在仪器上的探头必须与测试仪兼容，仪器上的所有设置必须适合任务。

如果测试仪器没有发现电路板的明确问题，您可以使用驱动器提供的诊断工具。磁盘上的键盘用于访问诊断工具。操作员也可以使用它来改变驱动器的行为。操作者可以停止或启动电动机。操作者还可以改变电机的方向，改变电机的转速。您会发现键盘上的键被标记为当您按下该键时所引起的动作。一些键使您能够访问用户界面，从而访问诊断工具。用户界面提供了一个操作菜单列表。

DS200TBQDG1AFF 扩展模拟终端板 具有2个端子排

【英文介绍】

The GE RST extended analog terminal board DS200TBQDG1AFF has two terminal blocks. Each block contains 107 terminals for the signal line. The GE RST Extended analog terminal board DS200TBQDG1AFF also contains multiple test points, 2 jumpers, and 3 34-pin connectors. The GE RST Extended Analog terminal Board DS200TBQDG1AFF is equipped with three test points that qualified service personnel can use to test individual circuits of the board. The ids of the test points are TP1, TP2, and TP3. Before the test point, the test instrument must meet the purpose of the test and must be fully calibrated to test the function of the circuit. The probe attached to the instrument must be compatible with the tester and all Settings on the instrument must be suitable for the task.

If the test instrument does not find a clear problem with the board, you can use the diagnostic tool provided with the drive. The keyboard on disk is used to access diagnostic tools. The operator can also use it to change the behavior of the drive. The operator can stop or start the motor. The operator can also change the direction of the motor and change the speed of the motor. You will find that the key on the keyboard is marked with the action that is caused when you press the key. Some keys enable you to access the user interface and thus the diagnostic tool. The user interface provides a list of action menus.

DS200TBQDG1AFF 扩展模拟终端板 具有2个端子排
