DS200TBQCG1AAA 模拟终端板 具有两个端子排

【产品详情】

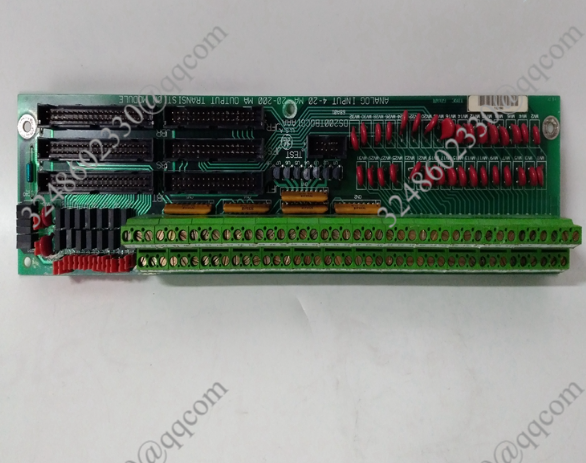

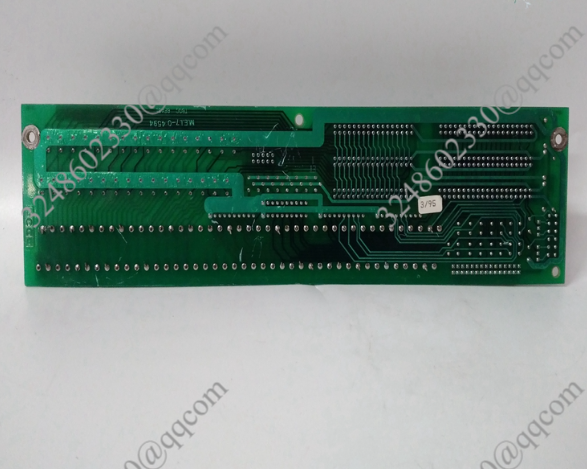

GE RST模拟终端板DS200TBQCG1AAA具有两个端子排。每个模块包含83个用于信号线的端子。GE RST模拟终端板DS200TBQCG1AAA还包含15个跳线，3个40针连接器和3个34针连接器。跳线使服务人员能够修改电路板的行为，以满足驱动器操作的确切要求。当您第一次安装电路板并从工厂收到电路板时，请参阅安装说明，其中包括对跳线的描述以及跳线的位置如何修改电路板的操作。当你收到单板时，跳线处于默认位置。默认值用于大多数情况，如果您只需要默认值，则不需要额外的步骤。

3针跳线很容易从默认位置移动到备用位置。用你的食指和拇指从默认位置移除跳线。然后将跳线对准备用引脚并按下跳线到位。例如，如果引脚1和2是3引脚跳线的默认位置，则将跳线插入引脚2和3以使用备用位置。

DS200TBQCG1AAA机组上的一些跳线仅供工厂使用，不能更改。通常情况下，替代职位仅用于工厂的质量控制测试目的。当更换电路板时，首先将更换板上的跳线移动到与故障板上的位置匹配。

DS200TBQCG1AAA 模拟终端板 具有两个端子排

【英文介绍】

The GE RST analog terminal board DS200TBQCG1AAA has two terminal blocks. Each module contains 83 terminals for signal lines. The GE RST Analog terminal board DS200TBQCG1AAA also contains 15 jumpers, three 40-pin connectors, and three 34-pin connectors. Jumpers enable service personnel to modify the behavior of the board to meet the exact requirements of driver operation. When you install the board for the first time and receive the board from the factory, refer to the installation instructions, which include a description of the jumpers and how the location of the jumpers modifies the operation of the board. When you receive the board, the jumper is in the default position. The default values are used in most cases, and if you only need the default values, no additional steps are required.

The 3-pin jumper is easily moved from the default position to the standby position. Use your index finger and thumb to remove the jumper from the default position. Then align the jumper with the spare pin and press the jumper into place. For example, if pins 1 and 2 are the default positions for 3-pin jumpers, insert the jumpers into pins 2 and 3 to use the alternate positions.

Some jumpers on the DS200TBQCG1AAA unit are for factory use only and cannot be changed. Typically, replacement positions are only used for quality control testing purposes at the plant. When replacing the board, first move the jumper on the replacement board to match the position on the faulty board.
