DS200SLCCG1AFG 通用电气Mark V高速电子通信卡

【产品详情】

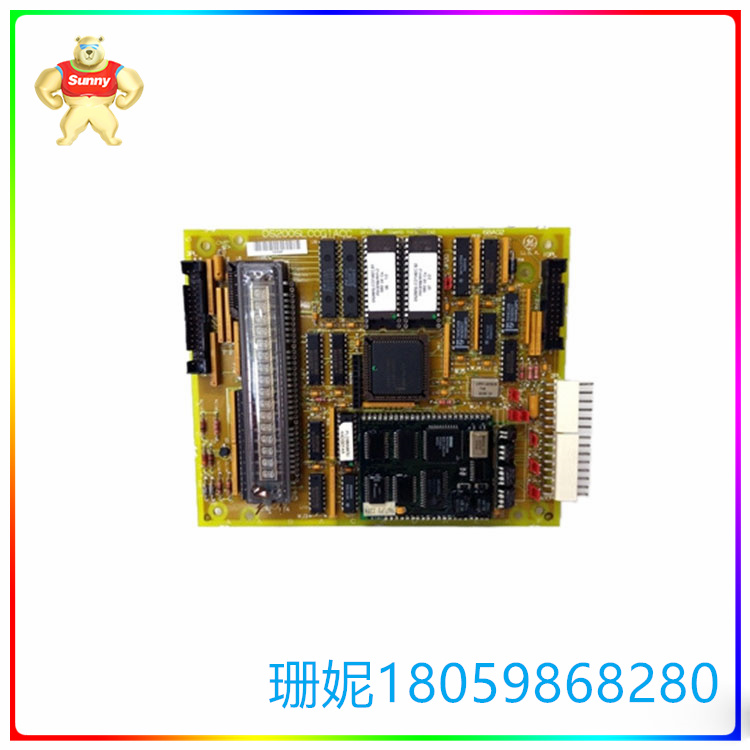

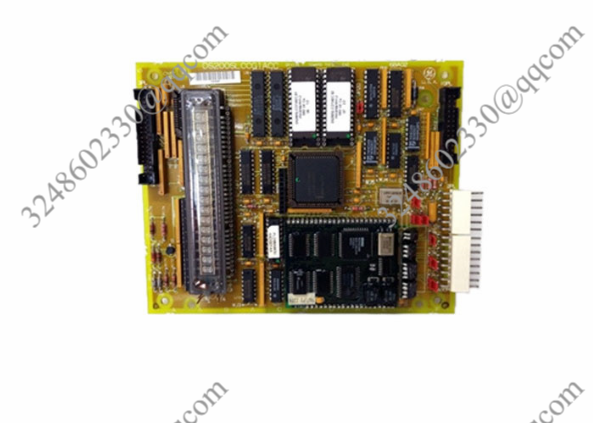

DS200SLCCG1AFG该板设计用于通用电气的Mark V涡轮控制系统，用于控制和管理工业气体和蒸汽涡轮系统。MK V控制系统可以设置为单工或TMR(三模冗余)系统。重要的是，客户知道DS200SLCC板通常不包括位于U6和U7 eprom中的软件，因为板发货时这些插座是空的。如果您不打算从旧板上移除eprom以移动到新板上，请订购带有eprom的替换板(DS215级别)。

DS200SLCCG1AFG板安装在位于SDCC板上的支架上，并通过KPPL连接器与位于该卡上的键盘接口。

DS200SLCCG1AFG有一个平行于一个边缘的16位字母数字显示器。有四个柱子位于靠近这个显示器的末端(ST1到ST4)，用于保护其玻璃尖端。这些柱子看起来像跳线，但不应该与位于板上其他地方的跳线混淆。可以修改跳线设置以改变RS-422 lan驱动程序或隔离lan电路。此外，J19跳线用于将晶体连接到处理器。其他跳线设置可以在相关手册和用户指南中的表中找到。

DS200SLCCG1AFG 通用电气Mark V高速电子通信卡

【英文介绍】

The DS200SLCCG1AFG Alternative LAN communication board is just one version of many available in axcontrol's inventory. The board is designed for use in GE's Mark V turbine control system, which is used to control and manage industrial gas and steam turbine systems. The MK V control system can be set up as a simplex or TMR(three-mode redundancy) system. It is important for customers to know that DS200SLCC boards generally do not include software located in the U6 and U7 EPROMs because these sockets are empty when the boards are shipped. If you do not plan to remove the eprom from the old board to move to the new board, order a replacement board with an eprom (DS215 level).

The DS200SLCCG1AFG board is mounted on a stand located on the SDCC board and interfaces with a keyboard located on the card via a KPPL connector.

The DS200SLCCG1AFG has a 16-bit alphanumeric display parallel to one edge. There are four columns located near the end of this display (ST1 to ST4) to protect its glass tips. These posts look like jumpers, but should not be confused with jumpers located elsewhere on the board. You can modify the jumper Settings to change the RS-422 lan driver or isolate the lan circuit. In addition, the J19 jumper is used to connect the crystal to the processor. Additional jumper Settings can be found in the tables in the relevant manuals and user guides.
