DS200SLCCG1ACC 局域网通信卡 非隔离通信电路

【产品详情】

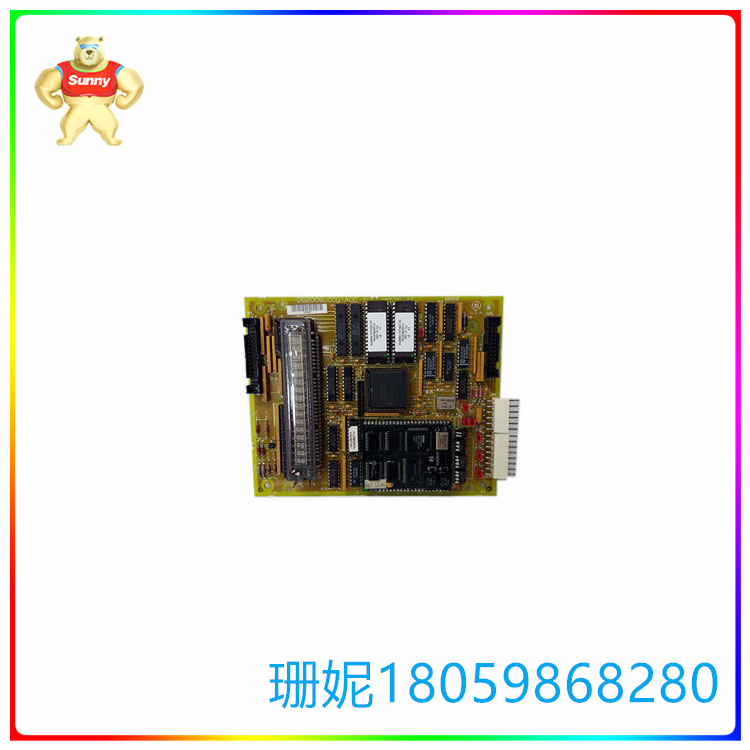

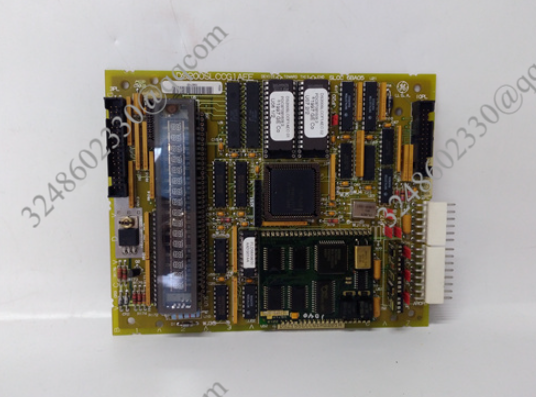

DS200SLCCG1ACC板是通用电气公司开发的局域网通信卡。这张卡是作为驱动板Mark V系列的成员制造的。该系列的卡片被开发用于安装在GE家族的许多驱动器和励磁器中。该单元专门为主机驱动器提供局域网通信所需的处理器。由于它是作为G1版本开发的，因此该卡包含了lan和ARCNET网络连接所需的电路。

安装DS200SLCCG1ACC板可为主机驱动器提供隔离和非隔离通信电路。集成的局域网控制处理器(LCP)是板上的关键处理点。LCP的程序存储器可在两个板载EPROM存储器模块中使用。使用该板的接口与板上双端口RAM一起执行。LCP和驱动器连接的驱动器控制板使用这个空间来通信信息。该板是完整的附加字母数字键盘。连接时，这16个位置显示提供用户访问系统控制设置和诊断。

所有的驱动板将由一个防静电塑料袋保护。在检查所有提供的存储和安装参数之前，不要开始设备安装。只有接受过处理驱动板(如DS200SLCCG1ACC)培训的人员才能处理该卡。请参阅设备手册和数据表，了解该局域网通信板的综合布线指南。最初，该设备由制造商通用电气提供技术支持。

DS200SLCCG1ACC 局域网通信卡 非隔离通信电路

【英文介绍】

DS200SLCCG1ACC board is a LAN communication card developed by General Electric Company. This card is manufactured as a member of the drive board Mark V Series. This series of cards was developed for installation in many drives and exciters in the GE family. This unit is dedicated to providing the host drive with the processor needed for LAN communication. Since it was developed as the G1 version, the card included the circuits needed for lan and ARCNET network connectivity.

The DS200SLCCG1ACC board is installed to provide isolated and non-isolated communication circuits for the host driver. The integrated local Area Network Control Processor (LCP) is the key processing point on the board. The program memory of the LCP can be used in two onboard EPROM memory modules. The interface using this board is executed with the two-port RAM on the board. The LCP and the drive control board connected to the drive use this space to communicate information. The board is complete with attached alphanumeric keyboard. When connected, these 16 location displays provide user access to system control Settings and diagnostics.

All drive boards will be protected by an anti-static plastic bag. Do not begin device installation until you have checked all provided storage and installation parameters. Only people trained in handling driver boards such as DS200SLCCG1ACC should handle the card. Please refer to the equipment manual and data sheet for integrated cabling guidelines for this LAN communication board. Initially, the device was supported by manufacturer General Electric.
