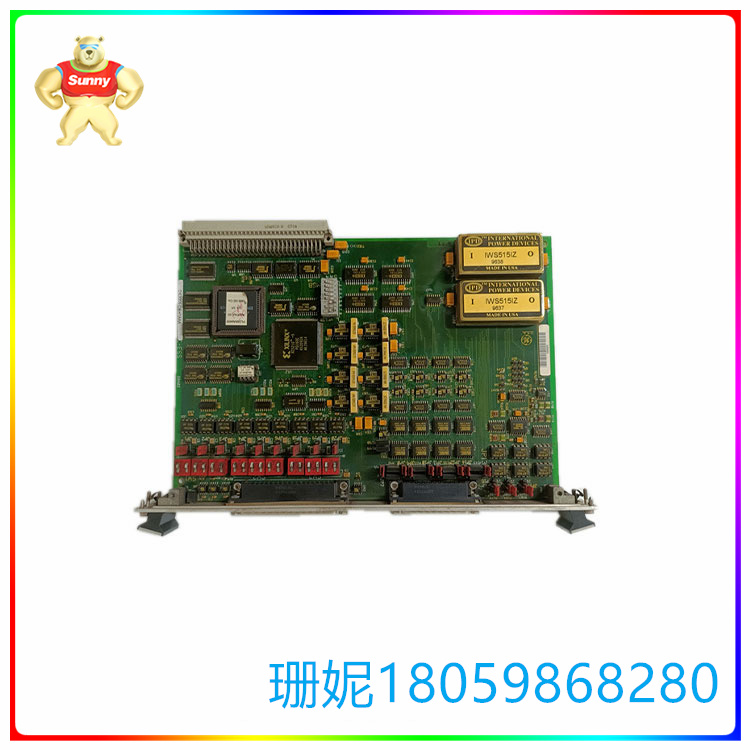

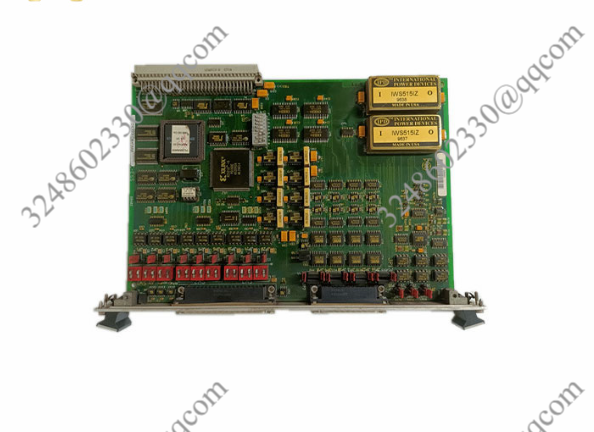

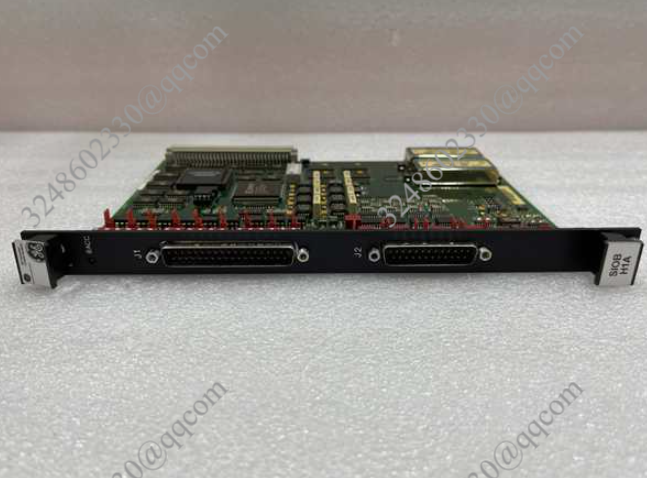

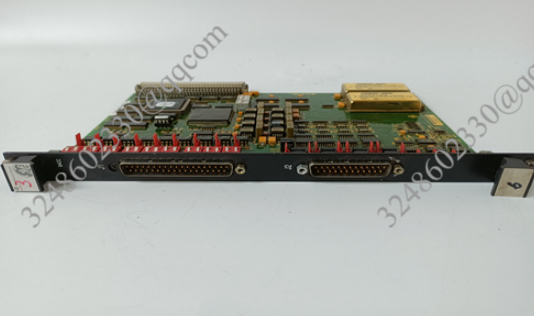

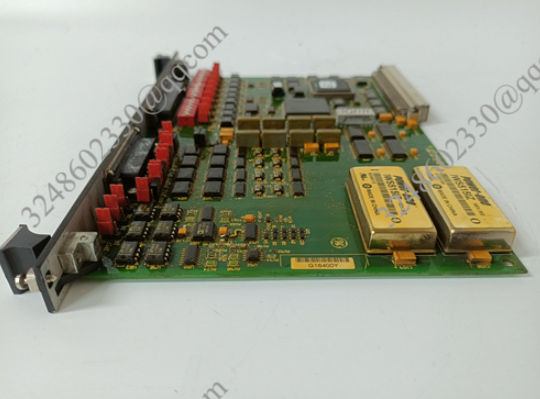

DS200SIOBH1AAA  I/O控制板 具有20个跳线和3个开关块

【产品详情】

GE I/O控制板DS200SIOBH1AAA具有20个跳线和3个开关块，每个块中有6个开关，总共18个开关。它还配备了一个LED和一个40针连接器。GE I/O控制板DS200SIOBH1AAA上的LED指示灯用于指示单板的处理情况，并在单板故障处理时提供第一步指示。当驱动器上电时，您可以直观地检查LED的状态并了解板的健康状况。如果您发现电路板不像您预期的那样工作，您可以使用驱动器上的故障排除工具来查看电路板是否不工作，或者驱动器中的其他组件是否导致问题。

为了解决单板故障，您可以通过控制面板启动驱动器上的故障处理工具。控制面板允许您使用键盘访问工具。界面是菜单驱动的，这意味着你可以用这些键来选择，也可以用这些键来滚动选择。其中一个菜单选择是启动故障排除工具。故障排除工具将测试驱动器中的所有组件，并提供诊断报告，您可以使用该报告确定错误所在的位置。

如果你决定更换电路板，你必须检查20个跳线和3组开关，并配置板，使跳线和开关设置在相同的位置。这将使新板的行为完全像有缺陷的板。

DS200SIOBH1AAA  I/O控制板 具有20个跳线和3个开关块

【英文介绍】

The GE I/O control board DS200SIOBH1AAA has 20 jumpers and 3 switch blocks with 6 switches in each block for a total of 18 switches. It also comes with an LED and a 40-pin connector. The LED indicator on the GE I/O control board DS200SIOBH1AAA indicates the board fault status and provides the first indicator when the board fault is rectified. When the drive is powered on, you can visually check the status of the LED and understand the health of the board. If you find that the board is not working as you expected, you can use the troubleshooting tool on the drive to see if the board is not working or if other components in the drive are causing the problem.

To resolve board failures, you can launch the troubleshooting tool on the drive through the control panel. The Control panel allows you to access tools using the keyboard. The interface is menu-driven, which means you can use these keys to select, and you can use these keys to scroll through the selection. One of the menu options is to launch the troubleshooting tool. The troubleshooting tool will test all the components in the drive and provide a diagnostic report that you can use to determine where the error is located.

If you decide to replace the board, you must check 20 jumpers and 3 sets of switches, and configure the board so that the jumpers and switches are set in the same position. This will make the new board behave exactly like the defective board.

DS200SIOBH1AAA  I/O控制板 具有20个跳线和3个开关块
