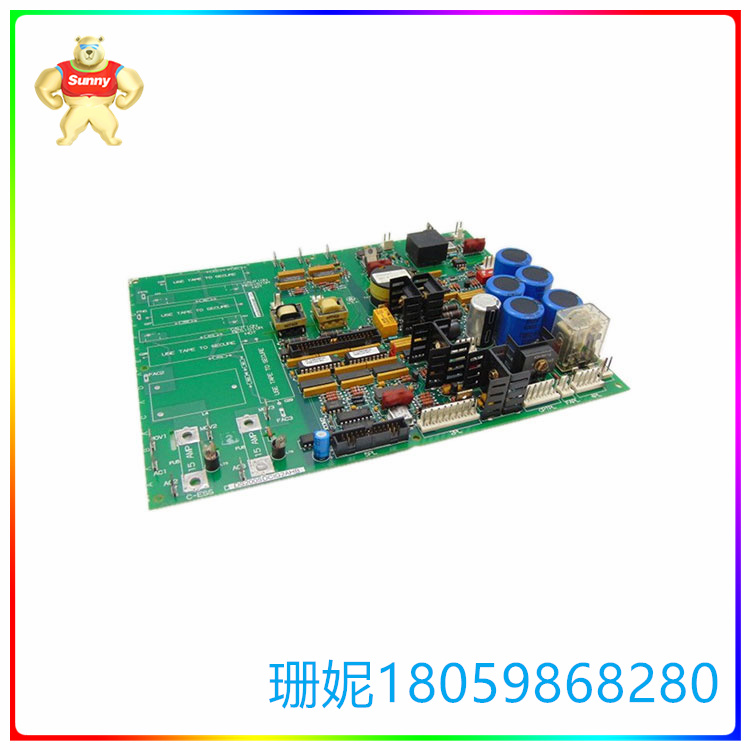

DS200SDCIG2AHB 直流电源和仪表板DS200SDCIG2AHB

【产品详情】

通用电气直流电源和仪表板DS200SDCIG2AHB作为DC2000型号驱动器的接口。DS200SDCIG2AHB容易被静电损坏。但是，您可以遵循一些一般规则来避免静电电荷造成的损坏。在安装单板之前，请将单板放在防静电包装中，并触摸未涂漆的金属表面，这些金属表面可能是驱动器或其他设备或结构。让它接触金属表面2秒，让静电从板上排出。

请勿将单板放在防静电包装外。只需将其直接放置在驱动器中，以减少静电积聚的机会。此外，保持板的外部边缘，永远不要触摸组件或焊料。

拆卸有缺陷的电路板需要一些必要的步骤，以防止触电、烧伤或安全隐患。在您接触驱动器内部的任何组件之前，请确保所有电流都从驱动器中移除。按照为您的站点建立的关闭程序，并使用电流测试仪验证所有电流已被移除。

打开驱动器上的门，进入印刷电路板，包括DS200SDCIG2AHB。您将注意到，一块板正在阻止对DS200SDCIG2AHB的访问。您可以拉下两个锁定机构以向前倾斜阻挡板并访问DS200SDCIG2AHB。拆卸单板前，请先断开所有线缆。

DS200SDCIG2AHB 直流电源和仪表板DS200SDCIG2AHB

【英文介绍】

The GE DC power supply and dashboard DS200SDCIG2AHB serve as the interface for the DC2000 model driver. DS200SDCIG2AHB is easily damaged by static electricity. However, there are some general rules you can follow to avoid damage caused by electrostatic charges. Before installing the board, place the board in an anti-static package and touch an unpainted metal surface, which may be a drive or other device or structure. Let it touch the metal surface for 2 seconds, allowing static electricity to escape from the plate.

Do not place the board outside the ESD package. Simply place it directly in the drive to reduce the chance of static buildup. Also, keep the outer edge of the board and never touch the components or solder.

Removing a defective circuit board requires a number of necessary steps to prevent electric shock, burns, or safety hazards. Before you touch any components inside the drive, make sure all current is removed from the drive. Follow the shutdown procedure established for your site and verify that all current has been removed using a current tester.

Open the door on the drive and enter the printed circuit board, including the DS200SDCIG2AHB. You will notice that a board is blocking access to the DS200SDCIG2AHB. You can pull down the two locking mechanisms to tilt the barrier forward and access the DS200SDCIG2AHB. Before removing the board, disconnect all cables.
