DS200SDCCG5AHD 驱动控制卡 具有垂直引脚连接器
【产品详情】

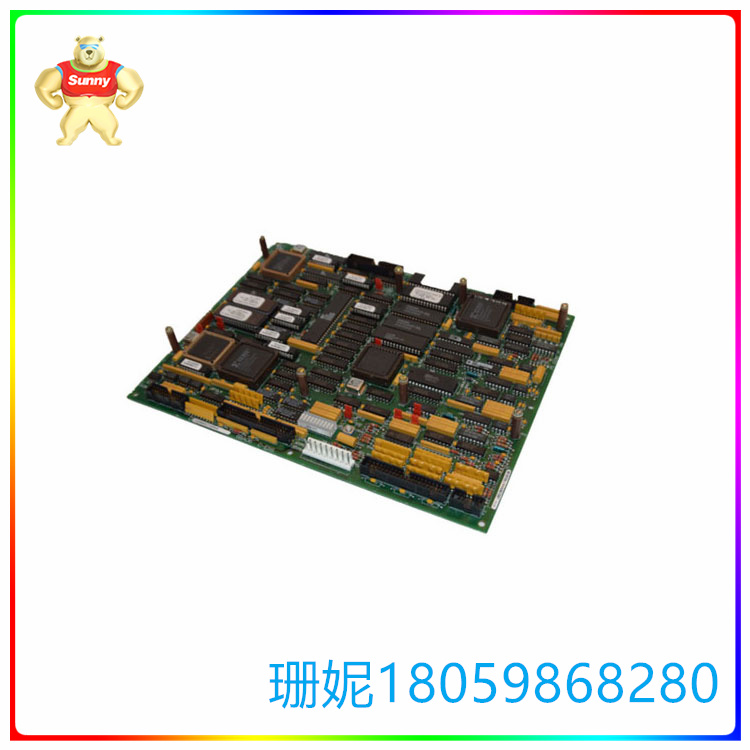

DS200SDCCG5AHD是用于某些Mark V Speedtronic应用的驱动控制卡。该单板没有生产G2版本,有G1、G3、G4、G5版本。请确保为您的应用订购正确的板。这块电路板被DS215SDCC电路板取代。重要的是要注意,由于DS215板上添加了组件,这些板不向后兼容。
DS200SDCCG5AHD包含驱动或励磁所需的主控制电路和软件。该板包括接口电路,使其能够与其他板连接和通信,并处理来自这些板的信号。该电路板包括许多先进的赛灵思芯片组件以及其他集成电路。这包括驱动控制处理器和电机控制处理器以及共电机处理器。
其他电路板组件包括多个电阻网络阵列、跳线开关、拨码开关、复位按钮以及一些电容器、电阻和二极管。该板还具有垂直引脚连接器以及几组支架,允许子板安装到SDCC以增加和扩展其功能。
DS200SDCCG5AHD带有GE标识和单板id号。在每个角落都钻孔,以便安装。有关正确处理和安装此组件的其他信息,请参阅OEM提供的原始文档,如手册和用户指南。
DS200SDCCG5AHD 驱动控制卡 具有垂直引脚连接器
【英文介绍】
The DS200SDCCG5AHD is a drive control card for some Mark V Speedtronic applications. The board version is not G2, but G1, G3, G4, and G5. Make sure to order the right board for your application. This board was replaced by the DS215SDCC board. It is important to note that due to the addition of components to the DS215 boards, these boards are not backward compatible.
The DS200SDCCG5AHD contains the master control circuit and software required to drive or excite. The board includes interface circuits that enable it to connect and communicate with other boards and process signals from those boards. The board includes many advanced Xilinx chip components as well as other integrated circuits. This includes drive control processors and motor control processors as well as common motor processors.
Other board components include multiple resistor network arrays, jumper switches, dip switches, reset buttons, and some capacitors, resistors, and diodes. The board also features vertical pin connectors as well as several sets of brackets that allow the daughter board to be mounted to the SDCC to increase and extend its functionality.
The DS200SDCCG5AHD contains the GE identifier and board id. Drill holes at each corner for installation. For additional information on the proper handling and installation of this component, please refer to the original documentation provided by the OEM, such as manuals and user guides.
